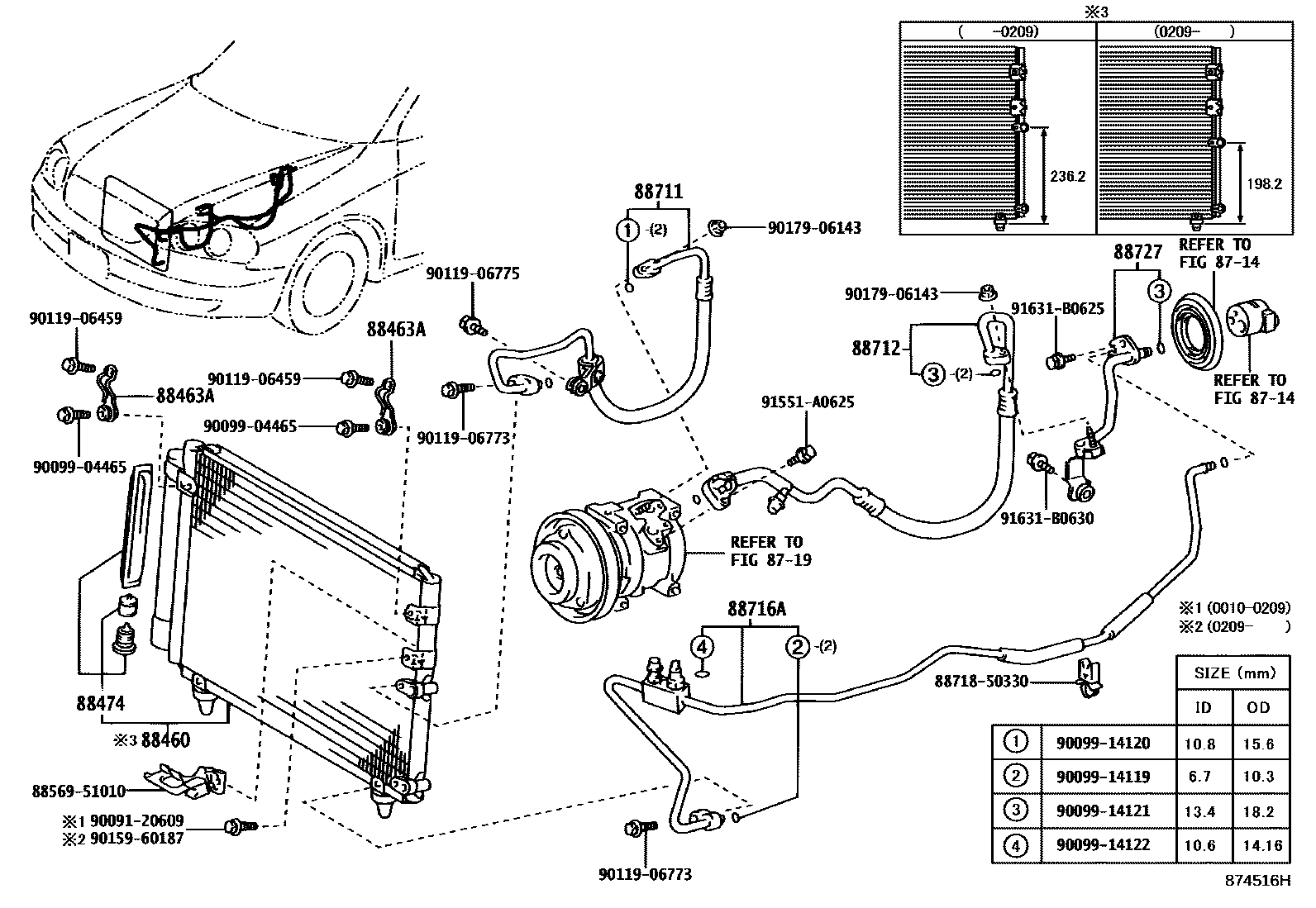

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714

8719

88460CONDENSER ASSY, COOLER

main88460-22590iGX11#,JZX11#200010-200209

main88460-22610iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200209

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-22030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

88474DRYER, COOLER

main88474-17010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200209

main88474-47010iGX11#,JZX11#200010-200209

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-22120iJZX110..GDGT,GDV,IRV200010-200209

main88703-22130iJZX110..GD,GDG,GDS,IRS200010-200209

main88703-22140iJZX115200010-200209

main88703-22150iGX110200010-200209

main88703-22160iGX115200010-200209

main88703-22180iJZX110..GD,GDG,GDS200209-200411

main88703-22190iGX110..GD,IR200209-200411

main88703-22200iJZX115200209-200411

main88703-22210iJZX110..GDV200209-200604

main88703-22220iGX115200209-200411

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-2A290iGX115..GD200010-200411

main88712-3A870iJZX110..GD,GDG,GDS200010-200411

main88712-3A880iJZX110..GDV200010-200604

main88712-3A890iGX110..SED200010-200411

main88712-3F010iJZX115200010-200112

main88712-51030iJZX115..GDG200112-200411

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-22010iJZX11#..(4FC,5F)..(GDG,GDV)200010-200411

main88706-22020iJZX110..GD,GDG,GDS,IRS200010-200411

main88706-22030iGX11#..SED200010-200411

88727TUBE, SUCTION, NO.2

main88707-51010iGX11#,JZX11#..SED200010-200411

sub88727-51020

sub88467-14070

sub88569-51040

sub90099-32140

8856951010CLAMP (FOR COOLER RELAY)

main88569-51010

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

9009120609

main90091-20609

9009904465

main90099-04465

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9011906459

main90119-06459

9011906773

main90119-06773

9011906775

main90119-06775

9015960187

main90159-60187

9017906143

main90179-06143

91551A0625

main91551-A0625

91631B0625

main91631-B0625

91631B0630

main91631-B0630

25 parts on this diagram · 4 diagrams in section
