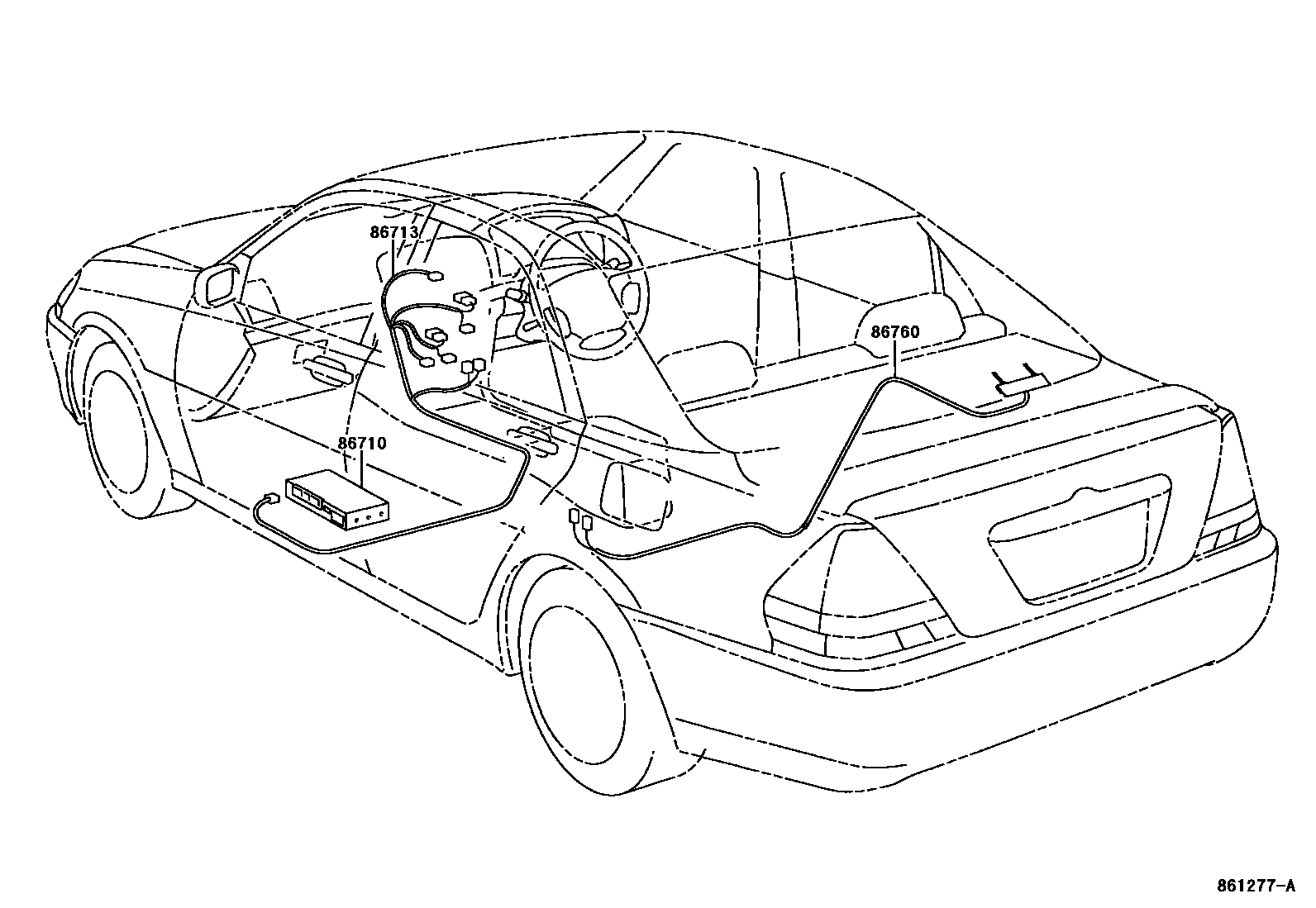

TELEPHONE & MAYDAY

86710COMPUTER ASSY, TELEPHONE

main86710-50120iGX11#,JZX11#200010-200011

sub86070-50180

86713WIRE, TELEPHONE COMPUTER

main86713-48020iGX11#,JZX11#200010-200102

sub86713-48021

86760ANTENNA ASSY, TELEPHONE

main86760-46010iGX11#,JZX11#..WG200312-200706

main86760-50060iJZX110..SED;GX11#,JZX115..GD,GDG200210

main86760-50070iGX11#,JZX11#..WG200204-200706

3 parts on this diagram · 1 diagram in section
