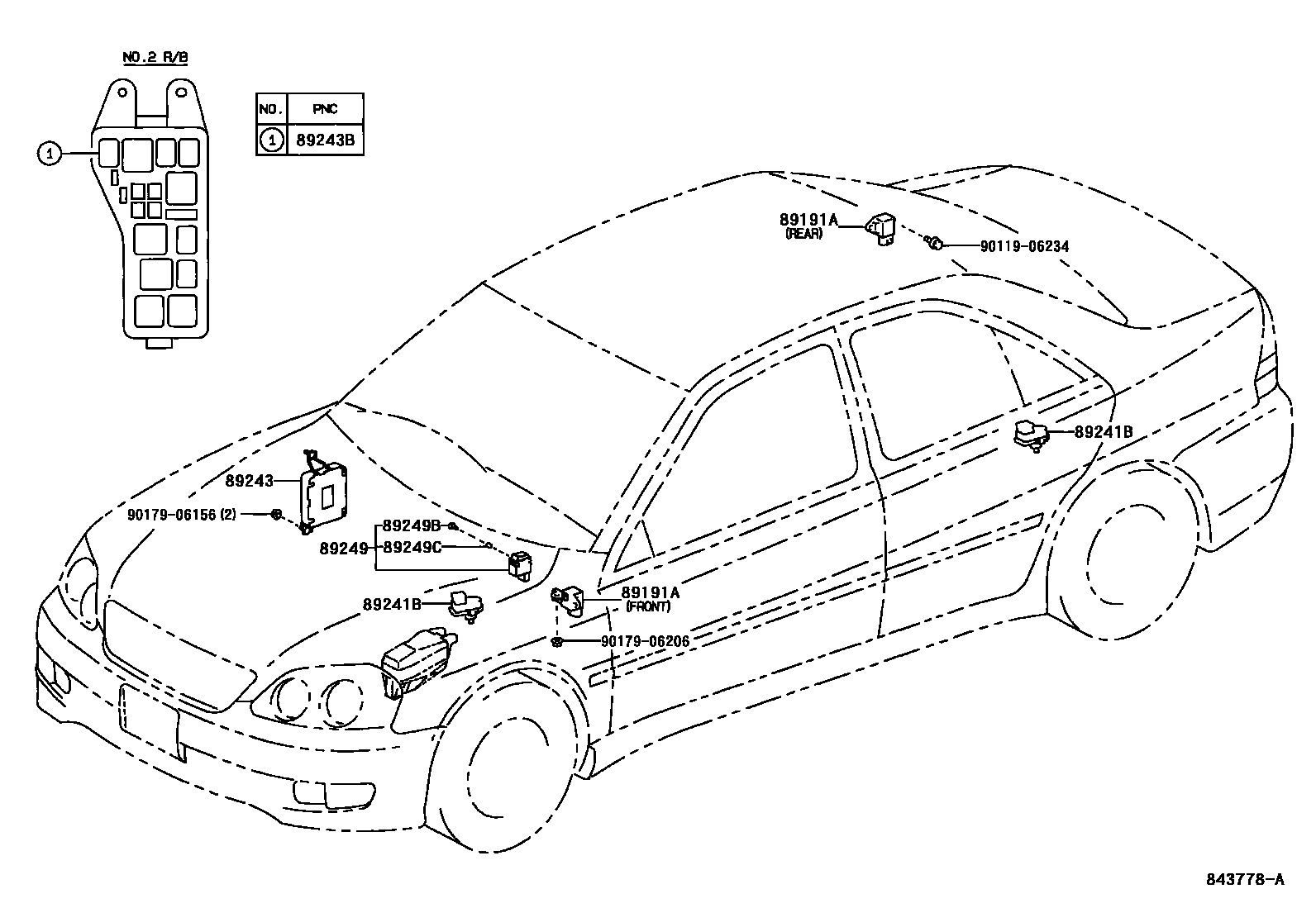

ELECTRONIC MODULATED SUSPENSION

89191ASENSOR, ACCELERATION

main89191-22010iJZX110..GDG200010-200210

main89191-30020iJZX110..GDG200010-200210

sub89191-22020

89241BACTUATOR, ABSORBER CONTROL

main89241-30040×4iJZX110..GDG200010-200210

sub89241-30041

89243COMPUTER, ABSORBER CONTROL

main89243-22130iJZX110..GDG200010-200210

89243BRELAY, ABSORBER CONTROL

main90987-02012iJZX110..GDG200010-200210

89249SWITCH, ABSORBER CONTROL

main89249-30050iJZX110..GDG200010-200210

sub89249-30060

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10820iJZX110..GDG200010-200210

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10670iJZX110..GDG200010-200210

9011906234

main90119-06234

9017906156

main90179-06156

9017906206

main90179-06206

10 parts on this diagram · 1 diagram in section
