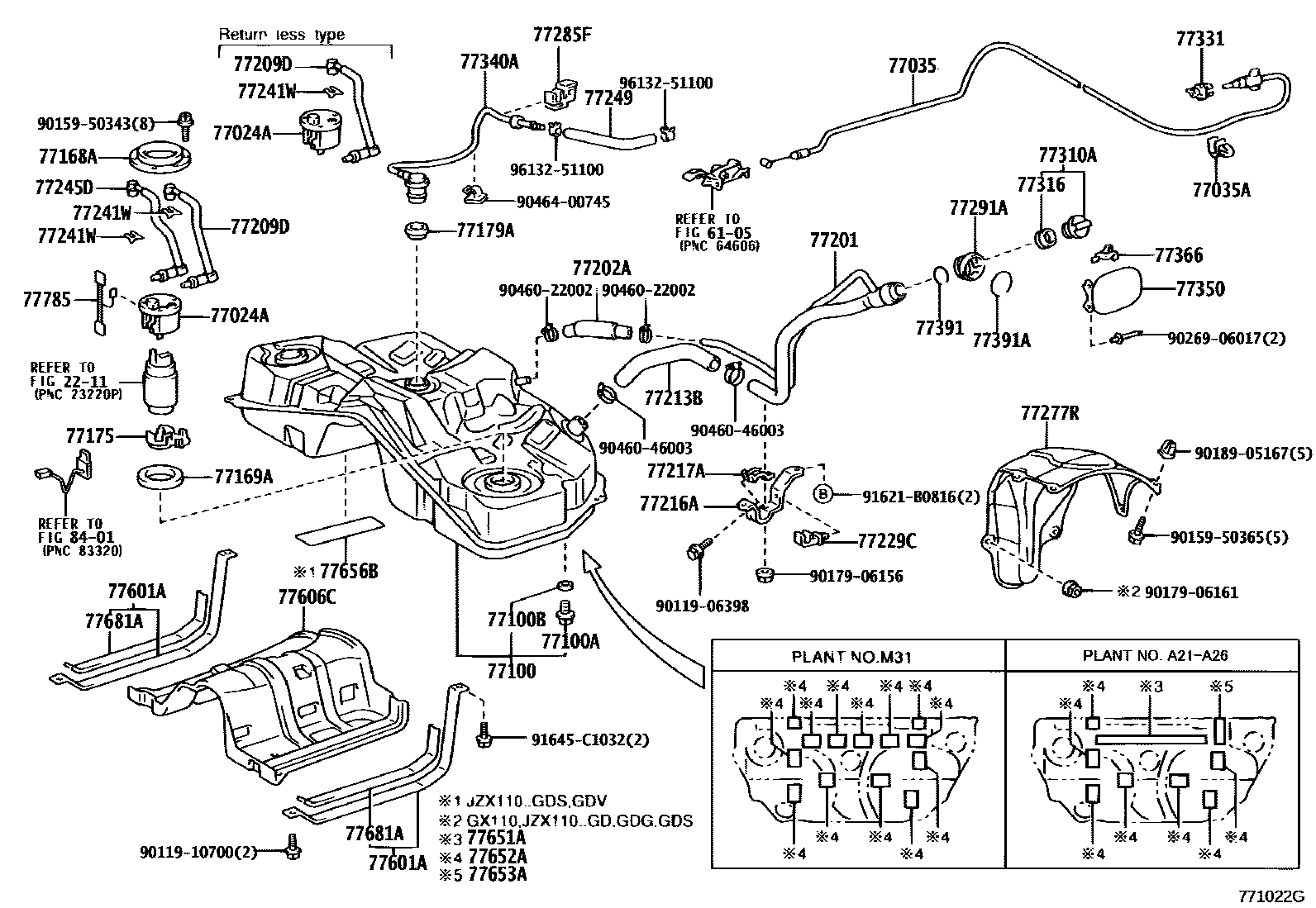

FUEL TANK & TUBE

0001 1����� ��� 0002 1����� ��� 0003 1����� �����

2211

6105

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-22010iJZX110..IRS200010-200210

main77024-30030iJZX115200201

main77024-30060iJZX110..GDGT,IRV200010-200604

main77024-30070iGX11#..GD,IR200010

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-22230iGX11#,JZX11#..SED200010-200210

main77035-22250iGX11#,JZX11#..WG200201

77035ACLAMP (FOR FUEL LID LOCK CONTROL CABLE)

main82711-1E260iGX11#,JZX11#..SED200010-200210

main90469-01003iGX11#,JZX11#..SED200010-200210

77100TANK ASSY, FUEL

main77001-30520iJZX110200010-200210

sub77001-30551

main77001-30521iJZX110..WG200210-200512

sub77001-30551

main77001-30522iJZX110200512-200706

main77001-30530iGX11#,JZX115200010-200210

sub77001-30531

main77001-30531iGX11#,JZX115..WG200210-200512

sub77001-30532

main77001-30532iGX11#,JZX115200512-200706

main77001-30551iJZX110..SED200210-200411

77100APLUG(FOR FUEL TANK)

main90105-12116iGX11#,JZX11#..WG200010-200210

77100BGASKET(FOR FUEL TANK)

main90430-12245iGX11#,JZX11#200010-200210

77168APLATE, FUEL TANK VENT TUBE SET

main77168-33050iGX11#,JZX11#..SED200010-200210

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iGX11#,JZX11#..SED200010-200210

77175SUPPORT, FUEL SUCTION, NO.2

main77175-30030iJZX110..GDS,GDV200010

main77175-30050iGX11#..SED200010

main77175-30060iJZX115200010

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iGX11#,JZX11#..WG200010-200210

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22360iGX11#,JZX11#..WG200010-200210

main77201-30400iGX11#,JZX11#..SED200010-200210

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77019-51010iJZX110..GDS,GDV;GX11#,JZX115..SED200010-200210

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-30080iGX11#..GD;JZX110..GDS200010

main77209-30090iJZX110..GDGT,IRV200010-200604

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-22090iGX110..GDS200010

main77213-30170iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

sub77213-22090

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-51010iGX110..GDS200010

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77229CCLAMP, BREATHER TUBE

main77229-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77241WCLIP, TUBE JOINT

main77241-33011iJZX11#..SED200010-200501

77245DTUBE, FUEL TANK RETURN VENT

main77245-30150iJZX11#..GD,GDG,GDS200010-200210

main77245-30160iJZX110..GDGT,GDV200010-200210

77249HOSE, FUEL EMISSION

main77249-30030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-30020iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77285FCLAMP, FUEL TUBE, NO.1

main77285-30150iGX11#,JZX11#..SED200010-200210

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-30070iGX11#,JZX11#..SED200010

77310ACAP ASSY, FUEL TANK

main77310-48010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77316GASKET, FUEL TANK CAP

main77316-16010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77331BRACKET, FUEL LID LOCK CONTROL

main77331-53010iGX11#,JZX11#..SED200010-200210

main77377-12050iGX11#,JZX11#..WG200201

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-51010iGX11#,JZX11#..SED200010-200210

77350LID ASSY, FUEL FILLER OPENING

main77350-22180iGX11#,JZX11#..SED200010-200411

main77350-22200iGX11#,JZX11#..WG200201-200706

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30070iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77391RING, FUEL INLET BOX

main77391-12020iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77391ARING, FUEL INLET BOX

main77391-30030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main77601-53010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

77606CPROTECTOR, FUEL TANK, NO.2

main77606-51010iGX11#,JZX11#..SED200010-200210

77651ACUSHION, FUEL TANK, NO.1

main77651-30100iGX11#,JZX11#..SED200010-200210

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iGX115,JZX110;GX110,JZX115..GD,GDG,IRS200010

main77652-12100iGX11#200010-200411

77653ACUSHION, FUEL TANK, NO.3

main77653-51010iGX11#,JZX11#..SED200010-200210

main77653-51010iGX115,JZX11#..WG200010

77656BCUSHION, FUEL TANK, NO.6

main77656-53010iGX110,JZX110..WG200010-200210

77681ASEAT, FUEL TANK BAND

main77681-32060iGX11#,JZX11#..SED200010

77785HARNESS, FUEL PUMP

main77785-52020iGX11#,JZX11#..SED200010-200210

8401

9011906398

main90119-06398

9011910700

main90119-10700

9015950343

main90159-50343

9015950365

main90159-50365

9017906156

main90179-06156

9017906161

main90179-06161

9018905167

main90189-05167

9026906017

main90269-06017

9046022002

main90460-22002

9046046003

main90460-46003

9046400745

main90464-00745

91621B0816

main91621-B0816

91645C1032

main91645-C1032

9613251100

main96132-51100

56 parts on this diagram · 3 diagrams in section
