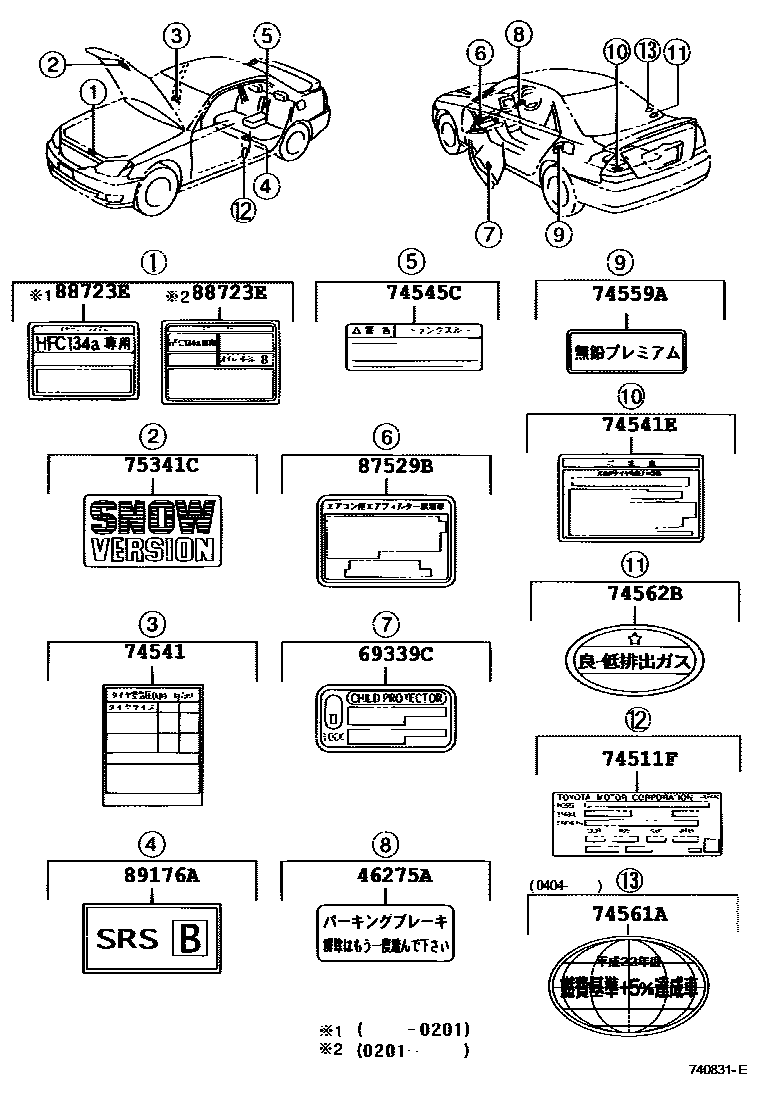

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1

main46275-22010-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

WHITE,TRIM0#,1#

main46275-22010-A0iGX11#,JZX11#..WG200201-200706

WHITE,TRIM1#

main46275-22010-B0iGX11#,JZX11#..WG200201-200706

GRAY,TRIM2#

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-12010iGX11#,JZX11#..SED200010-200604

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iGX11#,JZX11#..WG200210

74541PLATE, TIRE PRESSURE CAUTION

main42661-22860iJZX110..GDGT200010-200210

main42661-22870iJZX110..GDGT200010-200210

main42661-22880iJZX110..GDG200010-200210

main42661-22890iJZX110..GDG200010-200210

main42661-2A020iJZX110..GD200010-200305

main42661-2A021iJZX110..GD200305

main42661-2A030iJZX110..GDV,IRV200010-200604

main42661-2A040iJZX110..GDS200010-200210

main42661-2A050iGX11#,JZX110..GD200010-200305

main42661-2A060iJZX115..GDG200201-200211

main42661-2A070iGX110,JZX110..IR,IRS200201

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-30010iJZX110..GD,GDG,GDS,IRS;GX11#,JZX115..GD,GDG,IR,IRS200010

74545CLABEL, LUGGAGE DOOR

main74545-22010iGX11#,JZX11#..SED200010-200210

74559APLATE, FUEL CAUTION

main74579-24010iJZX11#200010

74561ALABEL, FUEL CONSUMPTION INFORMATION

main74561-52020iJZX110..IRS200404-200411

74562BLABEL, EMISSION INFORMATION

main74562-40040iGX11#,JZX11#..GD,GDG,GDS200010-200210

75341CPLATE, HOOD NAME

main75341-20060iGX11#,JZX11#..SED200010-200406

87529BLABEL, A/C FILTER INFORMATION

main87529-50020iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

88723ELABEL, COOLER SERVICE CAUTION

main88723-42050iGX11#,JZX11#200010-200201

sub88733-51010

main88733-22040iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200201

sub88733-37040

89176ALABEL, AIRBAG DEPLOYMENT INFORMATION

main89176-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

13 parts on this diagram · 2 diagrams in section
