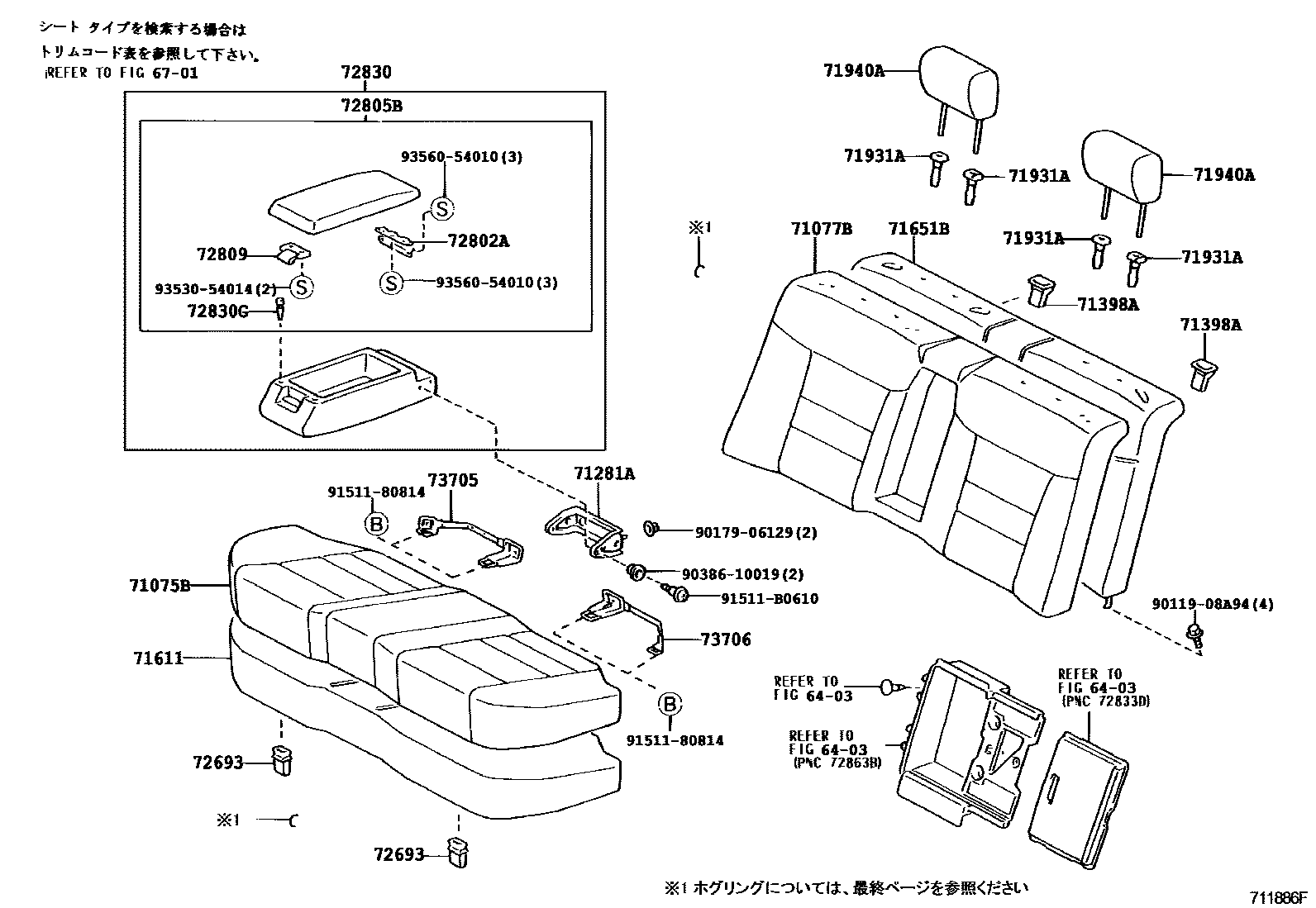

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1�������

6403

6701

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-22670-A0iGX11#,JZX110..GD200305-200404

sub71075-22B20

main71065-22670-B0iGX11#,JZX110..GD200210-200309

sub71075-22B20

main71075-2A010-A0iJZX11#..GDG,GDGT200010-200210

main71075-2A020-A0iGX11#,JZX110..GD200404-200410

sub71075-2A021

main71075-2A020-B0iGX11#,JZX110..GD200404-200410

sub71075-2A021

main71075-2A030-A0iGX11#,JZX110..GD200010-200210

sub71075-2A031

main71075-2A030-B0iGX11#,JZX110..GD200010-200210

sub71075-2A031

main71075-2A040-C0iJZX110..GDS,GDV200210-200411

main71075-2A050-C0iGX110,JZX110..GDS,GDV200210-200411

sub71075-2A051

main71075-2A070-C0iJZX11#..WG200201-200706

main71075-2A080-B0iGX11#,JZX11#..WG200201-200706

main71075-2A080-C0iGX11#,JZX11#..WG200201-200706

main71075-2A090-A0iGX11#,JZX110..GD200210-200411

main71075-2A090-B0iGX11#,JZX110..GD200210-200411

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-2A860-A0iJZX11#..GDG,GDGT200010-200210

main71077-2A860-A1iJZX11#..GDG200210-200411

main71077-2A870-A0iJZX11#..GDG,GDGT200010-200210

sub71077-2A871

main71077-2A870-A1iJZX11#..GDG200210-200411

sub71077-2A871

main71077-2A870-B0iJZX11#..GDG,GDGT200010-200210

sub71077-2A871

main71077-2A870-B1iJZX11#..GDG200210-200411

sub71077-2A871

main71077-2A880-A0iGX11#,JZX110..GD200010-200210

sub71077-2A881

main71077-2A880-B0iGX11#,JZX110..GD200010-200210

sub71077-2A881

main71077-2A890-C0iJZX110..GDS,GDV200010-200210

main71077-2A890-C1iJZX110..GDS,GDV200210-200411

main71077-2C010-C0iJZX110..GDS,GDV200010-200210

sub71077-2C011

main71077-2C010-C1iGX110,JZX110..GDS,GDV200210-200411

sub71077-2C011

main71077-2C050-A0iGX11#,JZX110..GD200305-200404

sub71077-22C00

main71077-2C050-B0iGX11#,JZX110..GD200305-200404

sub71077-22C00

main71077-2C060-A1iGX11#,JZX110..GD200210-200411

main71077-2C060-B1iGX11#,JZX110..GD200210-200411

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-22090iGX11#,JZX11#..SED200210

71398AHOLDER, REAR SEATBACK

main71398-30010×2iGX11#,JZX11#..SED200210

71611PAD, REAR SEAT CUSHION

main71503-22100iGX11#,JZX11#..GD,GDG200210

main71503-22110iJZX110..GDS,GDV200010-200210

main71503-22120iGX11#,JZX11#..WG200201-200207

main71503-22121iJZX110..IRV200207-200604

main71503-22130iGX110,JZX110..GDS,GDV200210

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-22480iGX11#,JZX110..GD200010-200210

main71507-22490iJZX110..GDS,GDV200210

main71507-22500iJZX11#..GDG200210

main71507-22520iGX110,JZX110..GDS,GDV200210

71931ASUPPORT, REAR SEAT HEADREST

main71956-47010-A0×2iJZX11#..GDG200210-200411

sub71956-02040

main71956-47010-B3×2iJZX11#..GDG200210-200411

sub71956-02040

main71970-47010-A0iJZX11#..GDG,GDGT200010-200210

sub71970-02040

main71970-47010-B3iJZX11#..GDG,GDGT200010-200210

sub71970-02040

71940AHEADREST ASSY, REAR SEAT

main71940-22540-A0iJZX11#..GDG,GDGT200010-200210

main71940-22550-A0iGX11#,JZX110..GD200404-200410

sub71940-22551

main71940-22550-B0iJZX11#..GDG,GDGT200010-200210

MEDIUM CHARCOAL,TRIM1#

sub71940-22551

72693HOOK, REAR SEAT CUSHION LOCK

main72693-30050×2iGX11#,JZX11#..SED200010-200210

72802AHINGE SUB-ASSY, ARMREST CONSOLE

main72802-50020iJZX11#..GDG,GDGT200010-200210

72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST

main72805-22100-A0iJZX11#..GDG200210-200411

main72805-22110-A0iJZX11#..GDG200210-200411

IVORY,TRIM0#

main72805-22110-B0iJZX11#..GDG200210-200411

MEDIUM CHARCOAL,TRIM1#

72809LOCK SUB-ASSY, CENTER ARMREST

main72809-50020-A2iJZX11#..GDG,GDGT200010-200210

IVORY,TRIM0#

main72809-50020-B8iGX11#,JZX110..GD200404-200410

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-22650-A0iJZX11#..GDG200210-200411

main72830-22660-A0iGX11#,JZX110..GD200404-200410

sub72830-22661

main72830-22660-B0iJZX11#..GDG,GDGT200010-200210

sub72830-22661

main72830-22670-A0iGX11#,JZX110..GD200010-200210

main72830-22670-B0iGX11#,JZX110..GD200010-200210

main72830-22680-C0iJZX110..GDS,GDV200106-200210

main72830-22690-C0iGX110,JZX110..GDS,GDV200210-200411

main72830-22710-C1iJZX11#..WG200201-200706

main72830-22720-B1iJZX11#..WG200201-200706

main72830-22720-C1iJZX11#..WG200201-200706

main72830-22730-B1iGX11#..IR200201-200706

sub72830-22731

main72830-22730-C1iGX11#..IR200201-200706

sub72830-22731

main72830-22740-C1iJZX110..IRS200201-200501

main72830-22750-A0iGX11#,JZX110..GD200108-200209

main72830-22750-B0iGX11#,JZX110..GD200305-200404

main72830-22760-A0iGX11#,JZX110..GD200210-200411

main72830-22760-B0iGX11#,JZX110..GD200210-200411

72830GCUSHION

main90541-03022-C0×2iJZX11#..GDG,GDGT200010-200210

BLACK,TRIM0#,1#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-22010iGX11#,JZX11#..SED200010-200210

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-22010iGX11#,JZX11#..SED200010-200210

9011908A94

main90119-08A94

9017906129

main90179-06129

9038610019

main90386-10019

9151180814

main91511-80814

91511B0610

main91511-B0610

9353054014

main93530-54014

9356054010

main93560-54010

25 parts on this diagram · 3 diagrams in section
