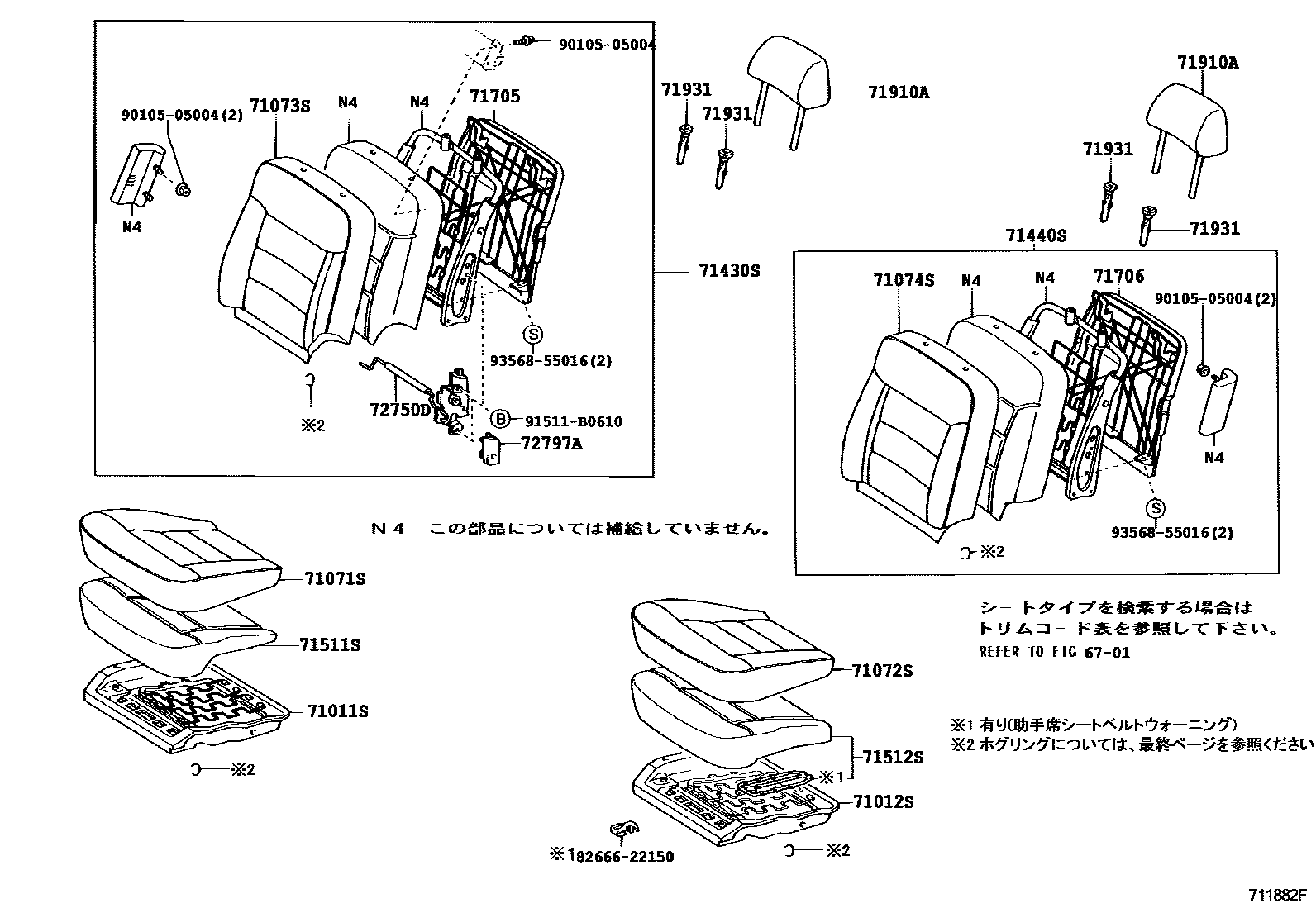

FRONT SEAT & SEAT TRACK

0001 1��(�����������) 0002 1��(�����������) 0003 1������-� 0004 1���-�-� 0005 1�������

6701

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-22470iGX11#,JZX11#..SED200010-200604

main71610-22470iGX11#200501

main71610-22480iGX115..GD200010-200501

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71620-22220iGX11#,JZX11#..SED200010-200604

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2C270-A0iJZX11#..GDG200010-200411

main71071-2C280-A0iGX11#,JZX110..GD200404-200410

sub71071-2C281

main71071-2C280-A0iJZX11#..GDG,GDGT200010-200411

sub71071-2C281

main71071-2C280-B0iJZX11#..GDG200010-200411

sub71071-2C281

main71071-2C280-B0iGX11#,JZX110..GD200404-200410

sub71071-2C281

main71071-2C290-A0iGX11#,JZX110..GD200010-200210

sub71071-2C291

main71071-2C290-B0iGX11#,JZX110..GD200010-200210

sub71071-2C291

main71071-2C300-C0iJZX110..GDS,GDV200106-200411

main71071-2C300-C0iJZX11#..WG200201-200706

main71071-2C310-C0iJZX110..GDS,GDV200010-200411

sub71071-2C311

main71071-2C320-A0iGX115..GD200010-200210

main71071-2C320-B0iGX115..GD200010-200210

main71071-2C350-B0iJZX11#..WG200201-200706

sub71071-2C351

main71071-2C350-C0iJZX11#..WG200201-200706

sub71071-2C351

main71071-2C350-C0iGX11#200501

sub71071-2C351

main71071-2C360-B0iGX11#..IR200201-200706

sub71071-2C361

main71071-2C360-C0iJZX11#..WG200201-200706

sub71071-2C361

main71071-2C370-A0iGX11#,JZX110..GD200108-200209

sub71071-22C20

main71071-2C370-A0iGX11#,JZX110..GD200305-200404

sub71071-22C20

main71071-2C370-A0iGX11#,JZX110..GD200210-200309

sub71071-22C20

main71071-2C370-B0iGX11#,JZX110..GD200108-200309

sub71071-22C20

main71071-2C370-B0iGX11#,JZX110..GD200305-200404

sub71071-22C20

main71071-2C380-A0iGX11#,JZX110..GD200210-200411

main71071-2C380-B0iGX11#,JZX110..GD200210-200411

main71071-2C390-A1iGX115..GD200210-200411

main71071-2C390-B1iGX115..GD200210-200411

main71071-2C400-C1iGX110,JZX110..GDS200210-200411

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2A570-A0iJZX11#..GDG200010-200411

main71072-2A580-A0iGX11#,JZX110..GD200404-200410

sub71072-2A581

main71072-2A580-A0iJZX11#..GDG,GDGT200010-200411

sub71072-2A581

main71072-2A580-B0iJZX11#..GDG200010-200411

sub71072-2A581

main71072-2A580-B0iGX11#,JZX110..GD200404-200410

sub71072-2A581

main71072-2A590-A0iGX11#,JZX110..GD200010-200210

sub71072-2A591

main71072-2A590-B0iGX11#,JZX110..GD200010-200210

sub71072-2A591

main71072-2A600-C0iJZX11#..WG200201-200706

main71072-2A600-C0iJZX110..GDS,GDV200106-200411

main71072-2A610-C0iJZX110..GDS,GDV200010-200411

sub71072-2A611

main71072-2A630-B0iGX11#,JZX11#..WG200201-200706

main71072-2A630-C0iGX11#,JZX11#..WG200201-200706

main71072-2A640-A0iGX11#,JZX110..GD200108-200209

sub71072-22C20

main71072-2A640-A0iGX11#,JZX110..GD200210-200309

sub71072-22C20

main71072-2A640-A0iGX11#,JZX110..GD200305-200404

sub71072-22C20

main71072-2A640-B0iGX11#,JZX110..GD200305-200404

sub71072-22C20

main71072-2A640-B0iGX11#,JZX110..GD200108-200309

sub71072-22C20

main71072-2A650-A0iGX11#,JZX110..GD200210-200411

main71072-2A650-B0iGX11#,JZX110..GD200210-200411

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-22010-A0iGX11#,JZX110..GD200210-200309

main71027-22010-A0iGX11#,JZX110..GD200108-200209

main71027-22010-A0iGX11#,JZX110..GD200305-200404

main71027-22010-B0iGX11#,JZX110..GD200108-200309

main71027-22010-B0iGX11#,JZX110..GD200305-200404

main71027-22020-A0iGX11#,JZX110..GD200108-200209

main71027-22020-A0iGX11#,JZX110..GD200305-200404

main71027-22020-A0iGX11#,JZX110..GD200210-200309

main71027-22020-B0iGX11#,JZX110..GD200305-200404

main71027-22020-B0iGX11#,JZX110..GD200108-200309

main71073-2C590-A0iJZX11#..GDG,GDGT200010-200411

main71073-2C600-A0iJZX11#..GDG200010-200411

main71073-2C610-A0iJZX11#..GDG,GDGT200010-200411

sub71073-2C611

main71073-2C610-A0iGX11#,JZX110..GD200404-200410

sub71073-2C611

main71073-2C610-B0iJZX11#..GDG200010-200411

sub71073-2C611

main71073-2C610-B0iGX11#,JZX110..GD200404-200410

sub71073-2C611

main71073-2C620-A0iGX11#,JZX110..GD200404-200410

sub71073-2C621

main71073-2C620-A0iJZX11#..GDG200010-200411

sub71073-2C621

main71073-2C620-B0iGX11#,JZX110..GD200404-200410

sub71073-2C621

main71073-2C620-B0iJZX11#..GDG200010-200411

sub71073-2C621

main71073-2C630-A0iGX11#,JZX110..GD200010-200210

sub71073-2C631

main71073-2C630-B0iGX11#,JZX110..GD200010-200210

sub71073-2C631

main71073-2C640-A0iGX11#,JZX110..GD200010-200210

main71073-2C640-B0iGX11#,JZX110..GD200010-200210

main71073-2C650-C0iJZX11#..WG200201-200706

main71073-2C650-C0iJZX110..GDS,GDV200106-200411

main71073-2C660-C0iJZX11#..WG200201-200706

main71073-2C660-C0iJZX110..GDS,GDV200106-200411

main71073-2C670-C0iJZX110..GDS,GDV200010-200411

sub71073-2C671

main71073-2C680-C0iGX110..GDS200010-200411

sub71073-2C681

main71073-2C680-C0iJZX110..GDS,GDV200210-200411

sub71073-2C681

main71073-2C710-B0iGX11#,JZX11#..WG200201-200706

sub71073-2C711

main71073-2C710-C0iGX11#,JZX11#..WG200201-200706

sub71073-2C711

main71073-2C720-B0iGX11#,JZX11#..WG200201-200706

main71073-2C720-C0iGX11#,JZX11#..WG200201-200706

main71073-2C730-A0iGX11#,JZX110..GD200210-200411

main71073-2C730-B0iGX11#,JZX110..GD200210-200411

main71073-2C740-A0iGX11#,JZX110..GD200210-200411

main71073-2C740-B0iGX11#,JZX110..GD200210-200411

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main70169-22010-A0iGX11#,JZX110..GD200305-200404

main70169-22010-A0iGX11#,JZX110..GD200108-200209

main70169-22010-A0iGX11#,JZX110..GD200210-200309

main70169-22010-B0iGX11#,JZX110..GD200108-200309

main70169-22010-B0iGX11#,JZX110..GD200305-200404

main70169-22020-A0iGX11#,JZX110..GD200305-200404

main70169-22020-A0iGX11#,JZX110..GD200108-200209

main70169-22020-A0iGX11#,JZX110..GD200210-200309

main70169-22020-B0iGX11#,JZX110..GD200305-200404

main70169-22020-B0iGX11#,JZX110..GD200108-200309

main71074-2A760-A0iJZX11#..GDG,GDGT200010-200411

main71074-2A770-A0iJZX11#..GDG,GDGT200010-200411

main71074-2A780-A0iJZX11#..GDG200010-200411

sub71074-2A781

main71074-2A780-A0iGX11#,JZX110..GD200404-200410

sub71074-2A781

main71074-2A780-B0iJZX11#..GDG200010-200411

sub71074-2A781

main71074-2A780-B0iGX11#,JZX110..GD200404-200410

sub71074-2A781

main71074-2A790-A0iJZX11#..GDG200010-200411

sub71074-2A791

main71074-2A790-A0iGX11#,JZX110..GD200404-200410

sub71074-2A791

main71074-2A790-B0iGX11#,JZX110..GD200404-200410

sub71074-2A791

main71074-2A790-B0iJZX11#..GDG200010-200411

sub71074-2A791

main71074-2A800-A0iGX11#,JZX110..GD200010-200210

sub71074-2A801

main71074-2A800-B0iGX11#,JZX110..GD200010-200210

sub71074-2A801

main71074-2A810-A0iGX11#,JZX110..GD200010-200210

main71074-2A810-B0iGX11#,JZX110..GD200010-200210

main71074-2A820-C0iJZX11#..WG200201-200706

main71074-2A820-C0iJZX110..GDS,GDV200106-200411

main71074-2A830-C0iJZX110..GDS,GDV200106-200411

main71074-2A830-C0iJZX11#..WG200201-200706

main71074-2A840-C0iGX110,JZX110..GDS,GDV200010-200411

sub71074-2A841

main71074-2A850-C0iJZX110..GDS,GDV200010-200411

sub71074-2A851

main71074-2A850-C0iGX110..GDS200210-200411

sub71074-2A851

main71074-2A880-B0iGX11#,JZX11#..WG200201-200706

sub71074-2A881

main71074-2A880-C0iGX11#,JZX11#..WG200201-200706

sub71074-2A881

main71074-2A890-B0iGX11#,JZX11#..WG200201-200706

main71074-2A890-C0iGX11#,JZX11#..WG200201-200706

main71074-2C010-A0iGX11#,JZX110..GD200210-200411

main71074-2C010-B0iGX11#,JZX110..GD200210-200411

main71074-2C020-A0iGX11#,JZX110..GD200210-200411

main71074-2C020-B0iGX11#,JZX110..GD200210-200411

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-22350-A0iGX11#,JZX110..GD200210-200309

main71040-22350-A0iGX11#,JZX110..GD200108-200209

main71040-22350-A0iGX11#,JZX110..GD200305-200404

main71040-22350-B0iGX11#,JZX110..GD200305-200404

main71040-22350-B0iGX11#,JZX110..GD200210-200309

main71040-22350-B0iGX11#,JZX110..GD200108-200209

main71430-2C750-A0iJZX11#..GDG,GDGT200010-200411

main71430-2C780-A0iJZX11#..GDG,GDGT200010-200411

sub71430-2C781

main71430-2C780-A0iGX11#,JZX110..GD200404-200410

sub71430-2C781

main71430-2C780-B0iJZX11#..GDG,GDGT200010-200411

sub71430-2C781

main71430-2C780-B0iGX11#,JZX110..GD200404-200410

sub71430-2C781

main71430-2C850-A0iGX11#,JZX110..GD200010-200210

sub71430-2C851

main71430-2C850-B0iGX11#,JZX110..GD200010-200210

sub71430-2C851

main71430-2C870-C0iJZX11#..WG200201-200706

main71430-2C870-C0iJZX110..GDS,GDV200106-200411

main71430-2C890-C0iJZX110..GDV200010-200411

sub71430-2C891

main71430-2V020-B0iJZX11#..WG200201-200706

sub71430-2V021

main71430-2V020-C0iGX11#200501

sub71430-2V021

main71430-2V020-C0iJZX11#..WG200201-200706

sub71430-2V021

main71430-2V030-B0iGX11#..IR200201-200706

sub71430-2V031

main71430-2V030-C0iGX11#..IR200201-200706

sub71430-2V031

main71430-2V060-A0iGX115..GD200010-200210

sub71430-2V061

main71430-2V060-B0iGX115..GD200010-200210

sub71430-2V061

main71430-2V100-A0iGX11#,JZX110..GD200210-200411

main71430-2V100-B0iGX11#,JZX110..GD200210-200411

main71430-2V120-A0iGX115..GD200210-200411

main71430-2V120-B0iGX115..GD200210-200411

main71430-2V130-C0iGX110,JZX110..GDS200210-200411

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71070-22260-A0iGX11#,JZX110..GD200108-200209

main71070-22260-A0iGX11#,JZX110..GD200305-200404

main71070-22260-A0iGX11#,JZX110..GD200210-200309

main71070-22260-B0iGX11#,JZX110..GD200108-200209

main71070-22260-B0iGX11#,JZX110..GD200305-200404

main71070-22260-B0iGX11#,JZX110..GD200210-200309

main71440-2C480-A0iJZX11#..GDG,GDGT200010-200411

main71440-2C570-A0iJZX11#..GDG,GDGT200010-200411

sub71440-2C571

main71440-2C570-A0iGX11#,JZX110..GD200404-200410

sub71440-2C571

main71440-2C570-B0iJZX11#..GDG,GDGT200010-200411

sub71440-2C571

main71440-2C570-B0iGX11#,JZX110..GD200404-200410

sub71440-2C571

main71440-2C590-A0iGX11#,JZX110..GD200010-200210

sub71440-2C591

main71440-2C590-B0iGX11#,JZX110..GD200010-200210

sub71440-2C591

main71440-2C610-C0iJZX11#..WG200201-200706

main71440-2C610-C0iJZX110..GDS,GDV200106-200411

main71440-2C630-C0iJZX110..GDS,GDV200010-200411

sub71440-2C631

main71440-2C670-B0iGX11#,JZX11#..WG200201-200706

sub71440-2C671

main71440-2C670-C0iGX11#,JZX11#..WG200201-200706

sub71440-2C671

main71440-2C690-A0iGX11#,JZX110..GD200210-200411

main71440-2C690-B0iGX11#,JZX110..GD200210-200411

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-22600iGX11#,JZX11#..GD,GDG200010-200411

main71511-22610iJZX110..IRV200010-200604

main71511-22630iGX110,JZX110..GDS,GDV200010-200604

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71052-22050iGX11#,JZX11#..GD,GDG,GDGT200010-200411

main71052-22060iJZX110..GDS,GDV200010-200604

main71052-22080iJZX110..GDS,GDV200010-200604

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-22610-A0iJZX11#..GDG200010-200411

main71705-22610-C0iJZX110..GDS,GDV200106-200411

main71705-22610-C0iJZX11#..WG200201-200706

main71705-22620-A0iGX11#,JZX110..GD200404-200410

main71705-22620-A0iJZX11#..GDG,GDGT200010-200411

main71705-22620-B0iJZX11#..GDG,GDGT200010-200411

main71705-22620-B0iGX11#,JZX110..GD200404-200410

main71705-22630-A0iGX11#,JZX110..GD200010-200210

main71705-22630-B0iGX11#,JZX110..GD200010-200210

main71705-22640-C0iGX110,JZX110..GDS,GDV200010-200411

main71705-22650-B0iGX11#,JZX11#..WG200201-200706

main71705-22650-C0iGX11#,JZX11#..WG200201-200706

main71705-22660-A0iGX11#,JZX110..GD200210-200309

main71705-22660-A0iGX11#,JZX110..GD200108-200209

main71705-22660-A0iGX11#,JZX110..GD200305-200404

main71705-22660-B0iGX11#,JZX110..GD200108-200309

main71705-22660-B0iGX11#,JZX110..GD200305-200404

main71705-22670-A0iGX11#,JZX110..GD200210-200411

main71705-22670-B0iGX11#,JZX110..GD200210-200411

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-22610-A0iJZX11#..GDG,GDGT200010-200411

main71705-22610-C0iJZX110..GDS,GDV200106-200411

main71705-22610-C0iJZX11#..WG200201-200706

main71705-22620-A0iJZX11#..GDG,GDGT200010-200411

main71705-22620-A0iGX11#,JZX110..GD200404-200410

main71705-22620-B0iJZX11#..GDG200010-200411

main71705-22620-B0iGX11#,JZX110..GD200404-200410

main71705-22630-A0iGX11#,JZX110..GD200010-200210

main71705-22630-B0iGX11#,JZX110..GD200010-200210

main71705-22640-C0iGX110,JZX110..GDS,GDV200010-200411

main71705-22650-B0iGX11#,JZX11#..WG200201-200706

main71705-22650-C0iGX11#,JZX11#..WG200201-200706

main71705-22660-A0iGX11#,JZX110..GD200305-200404

main71705-22660-A0iGX11#,JZX110..GD200108-200209

main71705-22660-A0iGX11#,JZX110..GD200210-200309

main71705-22660-B0iGX11#,JZX110..GD200108-200309

main71705-22660-B0iGX11#,JZX110..GD200305-200404

main71705-22670-A0iGX11#,JZX110..GD200210-200411

main71705-22670-B0iGX11#,JZX110..GD200210-200411

71910AHEADREST ASSY, FRONT SEAT

main71910-2A200-A0iJZX11#..GDG200010-200411

main71910-2A210-A0iJZX11#..GDG,GDGT200010-200411

sub71910-22B30

main71910-2A210-A0iGX11#,JZX110..GD200404-200410

sub71910-22B30

main71910-2A210-B0iGX11#,JZX110..GD200404-200410

sub71910-22B30

main71910-2A210-B0iJZX11#..GDG200010-200411

sub71910-22B30

main71910-2A220-A0iGX11#,JZX110..GD200010-200210

main71910-2A220-B0iGX11#,JZX110..GD200010-200210

main71910-2A230-C0iGX110,JZX110..GDS,GDV200010-200411

main71910-2A250-C0iJZX110..GDS,GDV200106-200411

main71910-2A250-C0iJZX11#..WG200201-200706

main71910-2A260-B0iGX11#,JZX11#..IR,IRS200201-200501

sub71910-2A261

main71910-2A260-B0iGX11#,JZX11#..WG200201-200706

sub71910-2A261

main71910-2A260-C0iGX11#,JZX11#..WG200201-200706

sub71910-2A261

main71910-2A260-C0iGX11#,JZX11#..IR,IRS200201-200501

sub71910-2A261

main71910-2A270-A0iGX11#,JZX110..GD200210-200309

main71910-2A270-A0iGX11#,JZX110..GD200108-200209

main71910-2A270-A0iGX11#,JZX110..GD200305-200404

main71910-2A270-B0iGX11#,JZX110..GD200305-200404

main71910-2A270-B0iGX11#,JZX110..GD200210-200309

main71910-2A280-A0iGX11#,JZX110..GD200210-200411

main71910-2A280-B0iGX11#,JZX110..GD200210-200411

71931SUPPORT, FRONT SEAT HEADREST

main71930-47010-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

sub71930-47010

sub71930-44020

main71930-47010-B3iGX11#,JZX11#..IR,IRS200201-200501

sub71930-47010

sub71930-44020

main71930-47010-B3iGX11#,JZX11#..GD,GDG200010-200706

sub71930-47010

sub71930-44020

main71930-47010-C0iGX110,JZX110..GDS,GDV200010-200706

sub71930-47010

sub71930-44020

main71930-47010-C0iGX11#,JZX11#..IR,IRS200201-200501

sub71930-47010

sub71930-44020

main71931-47010-A0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

sub71931-47010

sub71931-42020

main71931-47010-B3iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200706

sub71931-47010

sub71931-42020

main71931-47010-B3iGX11#,JZX11#..IR,IRS200201-200501

sub71931-47010

sub71931-42020

main71931-47010-C0iGX110,JZX110..GDS,GDV200010-200706

sub71931-47010

sub71931-42020

main71931-47010-C0iGX11#,JZX11#..IR,IRS200201-200501

sub71931-47010

sub71931-42020

72750DADJUSTER ASSY, LUMBAR SUPPORT, RH

main72750-51010iGX11#,JZX11#..GD,GDG200010-200411

72797ASPACER, LUMBAR SUPPORT

main72797-51010iGX11#,JZX11#..GD,GDG,GDGT200010-200411

8266622150HOLDER, CONNECTOR

main82666-22150

9010505004

main90105-05004

91511B0610

main91511-B0610

9356855016

main93568-55016

21 parts on this diagram · 5 diagrams in section
