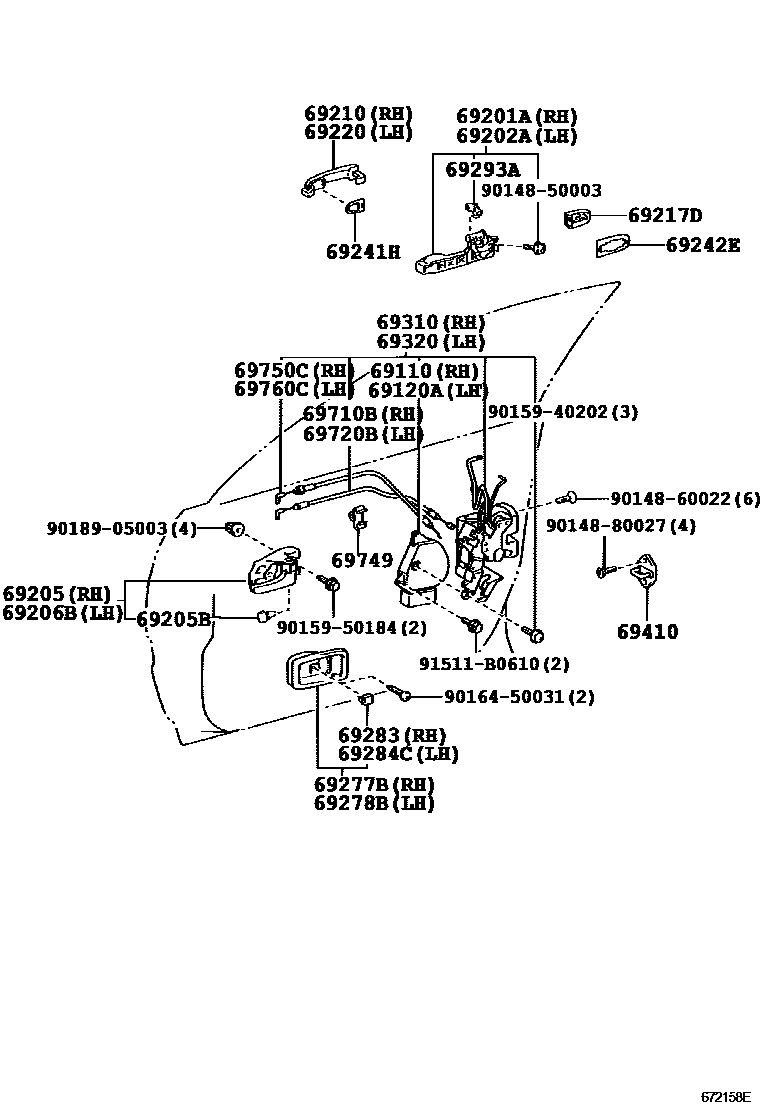

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-22010iGX11#,JZX11#..SED200010-200604

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-22010iJZX110..IRV200010-200604

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-42010iGX11#,JZX11#200010-200210

sub69201-52010

main69201-52010iGX11#,JZX11#..WG200210

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-42010iGX11#,JZX11#200010-200210

sub69202-52010

main69202-52010iGX11#,JZX11#..SED200210

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22090-B0iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub69205-22090

main69205-22090-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub69205-22090

main69205-22090-C0iJZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub69205-22090

main69205-22090-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub69205-22090

main69205-22090-E0iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub69205-22090

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iJZX110..IRV200010-200604

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22090-B0iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub69206-47010

main69206-22090-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub69206-47010

main69206-22090-C0iGX110,JZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub69206-47010

main69206-22090-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub69206-47010

main69206-22090-E0iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub69206-47010

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-12260iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200102-200706

main69211-12200iGX11#,JZX11#200010-200102

sub69210-12260

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-12010iGX11#,JZX11#..SED200210

main69217-12010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-12260iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200102-200706

main69211-12200iGX11#,JZX11#200010-200102

sub69210-12260

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-42020iGX11#,JZX11#..SED200010

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-42010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22100-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub69277-22100

main69277-22100-B0iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub69277-22100

main69277-22100-C0iGX110,JZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub69277-22100

main69277-22100-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub69277-22100

main69277-22100-E0iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub69277-22100

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22060-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

main69278-22060-B0iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

main69278-22060-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

main69278-22060-C0iJZX110..GDS,GDV200010-200411

BLACK,TRIM2#

main69278-22060-E0iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-B9iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub69283-30040

main69283-30040-B9iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub69283-30040

main69283-30040-C0iGX110,JZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub69283-30040

main69283-30040-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub69283-30040

main69283-30040-E2iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub69283-30040

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-B9iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub69284-30040

main69284-30040-B9iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub69284-30040

main69284-30040-C0iGX110,JZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub69284-30040

main69284-30040-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub69284-30040

main69284-30040-E2iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub69284-30040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main69293-12040iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

69310LOCK ASSY, FRONT DOOR, RH

main69030-22430iJZX110..IRV200010-200604

69320LOCK ASSY, FRONT DOOR, LH

main69040-22560iJZX110..IRV200010-200604

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iJZX110..IRV200010-200604

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-22060iJZX110..IRV200010-200604

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-22060iJZX110..IRV200010-200604

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050iJZX110..IRV200010-200604

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-22050iJZX110..IRV200010-200604

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-22050iJZX110..IRV200010-200604

9014850003

main90148-50003

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015950184

main90159-50184

9016450031

main90164-50031

9018905003

main90189-05003

91511B0610

main91511-B0610

33 parts on this diagram · 1 diagram in section
