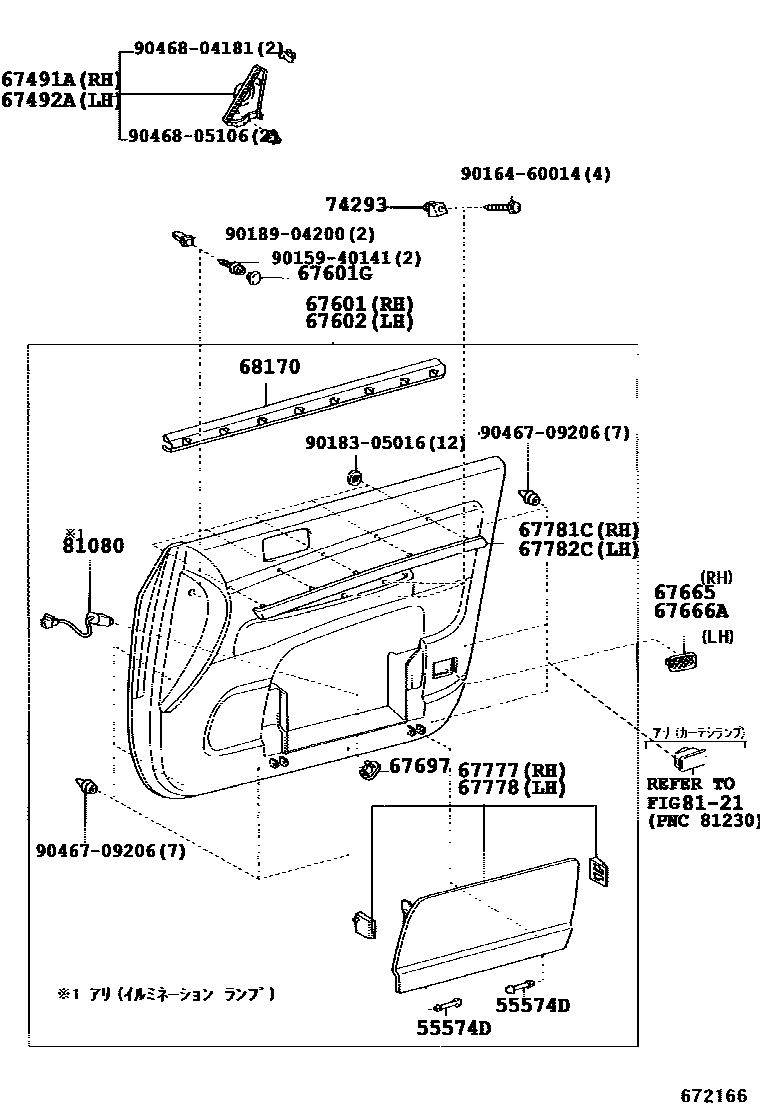

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1����-��

55574DSHAFT(FOR FRONT DOOR TRIM BOARD)

main55574-10010iGX11#,JZX11#..SED200010

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-22140iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-22140iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-22A10-A0iGX11#,JZX110..GD200305-200404

main67610-22A10-B0iGX11#,JZX110..GD200305-200404

main67610-22B30-B0iGX11#,JZX110..GD200404-200410

main67610-22B30-E0iGX11#,JZX110..GD200404-200410

main67610-2C310-A0iGX11#,JZX110..GD200010-200210

main67610-2C310-B0iGX11#,JZX110..GD200010-200210

main67610-2C320-A0iJZX11#..GDG,GDGT200010-200210

sub67610-2C321

main67610-2C320-A1iJZX11#..GDG200210-200411

sub67610-2C321

main67610-2C320-B0iJZX11#..GDG200010-200411

sub67610-2C321

main67610-2C330-C0iGX110,JZX110..GDS,GDV200010-200411

main67610-2C340-A0iJZX11#..GDG,GDGT200010-200210

main67610-2C340-A1iJZX11#..GDG200210-200411

main67610-2C350-C1iJZX110..GDS,GDV200010-200411

main67610-2C450-B0iJZX110..IRS200201-200706

sub67610-2C451

sub67610-2C450

main67610-2C450-C0iGX11#..IR200201-200706

sub67610-2C451

sub67610-2C450

main67610-2C450-C0iGX11#,JZX110..IR,IRS200305-200404

sub67610-2C451

sub67610-2C450

main67610-2C460-B1iJZX11#..WG200201-200706

sub67610-2C460

sub67610-2C461

main67610-2C460-C2iJZX11#..WG200201-200706

sub67610-2C460

sub67610-2C461

main67610-2C470-C0iJZX110..IRS200201-200406

sub67610-2C470

main67610-2C480-A0iGX11#,JZX110..GD200108-200209

main67610-2C480-A1iGX11#,JZX110..GD200210-200309

main67610-2C480-B0iGX11#,JZX110..GD200108-200309

main67610-2C490-C0iJZX11#..WG200201-200706

main67610-2C500-A1iGX11#,JZX110..GD200210-200411

main67610-2C500-B1iGX11#,JZX110..GD200210-200411

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-C0iJZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub90950-01800

main90950-01800-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub90950-01800

main90950-01800-E5iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub90950-01800

main90950-01800-P1iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub90950-01800

main90950-01800-P1iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67050-22130-A0iGX11#,JZX110..GD200305-200404

main67050-22130-B0iGX11#,JZX110..GD200305-200404

main67620-22B00-B0iGX11#,JZX110..GD200404-200410

main67620-22B00-E0iGX11#,JZX110..GD200404-200410

main67620-2V210-A0iGX11#,JZX110..GD200010-200210

main67620-2V210-B0iGX11#,JZX110..GD200010-200210

main67620-2V220-A0iJZX11#..GDG,GDGT200010-200210

sub67620-2V221

main67620-2V220-A1iJZX11#..GDG200210-200411

sub67620-2V221

main67620-2V220-B0iJZX11#..GDG200010-200411

sub67620-2V221

main67620-2V230-C0iJZX110..GDS,GDV200010-200411

main67620-2V240-A0iJZX11#..GDG,GDGT200010-200210

main67620-2V240-A1iJZX11#..GDG200210-200411

main67620-2V250-C1iJZX110..GDS,GDV200010-200411

main67620-2V340-B0iGX11#..IR200201-200706

main67620-2V340-C0iGX11#..IR200201-200706

main67620-2V340-C0iGX11#,JZX110..IR,IRS200305-200404

main67620-2V350-B0iJZX11#..WG200201-200706

sub67620-2V351

main67620-2V350-C0iJZX11#..WG200201-200706

sub67620-2V351

main67620-2V360-C1iJZX110..IRS200201-200406

main67620-2V370-C0iJZX11#..WG200201-200706

main67620-2V380-A1iGX11#,JZX110..GD200210-200411

main67620-2V380-B1iGX11#,JZX110..GD200210-200411

main67660-22190-A0iGX11#,JZX110..GD200108-200209

main67660-22190-A1iGX11#,JZX110..GD200210-200309

main67660-22190-B0iGX11#,JZX110..GD200108-200309

67665REFLECTOR, FRONT DOOR TRIM, RH

main67665-20020iGX115..GD200010-200410

67666AREFLECTOR, FRONT DOOR TRIM, LH

main67665-20020iGX115..GD200010-200410

67697COVER, FRONT DOOR TRIM POCKET

main67697-22240-A0iGX11#,JZX110..GD200010-200411

sub67697-22240

main67697-22240-A0iGX11#,JZX110..GD200404-200410

sub67697-22240

main67697-22240-B0iGX11#,JZX110..GD200010-200411

sub67697-22240

main67697-22240-B0iGX11#,JZX110..GD200404-200410

sub67697-22240

main67697-22240-C0iJZX110..GDS,GDV200010-200411

sub67697-22240

main67697-22250-A0iJZX11#..GDG,GDGT200010-200411

sub67697-22250

main67697-22250-B0iJZX11#..GDG200010-200411

sub67697-22250

main67697-22250-C0iJZX11#..WG200201-200706

sub67697-22250

main67698-22190-A0iGX11#,JZX110..GD200010-200411

sub67698-22190

main67698-22190-A0iGX11#,JZX110..GD200404-200410

sub67698-22190

main67698-22190-B0iJZX110..IRS200010-200406

MD.CHARCOAL,TRIM1#

sub67698-22190

main67698-22190-B0iGX11#,JZX110..GD,IR200010-200411

sub67698-22190

main67698-22190-B0iGX11#,JZX110..GD200404-200410

sub67698-22190

main67698-22190-C0iGX11#..IR;JZX110..GDS,GDV200010-200411

sub67698-22190

main67698-22190-C0iJZX110..IRS200010-200406

BLACK,TRIM2#

sub67698-22190

main67698-22240-A0iJZX11#..GDG,GDGT200010-200411

sub67698-22240

main67698-22240-B0iJZX11#..GDG,GDGT200010-200411

sub67698-22240

main67698-22240-B0iJZX11#..WG200201-200706

sub67698-22240

main67698-22240-C0iJZX11#..WG200201-200706

sub67698-22240

67777POCKET, FRONT DOOR TRIM, RH

main67777-22160-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

sub67777-22160

main67777-22160-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200706

MD.CHARCOAL,TRIM1#

sub67777-22160

main67777-22160-C0iGX110,JZX110..GDS,GDV200010-200706

BLACK,TRIM2#

sub67777-22160

67778POCKET, FRONT DOOR TRIM, LH

main67778-22160-A0iGX11#,JZX11#..GD,GDG200010-200411

IVORY,TRIM0#

sub67778-22160

main67778-22160-B0iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010-200706

MD.CHARCOAL,TRIM1#

sub67778-22160

main67778-22160-C0iGX110,JZX110..GDS,GDV200010-200706

BLACK,TRIM2#

sub67778-22160

67781CORNAMENT SUB-ASSY, FRONT DOOR TRIM, RH

main67781-22030-D0iJZX110..GDS,GDV200010-200411

REDDISH BROWN,TRIM2#

main67781-22030-E0iGX11#,JZX11#..GD,GDG200010-200411

YELLOWISH BROWN,TRIM0#,1#

main67781-22040-B0iGX11#,JZX11#..WG200201-200706

GRAY,TRIM1#,2#

main67781-22050-E0iGX11#,JZX110..GD200404-200410

main67781-22050-E0iGX11#,JZX110..GD200305-200404

67782CORNAMENT SUB-ASSY, FRONT DOOR TRIM, LH

main67782-22020-D0iJZX110..GDS,GDV200010-200411

REDDISH BROWN,TRIM2#

main67782-22020-E0iGX11#,JZX11#..GD,GDG,GDGT200010-200411

YELLOWISH BROWN,TRIM0#,1#

main67782-22030-B0iGX11#,JZX11#..WG200201-200706

GRAY,TRIM1#,2#

main67782-22040-E0iGX11#,JZX110..GD200305-200404

main67782-22040-E0iGX11#,JZX110..GD200404-200410

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-22030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200302

sub68171-22031

main68171-22031iGX11#,JZX11#..SED200302-200706

main68172-22010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200302

sub68172-22011

main68172-22011iGX11#,JZX11#..WG200302-200706

74293PLATE, FRONT DOOR ARMREST, NO.1

main74294-32010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

81080LAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81090-50010iJZX11#..GDG,GDGT,IRS,IRV200010

8121

9015940141

main90159-40141

9016460014

main90164-60014

9018305016

main90183-05016

9018904200

main90189-04200

9046709206

main90467-09206

9046804181

main90468-04181

9046805106

main90468-05106

24 parts on this diagram · 3 diagrams in section
