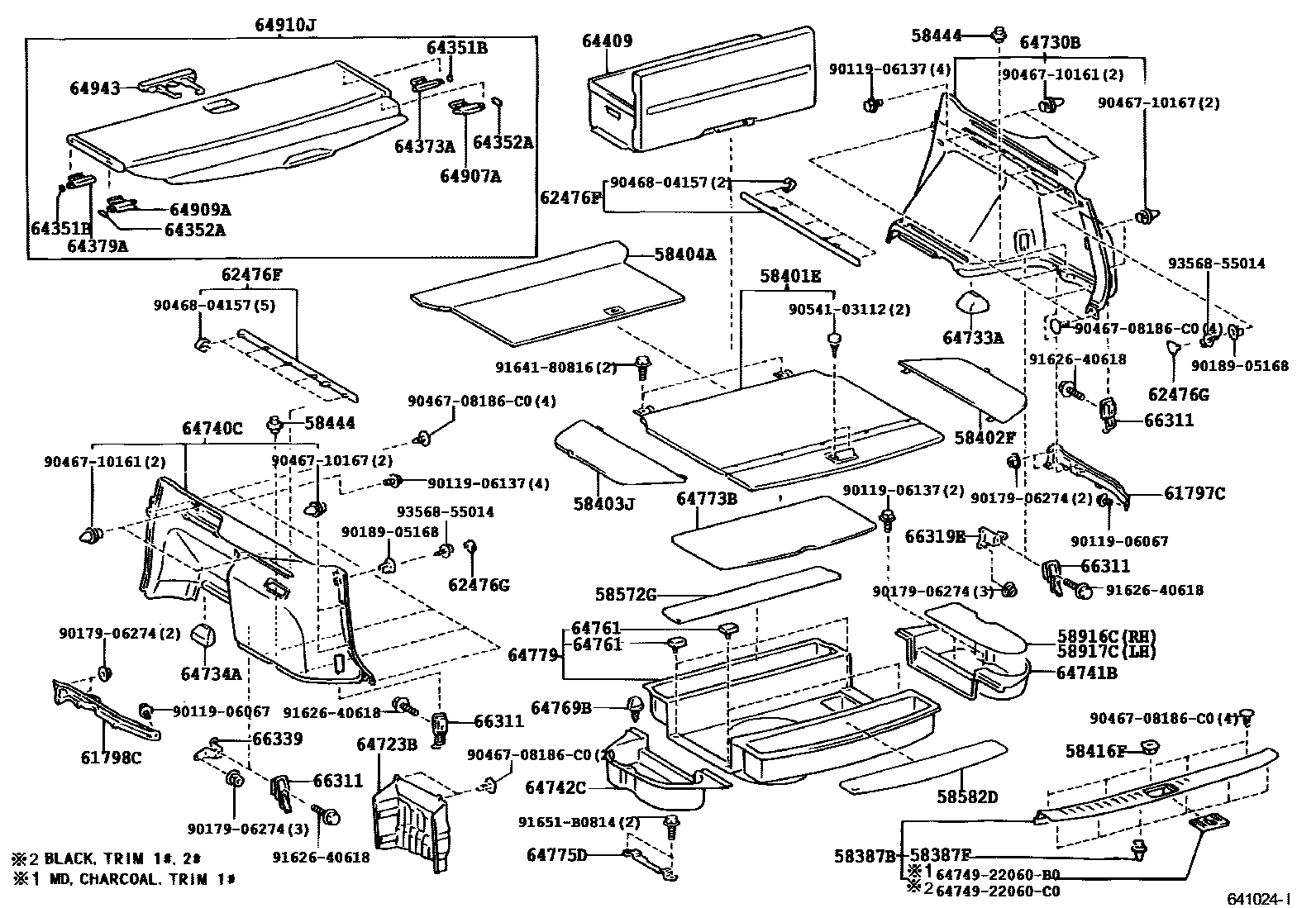

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
58387FCLIP, REAR FLOOR FINISH PLATE
58401EBOARD SUB-ASSY, DECK
CHARCOAL,TRIM1#
BLACK,TRIM2#
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
CHARCOAL,TRIM1#
BLACK,TRIM2#
58403JBOARD SUB-ASSY, REAR FLOOR, NO.3
CHARCOAL,TRIM1#
BLACK,TRIM2#
58404ABOARD SUB-ASSY, REAR FLOOR, NO.4
CHARCOAL,TRIM1#
BLACK,TRIM2#
58416FBRACKET, DECK BOARD, NO.1
58444CUSHION, DECK BOARD, NO.2
58572GMAT, REAR FLOOR, FRONT
58582DMAT, REAR FLOOR, REAR
58916CMAT, BOX BOTTOM
58917CMAT, BOX BOTTOM, NO.2
61797CSTAY, REAR WHEEL OPENING, REAR RH
61798CSTAY, REAR WHEEL OPENING, REAR LH
62476GCAP, ROOF SIDE INNER GARNISH, NO.2
64351BPAD, PACKAGE TRAY TRIM, NO.1
64352APAD, PACKAGE TRAY TRIM, NO.2
64373ASTOPPER, PACKAGE TRAY TRIM
64379ASTOPPER, PACKAGE TRAY TRIM, LH
64409BOX ASSY, LUGGAGE COMPARTMENT TRIM
64723BCOVER, LUGGAGE COMPARTMENT TRIM SIDE, LOWER
64730BPANEL ASSY, DECK TRIM SIDE, RH
CHARCOAL,TRIM1#
BLACK,TRIM2#
64733APAD, DECK TRIM SIDE, NO.1
64734APAD, DECK TRIM SIDE, NO.2
64740CPANEL ASSY, DECK TRIM SIDE, LH
CHARCOAL,TRIM1#
BLACK,TRIM2#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64761CUSHION, SIDE TRIM TOOL COVER
64769BKNOB, TOOL COVER
64773BPAD, SPARE WHEEL COVER, NO.2
64775DGUARD, SPARE WHEEL
64779TRAY, SPARE WHEEL COVER
64907AHOLDER SUB-ASSY, TONNEAU COVER
64909ASTOPPER SUB-ASSY, TONNEAU COVER, LH
64910JCOVER ASSY, TONNEAU
***,MD.CHARCOAL,TRIM1#
***,BLACK,TRIM2#
64943STOPPER, TONNEAU COVER LIFT
66311HOOK, ROPE
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
66319EBRACKET, ROPE HOOK, RH
66339BRACKET, ROPE HOOK, LH
6474922060B0PAD, LUGGAGE COMPARTMENT SILENCER SIDE, CENTER
main64749-22060B0
6474922060C0PAD, LUGGAGE COMPARTMENT SILENCER SIDE, CENTER
main64749-22060C0
9011906067
main90119-06067
9011906137
main90119-06137
9017906274
main90179-06274
9018905168
main90189-05168
9046708186C0
main90467-08186C0
9046710161
main90467-10161
9046710167
main90467-10167
9046804157
main90468-04157
9054103112
main90541-03112
9162640618
main91626-40618
9164180816
main91641-80816
91651B0814
main91651-B0814
9356855014
main93568-55014
55 parts on this diagram · 1 diagram in section
