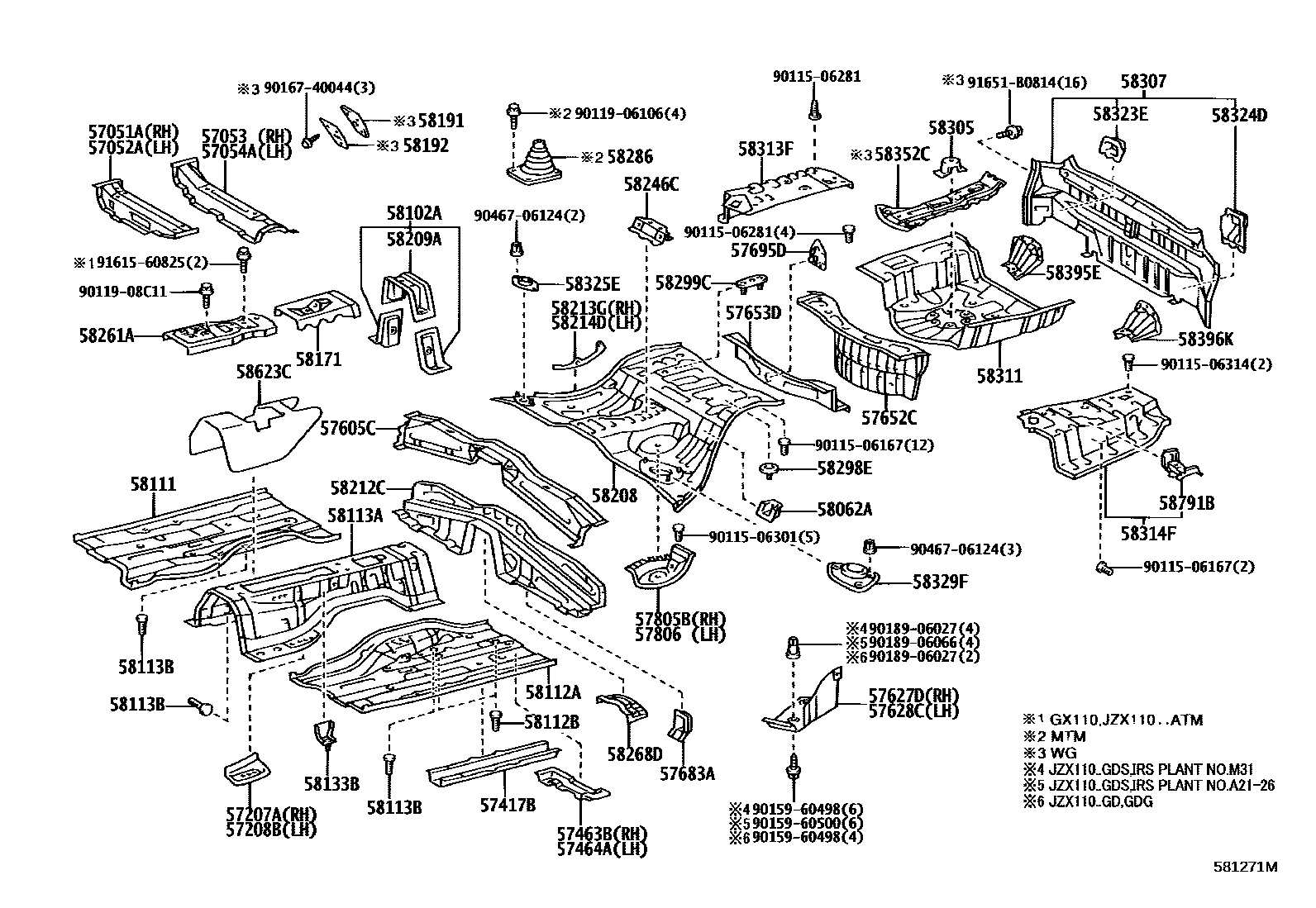

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1������-�

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-22050iJZX110;GX110..GD,IR200010

main57051-22060iGX115,JZX115200010

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-22050iGX110,JZX110..SED200010

main57052-22060iGX115,JZX115200010

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-22050iJZX110;GX110..GD,IR200010

main57053-22060iGX115,JZX115..SED200010

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-22050iGX110,JZX110..SED200010

main57054-22060iGX115,JZX115200010

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-22060iGX115,JZX115..SED200010

main57207-51010iJZX110;GX110..GD,IR200010

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-30010iGX115,JZX115200010

main57208-51010iJZX110;GX110..GD,IR200010

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57403-53010iGX110,JZX110..GDS,GDV200010

main57463-51010iGX11#,JZX11#..GD,GDG200010

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57404-53010iGX110,JZX110..GDS,GDV200010

main57464-51010iGX11#,JZX11#..GD,GDG200010

57605CMEMBER SUB-ASSY, REAR FLOOR CROSS

main57461-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

57627DCOVER, REAR FLOOR SIDE MEMBER

main57627-51010iJZX110..GD,GDG200010-200210

main57627-53010iJZX110..IRS200010-200210

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-51010iJZX110..GD,GDG200010-200210

main57628-53010iJZX110..IRS200010-200210

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-53010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-53010iGX11#,JZX11#200010-200012

sub57805-53011

main57805-53011iGX11#,JZX11#..WG200201-200403

sub57805-53012

main57805-53012iGX11#,JZX11#..WG200404

main57805-53020iGX11#,JZX11#..SED200106-200210

sub57805-53021

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-53010iGX11#,JZX11#200010-200012

sub57806-53011

main57806-53011iGX11#,JZX11#..WG200201-200403

sub57806-53012

main57806-53012iGX11#,JZX11#..WG200404

main57806-53020iGX11#,JZX11#..SED200106-200210

sub57806-53021

58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR

main58062-30010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58111PAN, FRONT FLOOR

main58111-30400iGX110,JZX110200010-200101

sub58111-30401

main58111-30401iGX110,JZX110..SED200101

main58111-30410iGX115,JZX115200010-200101

sub58111-30411

main58111-30411iGX115,JZX115..SED200101

58112APANEL, FRONT FLOOR, LH

main58112-30080iGX110,JZX110200010-200101

sub58112-30081

main58112-30081iJZX110;GX110..GD,IR200101

main58112-30120iGX115,JZX115200010-200101

sub58112-30121

main58112-30121iGX115,JZX115200101

58112BBOLT, WELD(FOR FRONT FLOOR PAN, LH)

main90115-06301iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58113APANEL, FRONT FLOOR, CENTER

main58113-30131iJZX110;GX110..GD,IR200010

main58113-30151iGX115,JZX115200010

58113BBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-06243iJZX110..GD,GDG,GDS,IRS200010

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-51010iJZX110..GDGT,GDV,IRV;GX11#,JZX115..GD,GDG,IR,IRS200010

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-22090iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58191FOOTREST, FRONT FLOOR

main58190-22010iGX11#,JZX11#..WG200201

58192PANEL, FOOTREST

main58192-22050iGX11#,JZX11#..WG200201

58208PAN, CENTER FLOOR

main58211-51902iGX11#,JZX11#200010-200210

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58212CPAN, CENTER FLOOR, FRONT

main58212-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH

main58213-51011iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH

main58214-51011iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-22020iGX11#,JZX11#..SED200010-200210

58261ACOVER, TRANSMISSION

main58261-22400iGX110,JZX110..GD,GDG200010

main58261-22410iJZX110..ATM..(GDS,GDV)200010-200210

main58261-22420iJZX110..5F200010-200210

main58261-22430iGX115,JZX115..SED200010

58268DREINFORCEMENT, PARKING BRAKE CABLE, NO.3

main58268-51011iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-22090iJZX110..5F200010-200210

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-30010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-53010iGX11#,JZX11#..SED200010

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-22750iGX11#,JZX11#..SED200010-200411

main58307-22770iGX11#,JZX11#..WG200201-200706

58311PAN, REAR FLOOR

main58311-22150iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-22120iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-22903iGX11#,JZX11#..SED200010-200501

main58314-22904iGX11#,JZX11#200501

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-22090iGX11#,JZX11#..SED200010-200210

main58323-22110iGX11#,JZX11#..WG200201

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-22050iGX11#,JZX11#..SED200010-200210

main58324-22070iGX11#,JZX11#..WG200201

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30010iGX11#,JZX11#..SED200010

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30020iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2

main58352-22030iGX11#,JZX11#..WG200201

58395EGUSSET, BACK DOOR OPENING, LOWER RH

main58395-22020iGX11#,JZX11#..WG200201

58396KGUSSET, BACK DOOR OPENING, LOWER LH

main58396-22010iGX11#,JZX11#..WG200201

58623CPAD, FRONT FLOOR SILENCER, CENTER

main58623-22220iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

58791BCARRIER, JACK

main58791-30030iGX11#,JZX11#..SED200010-200210

9011506167

main90115-06167

9011506281

main90115-06281

9011506301

main90115-06301

9011506314

main90115-06314

9011906106

main90119-06106

9011908C11

main90119-08C11

9015960498

main90159-60498

9015960500

main90159-60500

9016740044

main90167-40044

9018906027

main90189-06027

9018906066

main90189-06066

9046706124

main90467-06124

9161560825

main91615-60825

91651B0814

main91651-B0814

68 parts on this diagram · 2 diagrams in section
