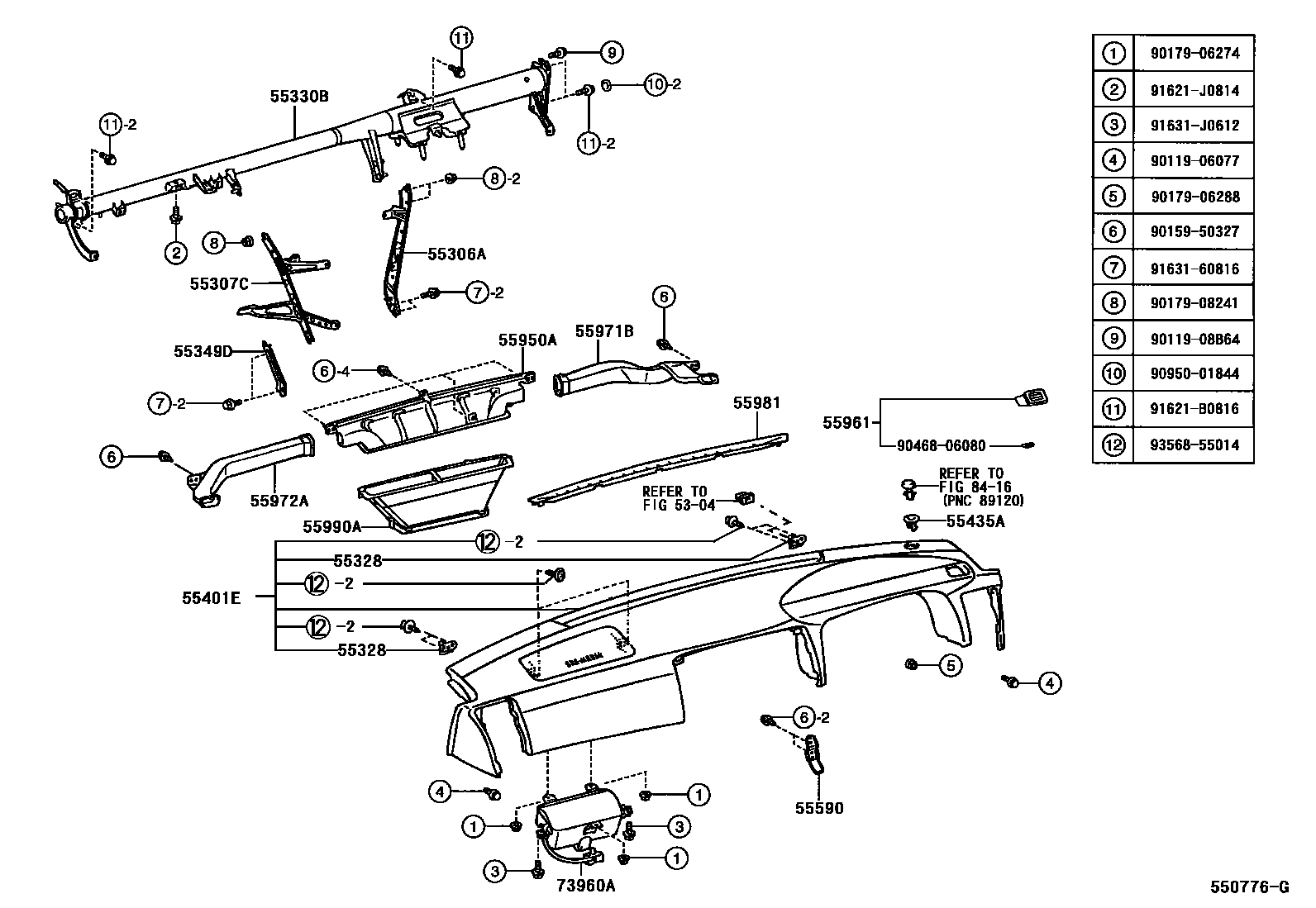

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

5304

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-22230iGX110..GDS¥2,960200010-200210

main55306-22230iGX11#,JZX11#..WG¥2,960200201

main55306-22240iGX11#,JZX11#..SED¥2,650200010-200210

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-22260iGX11#,JZX11#..WG¥2,430200201-200206

sub55307-22261¥2,440

main55307-22260iGX11#,JZX11#..SED¥2,430200010-200206

sub55307-22261¥2,440

main55307-22261iGX11#,JZX11#..WG¥2,440200206-200210

main55307-22270iGX11#,JZX11#¥2,230200010-200206

sub55307-22271¥2,240

main55307-22271iGX11#,JZX11#..WG¥2,240200206-200210

55328PIN, INSTRUMENT PANEL, NO.1

main55328-22050iGX11#,JZX11#..SED¥410200205-200210

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-22170iGX11#,JZX11#¥15,500200010-200206

sub55330-22171¥15,500

main55330-22171iGX11#,JZX11#..SED¥15,500200206-200210

55349DCOVER, INSTRUMENT PANEL BRACE, OUTER NO.2

main55349-22100iGX110,JZX110..WG¥880200010-200210

main55349-22110iGX115,JZX115..WG¥880200010-200210

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-22030-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200205

SADDLE GRAY,TRIM0#,1#

sub55400-22031¥73,700

main55400-22030-C0iGX11#,JZX11#..WG200201-200205

BLACK,TRIM1#,2#

sub55400-22031¥73,700

main55400-22030-C0iJZX110..GDS,GDV200010-200205

BLACK,TRIM2#

sub55400-22031¥73,700

main55400-22031-B0iGX11#,JZX11#..GD,GDG,GDGT200205-200210

SADDLE GRAY,TRIM0#,1#

sub55400-22031¥73,700

main55400-22031-B0iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub55400-22031¥73,700

main55400-22031-C0iJZX110..GDS,GDV200205-200411

BLACK,TRIM2#

sub55400-22031¥73,700

main55400-22031-C0iGX11#,JZX11#..WG200205-200706

BLACK,TRIM1#,2#

sub55400-22031¥73,700

main55400-22031-E0iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub55400-22031¥73,700

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-22050-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub55435-22050¥310

main55435-22050-B0iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub55435-22050¥310

main55435-22050-C0iGX110,JZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub55435-22050¥310

main55435-22050-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub55435-22050¥310

main55435-22050-E0iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub55435-22050¥310

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-22050iGX11#,JZX11#..SED¥510200010-200210

55950ANOZZLE ASSY, DEFROSTER

main55950-22110iGX11#,JZX11#..SED¥4,630200010-200210

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22100-B0iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub55961-22100¥870

main55961-22100-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub55961-22100¥870

main55961-22100-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub55961-22100¥870

main55961-22100-C0iGX110,JZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub55961-22100¥870

main55961-22100-E0iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub55961-22100¥870

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-22080iGX11#,JZX11#..SED¥1,610200010-200210

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-22070iGX11#,JZX11#..WG¥1,610200010-200210

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-22080-B0iGX11#,JZX11#..GD,GDG200210-200411

SADDLE GRAY,TRIM1#

sub55981-22080¥2,710

main55981-22080-B0iGX11#,JZX11#..GD,GDG,GDGT200010-200210

SADDLE GRAY,TRIM0#,1#

sub55981-22080¥2,710

main55981-22080-C0iGX11#,JZX11#..WG200201-200706

BLACK,TRIM1#,2#

sub55981-22080¥2,710

main55981-22080-C0iGX110,JZX110..GDS,GDV200010-200411

BLACK,TRIM2#

sub55981-22080¥2,710

main55981-22080-E0iGX11#,JZX11#..GD,GDG200210-200411

SANDAL WOOD,TRIM0#

sub55981-22080¥2,710

55990ANOZZLE ASSY, DEFROSTER, LOWER

main55990-22010iGX11#,JZX11#..SED¥3,230200010-200210

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-22010iGX11#,JZX11#..SED¥120,000200010-200210

sub73960-22011¥120,000

8416

9011906077

main90119-06077¥80

9011908B64

main90119-08B64¥170

9015950327

main90159-50327¥70

9017906274

main90179-06274¥70

9017906288

main90179-06288¥70

9017908241

main90179-08241¥80

9046806080

main90468-06080¥190

9095001844

main90950-01844¥160

91621B0816

main91621-B0816¥90

91621J0814

main91621-J0814¥60

9163160816

main91631-60816¥160

91631J0612

main91631-J0612¥110

9356855014

main93568-55014¥70

30 parts on this diagram · 2 diagrams in section
