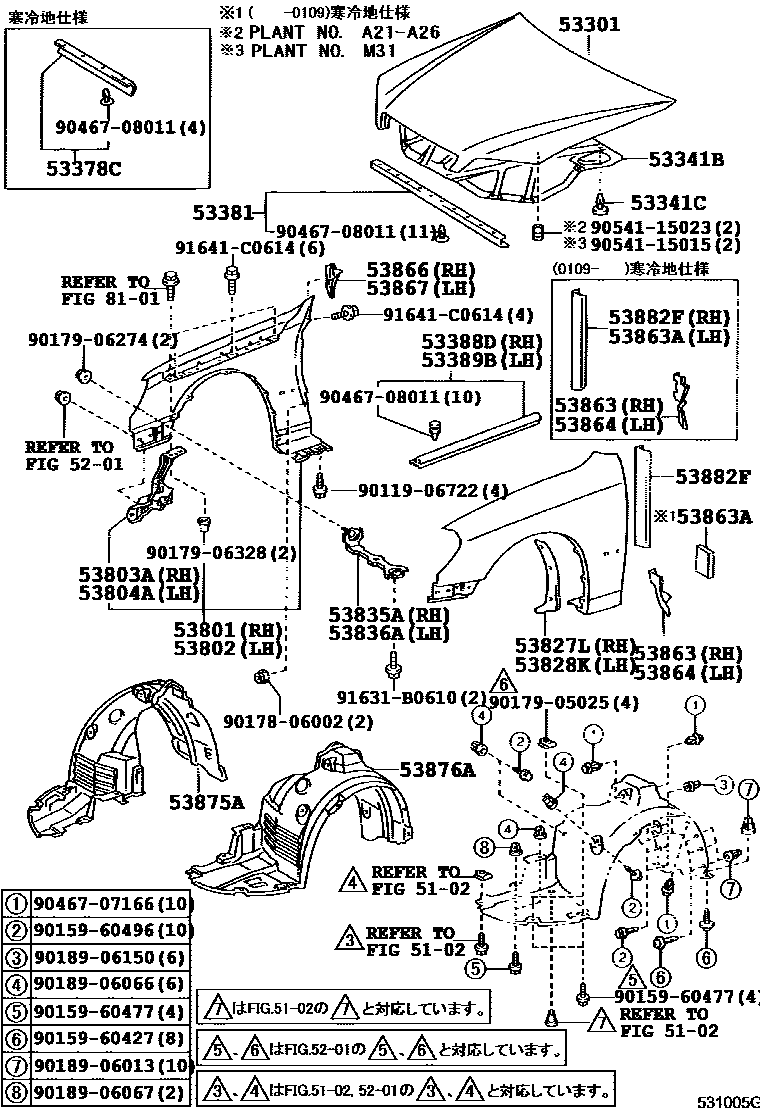

HOOD & FRONT FENDER

0001 1 0002 1

5102

5201

53301HOOD SUB-ASSY

main53301-22380iGX11#,JZX11#..SED200010-200411

main53301-22410iGX11#,JZX11#..WG200201-200706

53341BINSULATOR, HOOD

main53341-22150iGX11#,JZX11#..SED200010-200210

main53341-22170iGX11#,JZX11#..WG200201

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iGX11#,JZX11#..SED200010-200210

main90467-09050iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200112

53378CSEAL, HOOD AIR INTAKE DUCT

main53378-22050iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-22150iGX11#,JZX11#..SED200010-200411

main53381-22160iGX11#,JZX11#..SED200010-200411

sub53381-22150

main53381-22170iGX11#,JZX11#..WG200201

main53381-22180iGX11#,JZX11#..WG200201

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-22050iGX11#,JZX11#..SED200010-200210

main53388-22060iGX11#,JZX11#..WG200201

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-22040iGX11#,JZX11#..SED200010-200210

main53389-22050iGX11#,JZX11#..WG200201

53801FENDER SUB-ASSY, FRONT RH

main53801-2A490iGX11#,JZX11#..SED200010-200411

main53801-2A510iGX11#,JZX11#..WG200201-200706

53802FENDER SUB-ASSY, FRONT LH

main53802-2A470iGX11#,JZX11#..SED200010-200411

main53802-2A490iGX11#,JZX11#..WG200201-200706

53803ABRACKET SUB-ASSY, FRONT SIDE PANEL, RH

main53803-22050iGX11#,JZX11#..SED200010-200210

53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH

main53804-22050iGX11#,JZX11#..SED200010-200210

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-22010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-22010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-22080iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

53836ABRACE, FRONT FENDER TO APRON, LH

main53835-22080iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

53863SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH

main53863-22010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main53863-22030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200109

53863ASEAL, FR FENDER TO DOOR HINGE, LWR

main53883-22040iGX11#,JZX11#200010-200109

main53883-22050iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200109

53864SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH

main53864-22010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main53864-22030iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200109

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-22100iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-22100iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

53875ALINER, FRONT FENDER, RH

main53875-22110iGX11#,JZX11#..GD,GDG,GDS200010

main53875-22120iJZX110..GDV200010-200604

53876ALINER, FRONT FENDER, LH

main53876-22090iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

53882FSEAL, FRONT FENDER

main53882-22090iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main53882-22120iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200109

8101

9011906722

main90119-06722

9015960427

main90159-60427

9015960477

main90159-60477

9015960496

main90159-60496

9017806002

main90178-06002

9017905025

main90179-05025

9017906274

main90179-06274

9017906328

main90179-06328

9018906013

main90189-06013

9018906066

main90189-06066

9018906067

main90189-06067

9018906150

main90189-06150

9046707166

main90467-07166

9046708011

main90467-08011

9054115015

main90541-15015

9054115023

main90541-15023

91631B0610

main91631-B0610

91641C0614

main91641-C0614

44 parts on this diagram · 2 diagrams in section
