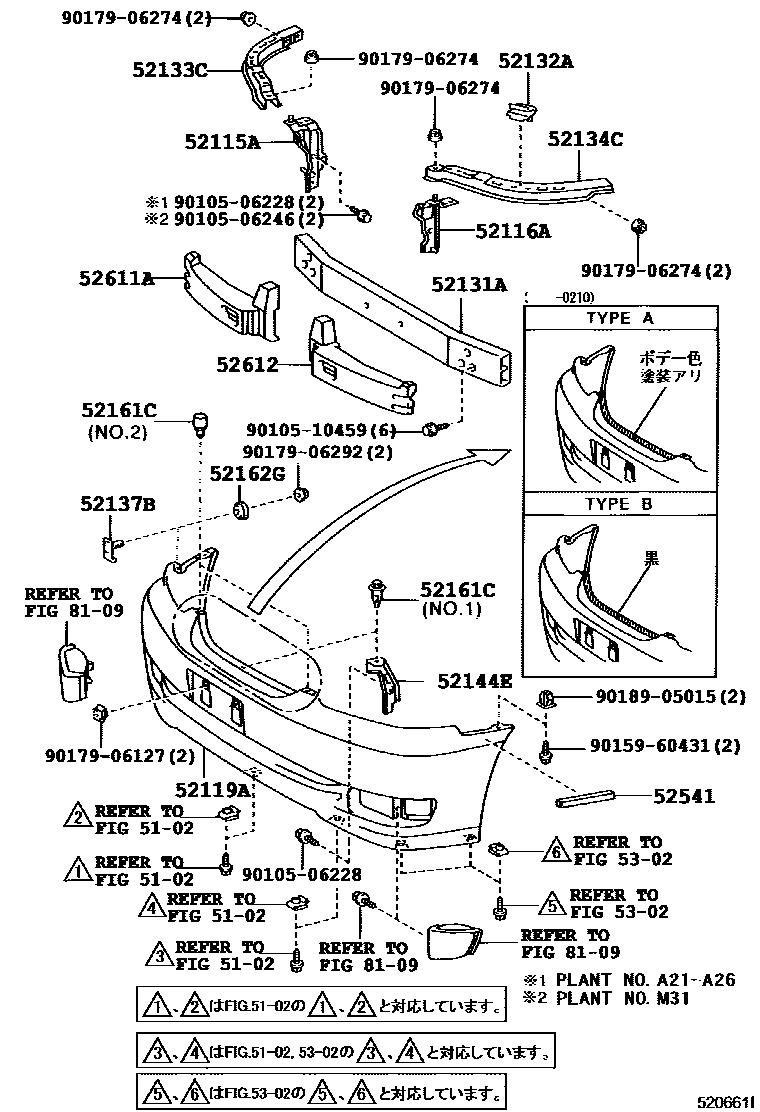

FRONT BUMPER & BUMPER STAY
5102
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52131AREINFORCEMENT, FRONT BUMPER
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52133CREINFORCEMENT, FRONT BUMPER BAR, RH
52134CREINFORCEMENT, FRONT BUMPER BAR, LH
52137BPLATE, FRONT BUMPER BRACKET, NO.1
52144ESTAY, FRONT BUMPER, CENTER
52161CPIECE, FRONT BUMPER
52162GPLATE, REAR BUMPER, NO.1
52541PROTECTOR, FRONT BUMPER
52611AABSORBER, FRONT BUMPER ENERGY, RH
52612ABSORBER, FRONT BUMPER ENERGY, LH
5302
8109
9010506228
main90105-06228
9010506246
main90105-06246
9010510459
main90105-10459
9015960431
main90159-60431
9017906127
main90179-06127
9017906274
main90179-06274
9017906292
main90179-06292
9018905015
main90189-05015
25 parts on this diagram · 2 diagrams in section
