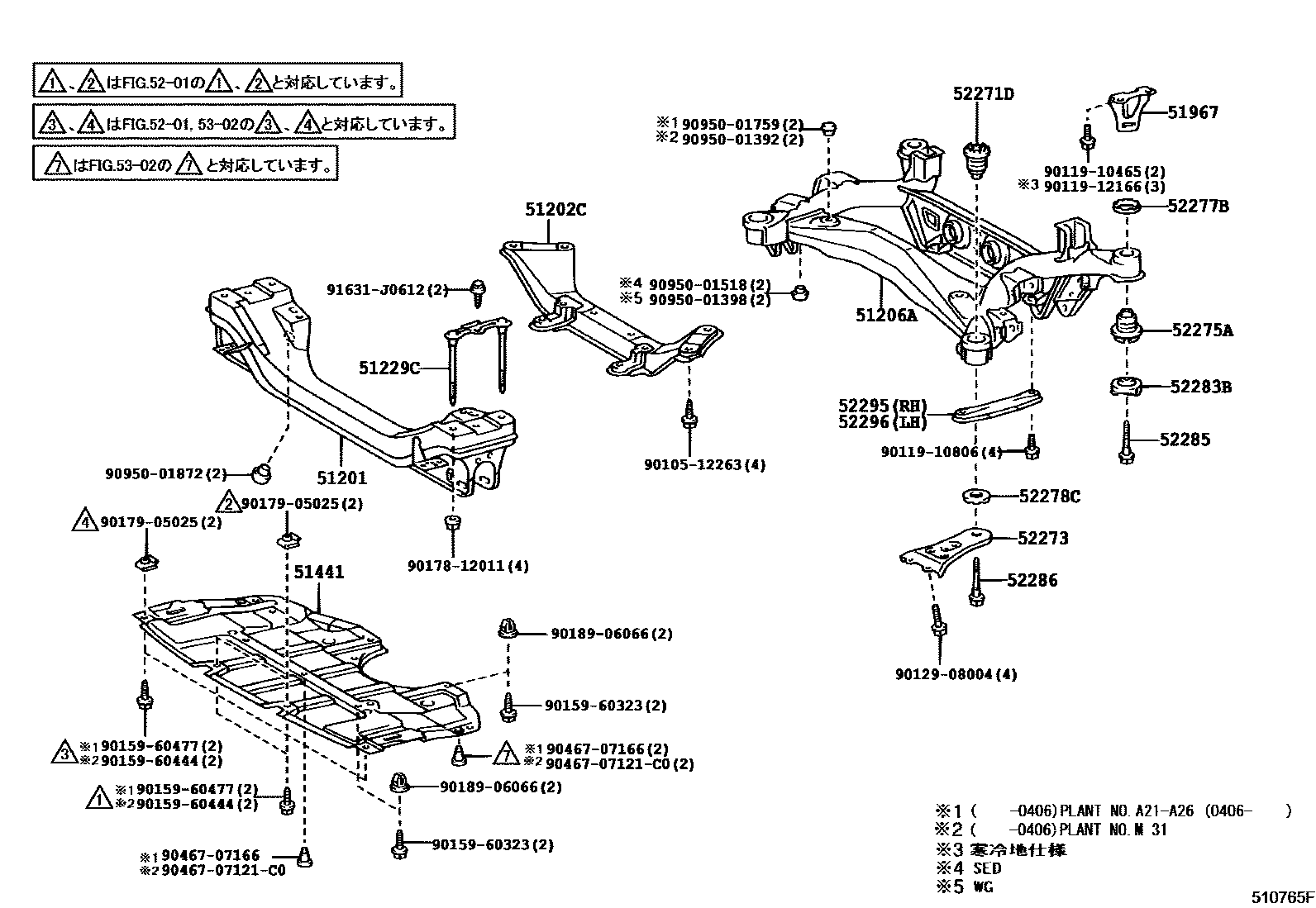

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-22581iGX115,JZX115200010-200110

main51201-22582iGX115,JZX115..SED200210

main51201-51011iJZX110;GX110..GD,IR200010

51202CCROSSMEMBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-22010iGX115,JZX115200010

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-22200iJZX110..5F200010-200210

main51206-51030iJZX110..ATM;GX11#,JZX115..GD,GDG,IR,IRS200010-200504

main51206-53020iGX11#,JZX11#..SED..ATM200210

51229CPLATE, SUSPENSION MEMBER SET

main51229-30010×2iGX115,JZX115200010

51441COVER, ENGINE UNDER, NO.1

main51441-22310iJZX110..GD,GDG,GDS,IRS200010

main51441-22320iJZX110..GDGT,GDV,IRV200010-200604

main51441-22330iGX110..SED200210

main51441-22340iGX115,JZX115200010

51967HOOK, TRANSPORT, REAR

main51967-22070iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

main51967-30040iGX11#,JZX11#..SED200210

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-51010×2iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-51010×2iGX11#,JZX11#..GD,GDG200210

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-22130×2iJZX110..IRV200202-200604

main52275-30080×2iGX110,JZX110..GD,GDG200210

main52275-30090×2iGX11#,JZX11#..IR,IRS200010-200706

main52275-53011×2iJZX110..IRV200201-200202

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30020×2iJZX110..GD,GDG;GX11#,JZX115..SED200210

main52277-53010×2iJZX110..IRV200201-200604

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-51010×2iGX11#,JZX11#..SED200210

52283BSTOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30050×2iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021×2iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-30010×2iGX11#,JZX11#..GD,GDG200210

main52286-53010×2iGX110,JZX110..GDS,GDV200210

main52286-53020×2iGX115,JZX115200508

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

9010512263

main90105-12263

9011910465

main90119-10465

9011910806

main90119-10806

9011912166

main90119-12166

9012908004

main90129-08004

9015960323

main90159-60323

9015960444

main90159-60444

9015960477

main90159-60477

9017812011

main90178-12011

9017905025

main90179-05025

9018906066

main90189-06066

9046707121C0

main90467-07121C0

9046707166

main90467-07166

9095001392

main90950-01392

9095001398

main90950-01398

9095001518

main90950-01518

9095001759

main90950-01759

9095001872

main90950-01872

91631J0612

main91631-J0612

35 parts on this diagram · 3 diagrams in section
