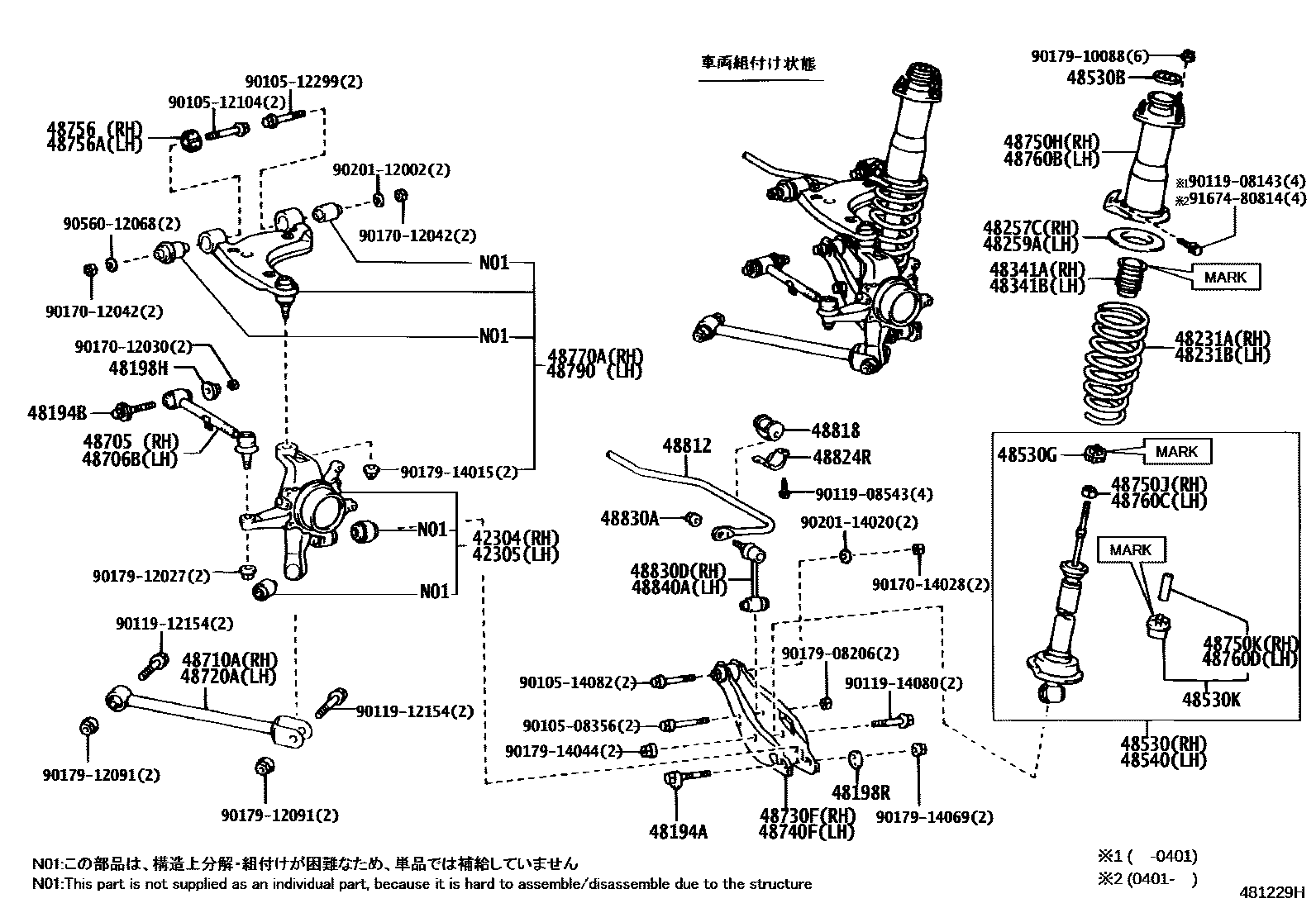

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-22040iGX110..GD,IR;JZX110..GD,GDG,GDS,IRS200010

main42304-51010iGX115,JZX115;JZX110..GDGT,GDV,IRV200010

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-22040iGX110..GD,IR;JZX110..GD,GDG,GDS,IRS200010

main42305-51010iGX115,JZX115;JZX110..GDGT,GDV,IRV200010

48194ACAM, REAR SUSPENSION CAMBER ADJUST, NO.1

main48190-30040×2iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48194BCAM, REAR SUSPENSION CAMBER ADJUST, NO.3

main48190-30060×2iGX11#,JZX11#..SED200210

48198HCAM, CAMBER ADJUST, NO.2

main48198-30080×2iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-30060×2iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48231ASPRING, COIL, REAR RH

main48231-2A400iGX110..GD200010-200210

main48231-2A430iGX115,JZX115..SED200010-200210

main48231-2A450iJZX110..GDV200010-200210

main48231-2A460iJZX110..GD,GDG200010-200210

main48231-2A470iJZX110..GDGT200010-200210

main48231-2A480iJZX110..GDS200010-200210

main48231-2A490iGX110..IR200201

main48231-2A500iGX110..IR200201-200501

main48231-2A510iJZX110..WG200201

main48231-2A530iJZX110..IRS200201-200501

main48231-2A550iGX115..IR200201-200501

main48231-2A560iGX115,JZX115..WG200201

main48231-2A600iGX110..SED200210

main48231-2A610iJZX110..GDS,GDV200210

48231BSPRING, COIL, REAR LH

main48231-2A400iGX110..GD200010-200210

main48231-2A430iGX115,JZX115..SED200010-200210

main48231-2A450iJZX110..GDV200010-200210

main48231-2A460iJZX110..GD,GDG200010-200210

main48231-2A470iJZX110..GDGT200010-200210

main48231-2A480iJZX110..GDS200010-200210

main48231-2A490iGX110..IR200201

main48231-2A500iGX110..IR200201-200501

main48231-2A510iJZX110..WG200201

main48231-2A530iJZX110..IRS200201-200501

main48231-2A550iGX115..IR200201-200501

main48231-2A560iGX115,JZX115..WG200201

main48231-2A600iGX110..SED200210

main48231-2A610iJZX110..GDS,GDV200210

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-30060iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-30060iGX11#,JZX11#..SED200210

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-22140iGX11#,JZX11#..WG200201

main48341-30100iGX11#,JZX11#..SED200010-200210

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-22140iGX11#,JZX11#..WG200201

main48341-30100iGX11#,JZX110..IR,IRS200201-200501

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-29825iGX115,JZX11#..4FC..(GD,GDG)200210

main48530-29845iJZX110..GDG200010-200210

main48530-29865iGX110..GD200210

main48530-29875iGX115,JZX115200010-200108

main48530-80070iGX110..IR200201-200204

main48530-80073iGX115,JZX115..WG200201-200204

main48530-80074iGX11#,JZX110..IR,IRS200201-200501

main48530-80076iJZX110..WG200201-200204

main48530-80081iGX110..IR200204-200501

main48530-80082iJZX110..WG200204-200501

main48530-80083iGX115,JZX115..WG200204-200501

main48530-80102iGX110..GDS200210

main48530-80103iJZX110..GDS,GDV200210

main48530-80319iGX110200501-200706

main48530-80320iGX115,JZX115200501-200706

main48530-80321iJZX110..IRS200501-200706

main48530-80322iJZX110..IRV200501-200604

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iGX11#,JZX11#..SED200210

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01062×2iGX110,JZX110..GDS,GDV200210

main90948-01068×2iGX11#,JZX11#..GD,GDG200210

main90948-01073×2iGX11#,JZX11#..IR,IRS200201

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-01063×2iGX110,JZX110..GDS,GDV200210

main90948-01069×2iJZX115..GDG;GX11#,JZX110..GD,GDG,GDGT,IR,IRS200010-200501

main90948-01085×2iGX11#,JZX11#..WG200201

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-29825iGX115,JZX115..SED200108-200210

main48530-29845iJZX110..GDG200210

main48530-29865iGX110..GD200210

main48530-29875iGX115,JZX115200010-200108

main48530-80070iGX110..IR200201-200204

main48530-80073iGX115,JZX115..WG200201-200204

main48530-80074iGX11#,JZX110..IR,IRS200201-200501

main48530-80076iJZX110..WG200201-200204

main48530-80081iGX110..IR200204-200501

main48530-80082iJZX110..WG200204-200501

main48530-80083iGX115,JZX115..WG200204-200501

main48530-80102iGX110..GDS200210

main48530-80103iJZX110..GDS,GDV200210

main48530-80319iGX110200501-200706

main48530-80320iGX115,JZX115200501-200706

main48530-80321iJZX110..IRS200501-200706

main48530-80322iJZX110..IRV200501-200604

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30080iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48705-30080iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30210iJZX115;GX11#,JZX110..GD,GDG,GDGT,IR200010

main48710-53010iJZX110..GDS,GDV,IRS,IRV200010

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30210iJZX115;GX11#,JZX110..GD,GDG,GDGT,IR200010

main48710-53010iGX110,JZX110..GDS,GDV200210

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-51010iGX11#,JZX11#..SED200210

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-51010iGX11#,JZX11#..SED200210

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200301

main90179-12127iGX11#,JZX11#..WG200301

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-12050iJZX110..GDS,GDV200010-200210

48756PIECE, REAR SUSPENSION ARM, RH

main48756-30010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48756APIECE, REAR SUSPENSION ARM, LH

main48756-30010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200301

main90179-12127iGX11#,JZX11#..WG200301

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-12050iJZX110..GDS,GDV200010-200210

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-39035iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-39035iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48812BAR, STABILIZER, REAR

main48812-30350iGX11#,JZX110..IR,IRS200201-200501

main48812-51010iJZX110..GDGT,GDS,GDV,IRV200010-200604

main48812-51020iGX11#,JZX11#..IR,IRS200201-200706

main48812-53020iGX110,JZX110..GDS,GDV200210-200411

48818BUSH, STABILIZER, REAR

main48818-30100×2iJZX110..GDGT,GDS,GDV,IRV200010-200604

main48818-30120×2iGX11#,JZX11#..IR,IRS200201-200706

main48818-30140×2iGX11#,JZX110..IR,IRS200201-200501

main48818-53030×2iGX110,JZX110..GDS,GDV200210-200411

48824RBRACKET, STABILIZER(FOR REAR)

main48832-30050×2iGX11#,JZX115..WG;JZX110..GDGT,GDS,GDV,IRS,IRV200010

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×2iGX11#,JZX115..WG;JZX110..GDGT,GDS,GDV,IRS,IRV200010

48830DLINK ASSY, REAR STABILIZER, RH

main48830-51010iGX11#,JZX115..WG;JZX110..GDGT,GDS,GDV,IRS,IRV200010

48840ALINK ASSY, REAR STABILIZER, LH

main48830-51010iGX11#,JZX115..WG;JZX110..GDGT,GDS,GDV,IRS,IRV200010

9010508356

main90105-08356

9010512104

main90105-12104

9010512299

main90105-12299

9010514082

main90105-14082

9011908143

main90119-08143

9011908543

main90119-08543

9011912154

main90119-12154

9011914080

main90119-14080

9017012030

main90170-12030

9017012042

main90170-12042

9017014028

main90170-14028

9017908206

main90179-08206

9017910088

main90179-10088

9017912027

main90179-12027

9017912091

main90179-12091

9017914015

main90179-14015

9017914044

main90179-14044

9017914069

main90179-14069

9020112002

main90201-12002

9020114020

main90201-14020

9056012068

main90560-12068

9167480814

main91674-80814

61 parts on this diagram · 2 diagrams in section
