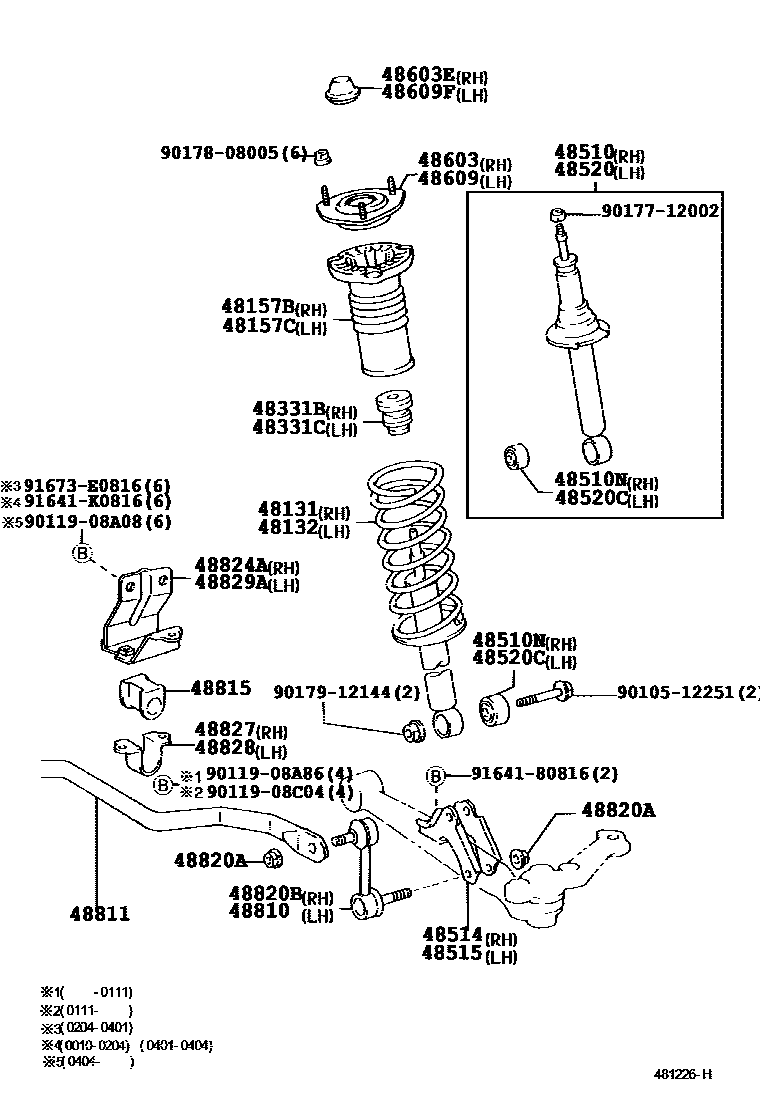

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

48131SPRING, FRONT COIL, RH

main48131-2C250iJZX110..GDGT200010-200210

main48131-2C260iJZX110..GD200210

main48131-2C270iGX110..GD200010-200210

main48131-2C280iJZX110..GDV200010-200210

main48131-2C290iJZX110..GDS200010-200210

main48131-2C310iJZX115..GDG200210

main48131-2C320iGX115..GD200210

main48131-2C330iJZX110..GDG200210

main48131-2C340iGX110..IR200201

main48131-2C360iJZX110..IRV200201-200604

main48131-2C370iJZX110..IRS200201

main48131-2C390iGX115..IR200201

main48131-2C410iJZX115..IRS200201

main48131-2C440iGX110..GDS200210

main48131-2C450iJZX110..GDV200210

main48131-2C460iJZX110..GDS200210

main48131-2C470iGX110..GD200210

48132SPRING, FRONT COIL, LH

main48131-2C250iJZX110..GDGT200010-200210

main48131-2C260iJZX110..GD200010-200210

main48131-2C270iGX110..GD200010-200210

main48131-2C280iJZX110..GDV200010-200210

main48131-2C290iJZX110..GDS200010-200210

main48131-2C310iJZX115..GDG200210

main48131-2C320iGX115..GD200210

main48131-2C330iJZX110..GDG200010-200210

main48131-2C340iGX110..IR200201

main48131-2C360iJZX110..IRV200201-200604

main48131-2C370iJZX110..IRS200201

main48131-2C390iGX115..IR200201

main48131-2C410iJZX115..IRS200201

main48131-2C440iGX110..GDS200210

main48131-2C450iJZX110..GDV200210

main48131-2C460iJZX110..GDS200210

main48131-2C470iGX110..GD200210

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-22040iJZX110;GX110..GD,IR200010

main48157-22050iGX115,JZX115200010

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-22040iJZX110;GX110..GD,IR200010

main48157-22050iGX115,JZX115..SED200210

48331BBUMPER, FRONT SPRING, RH

main48331-30130iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

48331CBUMPER, FRONT SPRING, LH

main48331-30130iGX11#,JZX11#..SED200210

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-29825iJZX110..GDG200210-200411

main48510-29835iJZX110..GD200210-200411

main48510-29845iGX110..GD200010-200210

sub48510-59535

main48510-29855iGX110,JZX110..GDS,GDV,IR200010-200210

main48510-29885iJZX115200010-200108

main48510-29895iGX115200010-200108

main48510-80048iJZX110..WG200201

main48510-80060iJZX115..GDG200108-200210

main48510-80061iGX115..GD200210-200411

main48510-80067iGX115..IR200201

main48510-80069iJZX115..IRS200201

main48510-80097iGX110,JZX110..GDS,GDV200210-200411

main48510-80098iGX110..GD200210-200411

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90389-12016iGX110..GD;JZX110..GDG,GDGT,GDS,GDV200010-200210

48514BRACKET, FRONT SHOCK ABSORBER, LOWER RH

main48514-22010iJZX110;GX110..GD,IR200010

main48514-22020iGX115,JZX115..SED200210

48515BRACKET, FRONT SHOCK ABSORBER, LOWER LH

main48515-22010iGX110,JZX110..SED200210

main48515-22020iGX115,JZX115..SED200210

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-29825iJZX110..GDG200210-200411

main48510-29835iJZX110..GD200210-200411

main48510-29845iGX110..GD200010-200210

sub48510-59535

main48510-29855iGX110,JZX110..GDS,GDV,IR200010-200210

main48510-80048iJZX110..WG200201

main48510-80097iGX110,JZX110..GDS,GDV200210-200411

main48510-80098iGX110..GD200210-200411

main48520-29525iJZX115200010-200108

main48520-29535iGX115200010-200108

main48520-29615iJZX115..GDG200210-200411

main48520-29625iGX115..GD200108-200210

main48520-29635iGX115..IR200201

main48520-29655iJZX115..IRS200201

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90389-12016iGX110..GD;JZX110..GDG,GDGT,GDS,GDV200010-200210

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-22130iGX115,JZX115..SED200210

main48680-22150iGX110,JZX110..GDS,GDV200210

main48680-30160iGX110,JZX110..GD,GDGT,IR200010

main48680-30170iJZX110..GDG200010-200210

48603EPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT RH)

main90950-01659iGX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDGT,GDS,GDV,IRS,IRV200010

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-22150iGX110,JZX110..GDS,GDV200210

main48680-22160iGX115,JZX115..SED200210

main48680-30160iGX110,JZX110..GD,GDGT,IR200010

main48680-30170iJZX110..GDG200210

48609FPLUG, HOLE(FOR FRONT SUSPENSION SUPPORT LH)

main90950-01659iJZX115..GDG;GX11#,JZX110..GD,GDS,GDV200210

48810LINK ASSY, FRONT STABILIZER, LH

main48810-22041iGX115,JZX115..SED200210

main48820-22041iJZX110;GX110..GD,IR200010

48811BAR, STABILIZER, FRONT

main48811-22400iGX110..GDS200210

main48811-22550iGX110,JZX110..GDGT,GDV,IR,IRS,IRV200010-200706

main48811-22560iGX115,JZX115..SED200210

main48811-51010iGX110..GD;JZX110..SED200210

main48811-53030iGX115,JZX115..WG200201-200706

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22240×2iGX110,JZX110..SED200210

main48815-22250×2iGX115,JZX115..SED200210

main48815-22260×2iGX110,JZX110..GDGT,GDV,IR,IRS,IRV200010-200706

main48815-53020×2iGX115,JZX115..WG200201-200706

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054×2iGX110,JZX110..SED200210

main90179-12047×2iGX115,JZX115..SED200210

main90179-12051×2iGX115,JZX115..SED200210

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-22041iGX110,JZX110..SED200210

main48820-22051iGX115,JZX115..SED200210

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48809-30020iGX110,JZX110200010-200111

main48809-30021iJZX110;GX110..GD,IR200111

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48824-22060iGX115,JZX115..SED200210

main48824-22090iGX110,JZX110..SED200210

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48824-22060iGX115,JZX115..SED200210

main48824-22090iJZX110;GX110..GD,IR200010

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48809-30030iGX110,JZX110200010-200111

main48809-30031iJZX110;GX110..GD,IR200111

9010512251

main90105-12251

9011908A08

main90119-08A08

9011908A86

main90119-08A86

9011908C04

main90119-08C04

9017712002

main90177-12002

9017808005

main90178-08005

9017912144

main90179-12144

9164180816

main91641-80816

91641K0816

main91641-K0816

91673E0816

main91673-E0816

35 parts on this diagram · 3 diagrams in section
