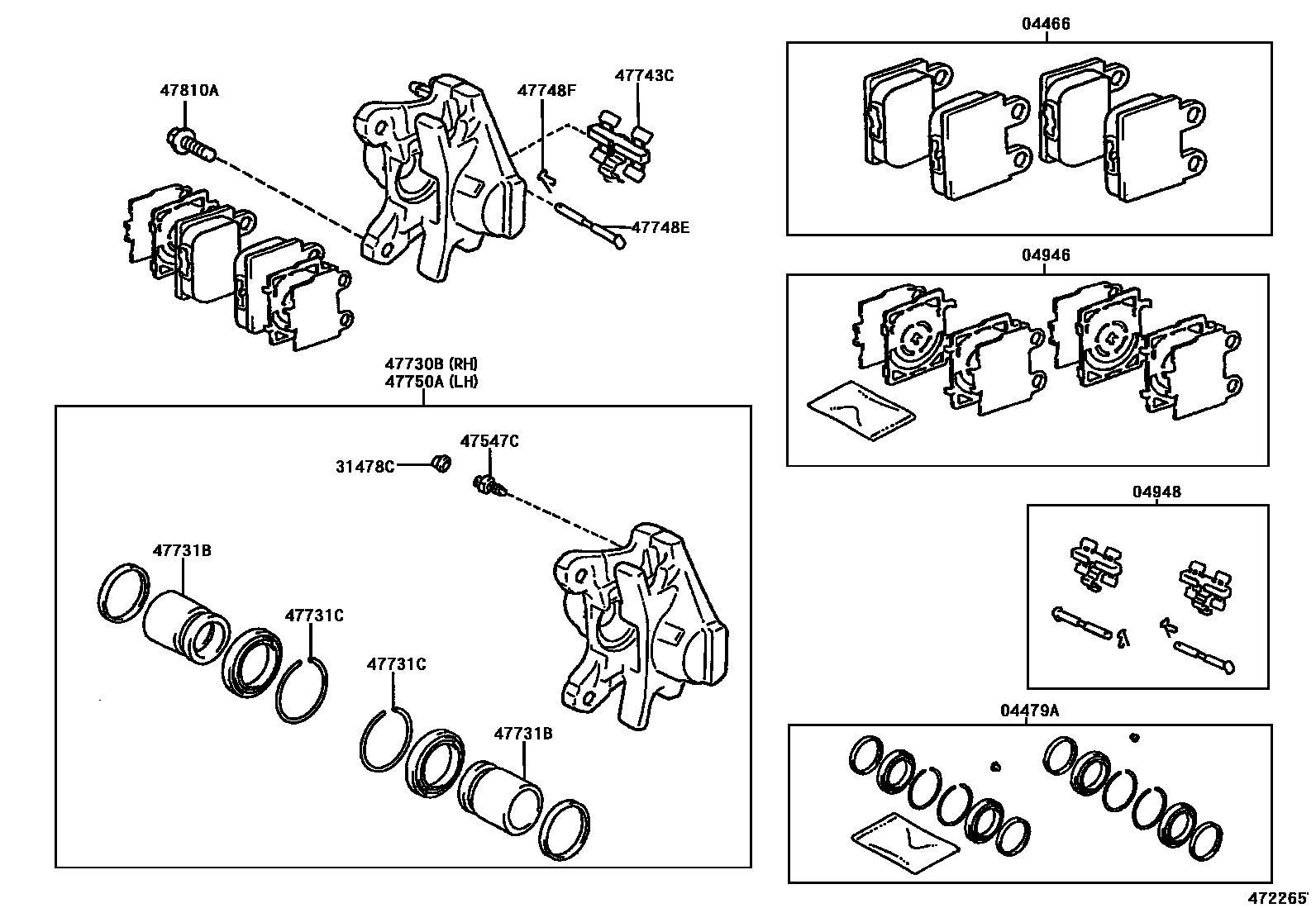

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-22180iGX11#,JZX11#..IR,IRS200210-200411

main04466-30151iGX11#,JZX11#..GD,GDG,GDS200010-200201

main04466-30161iJZX110..GDGT,GDV200010-200201

main04466-30170iJZX110..GDV200201-200604

main04466-51011iGX11#,JZX11#..GD,GDG,GDS,IR,IRS200201-200210

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30231iGX11#,JZX11#..SED200010-200411

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30071iGX11#,JZX11#..GD,GDG,GDS200010-200201

main04946-30090iJZX110..GDGT,GDV200010-200201

main04946-53010iGX11#,JZX11#..SED200201-200411

04948FITTING KIT, DISC BRAKE, REAR

main04948-30071iJZX110..GDGT,GDV200010-200411

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030iGX11#,JZX11#..SED200010-200411

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-30470iJZX110..IRV200010-200411

main47730-30480iGX11#,JZX11#..GD,GDG,GDS200010-200411

47731BPISTON, REAR DISC BRAKE

main47731-30190iGX11#,JZX11#..SED200010-200411

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iGX11#,JZX11#..SED200010-200411

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-30030iGX11#,JZX11#..SED200010-200411

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-30011iGX11#,JZX11#..SED200010-200411

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12028iGX11#,JZX11#..WG200010-200411

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-30470iJZX110..GDGT,GDV200010-200411

main47750-30480iGX11#,JZX11#..GD,GDG,GDS200010-200411

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

14 parts on this diagram · 2 diagrams in section
