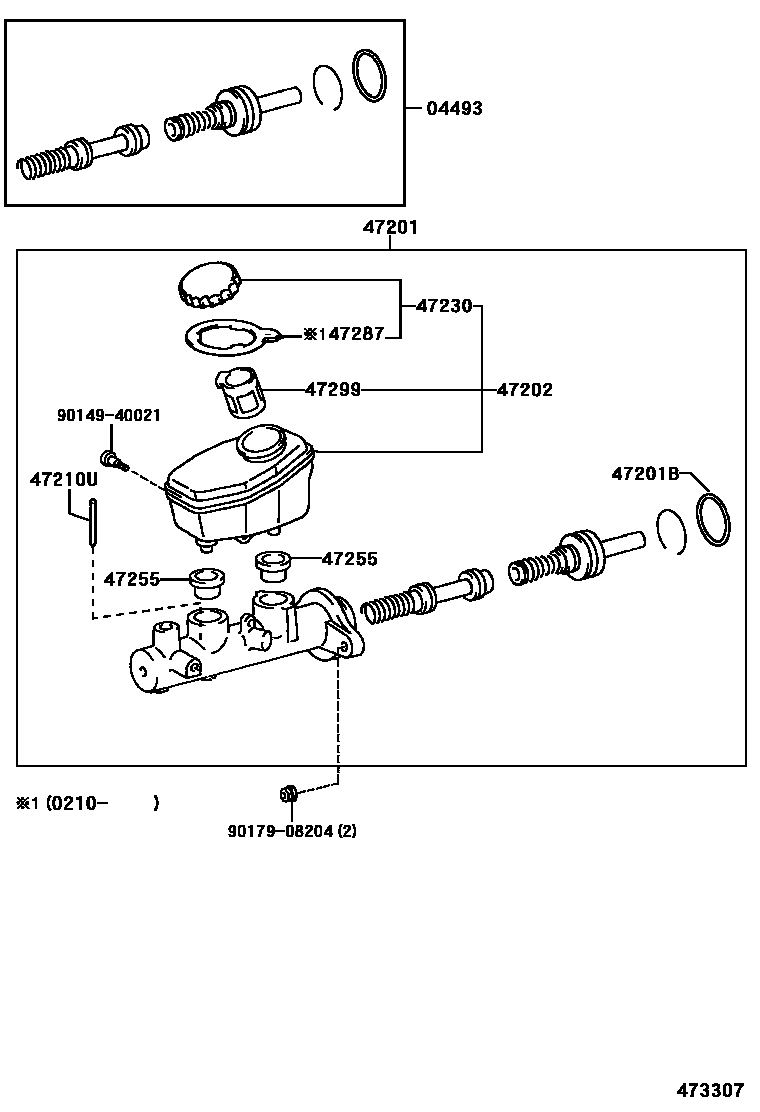

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-2A010iGX110..SED200010

main04493-2A020iJZX110..GDGT,IRV200010-200604

main04493-2A030iJZX110..GDGT,GDV,IRV200010-200604

main04493-30290iJZX110..GD,GDG,IRS200010

main04493-30300iGX115,JZX11#..GD,GDG,IR,IRS200010

main04493-30300iGX115,JZX11#..GD,GDG200010-200210

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-2A040iJZX110..GDS,IRS200010-200210

sub47201-2A041

main47201-2A041iJZX110..IRS200210-200501

main47201-2A050iGX110200010-200210

sub47201-2A051

main47201-2A051iGX110..IR200210

main47201-2A060iJZX110..GDGT,IRV200010-200210

main47201-2A070iJZX110..GDGT,GDV,IRV200010-200210

sub47201-2A071

main47201-2A071iJZX110..IRV200210-200604

main47201-2A080iGX115,JZX11#..IR,IRS200210

main47201-2A090iJZX110..IRV200210-200604

main47201-30741iGX115,JZX11#..GD,GDG,GDS,IR,IRS200010-200210

main47201-50270iJZX110..GD,GDG,IRS200010-200210

main47201-50280iJZX110..GD,GDG200210

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iGX11#,JZX11#..WG200010-200210

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-22100iGX11#,JZX11#..IR,IRS200210

main47220-30150iJZX110..GDV,IRV200010-200210

main47220-30150iJZX110..GDV,IRV200010-200210

main47220-30160iGX11#,JZX11#..GD,GDG,GDS,IR,IRS200010-200210

main47220-50150iJZX110..WG200210

main47220-50150iJZX110..GDS,GDV200210

main47220-50150iJZX110..GDS,GDV200210

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iGX11#,JZX11#..WG200010-200210

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iGX11#,JZX11#..SED200210

sub47230-47090

main47230-24010iGX11#,JZX11#200010-200210

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGX11#,JZX11#..SED200010-200210

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iGX11#,JZX11#..WG200210

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGX11#,JZX11#200010-200210

9014940021

main90149-40021

9017908204

main90179-08204

11 parts on this diagram · 1 diagram in section
