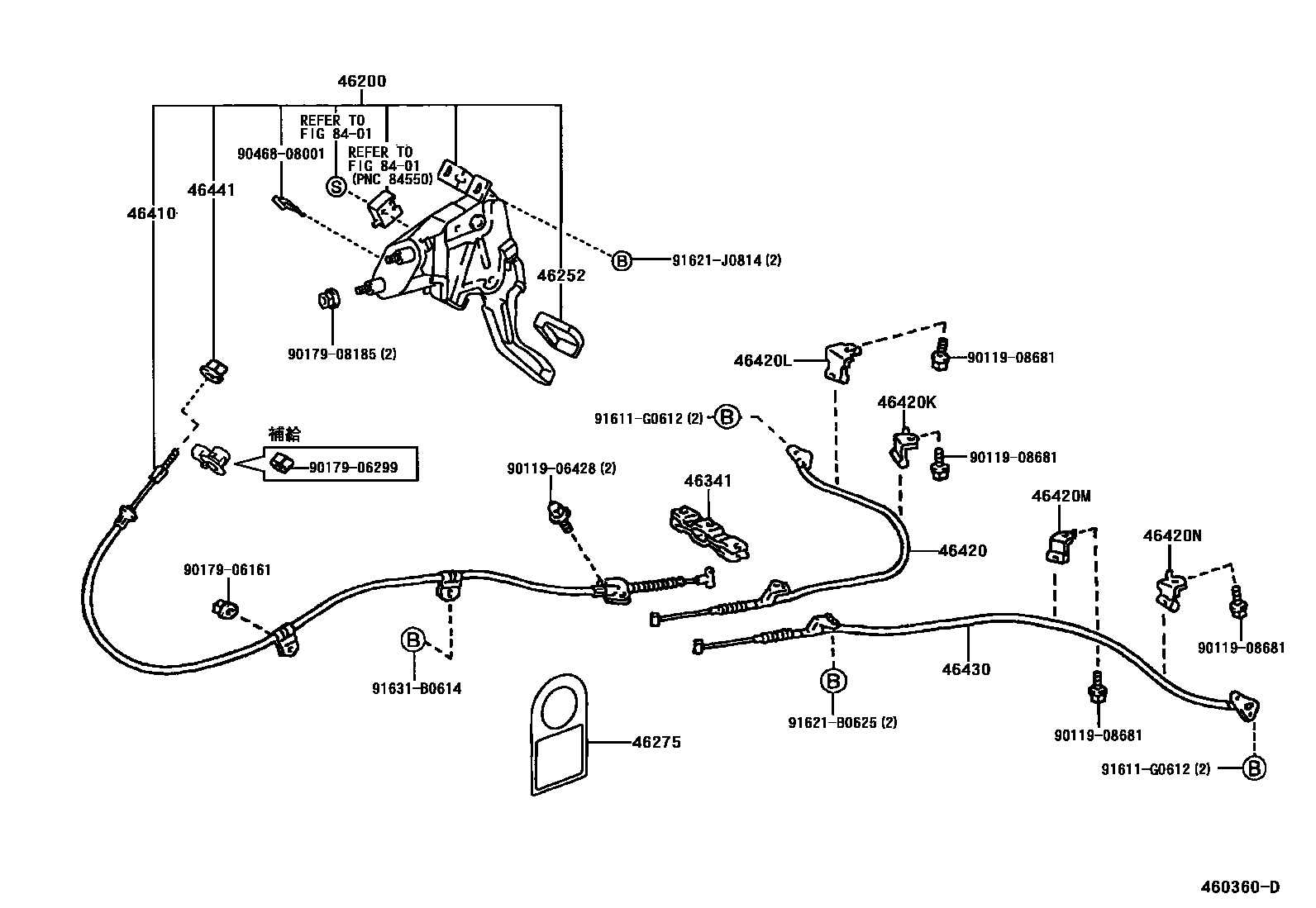

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-22140iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010

46252PAD, PARKING PEDAL

main46252-63010iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-47010iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010

46341EQUALIZER, PARKING BRAKE

main46341-24010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22270iGX11#,JZX11#..GD,GDG,GDGT,IR,IRS,IRV200010

main46410-22280iJZX110..GDS,GDV200010-200210

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-51011iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-51020iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main46431-51010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main46431-51020iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-51011iGX11#,JZX11#..SED200010

46441NUT, WIRE ADJUSTING, NO.1

main46441-51010iGX11#,JZX11#..GD,GDG200010

8401

9011906428

main90119-06428

9011908681

main90119-08681

9017906161

main90179-06161

9017906299

main90179-06299

9017908185

main90179-08185

9046808001

main90468-08001

91611G0612

main91611-G0612

91621B0625

main91621-B0625

91621J0814

main91621-J0814

91631B0614

main91631-B0614

23 parts on this diagram · 3 diagrams in section
