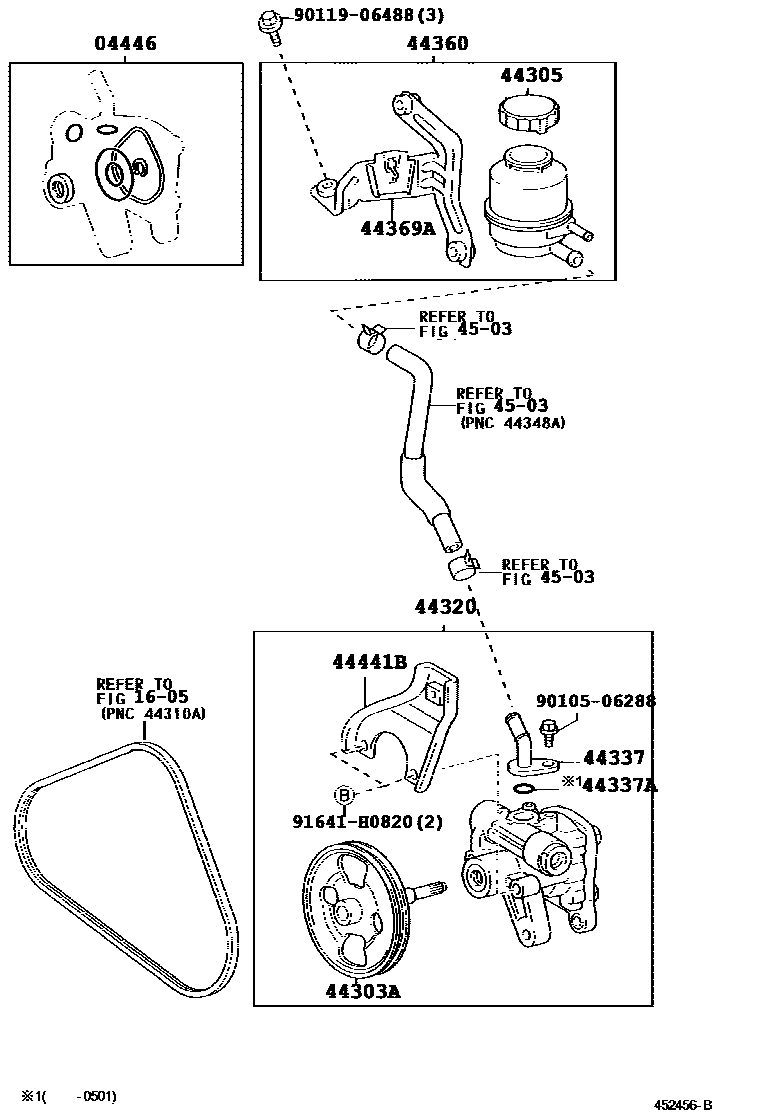

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-22070iGX11#..GD,IR200010

main04446-30120iJZX11#..SED200010-200501

main04446-60210iJZX11#200501

1605

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-22030iGX11#..IR200010-200210

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iGX11#..SED200010

sub44305-22050

main44305-28020iJZX110..GDV200010-200604

sub44305-28050

main44305-50010iJZX11#..IRS200010-200210

sub44305-50020

44320PUMP ASSY, VANE

main44310-22650iGX11#..SED200010

main44320-30620iJZX110..GDV200010-200210

main44320-51020iJZX11#..GD,GDG,GDS200010-200210

44337UNION, POWER STEERING SUCTION PORT

main44337-10071iJZX110..GDGT,GDV200010-200210

main44337-22150iGX11#..GD200010-200210

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iJZX11#200010

main90301-15022iGX11#..GD,IR200010-200501

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-30280iJZX11#..GD,GDG,GDS200010-200210

main44360-30170iJZX110..GDV200010-200604

main44360-30180iGX11#..GD,IR200010

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-30050iJZX110..GDV200010-200604

main44390-53010iGX11#..GD,IR200010

44441BBRACKET, PUMP, FRONT

main44441-22060iGX11#..SED200010

main44441-30080iJZX11#..SED200010-200210

4503

9010506288

main90105-06288

9011906488

main90119-06488

91641H0820

main91641-H0820

14 parts on this diagram · 3 diagrams in section
