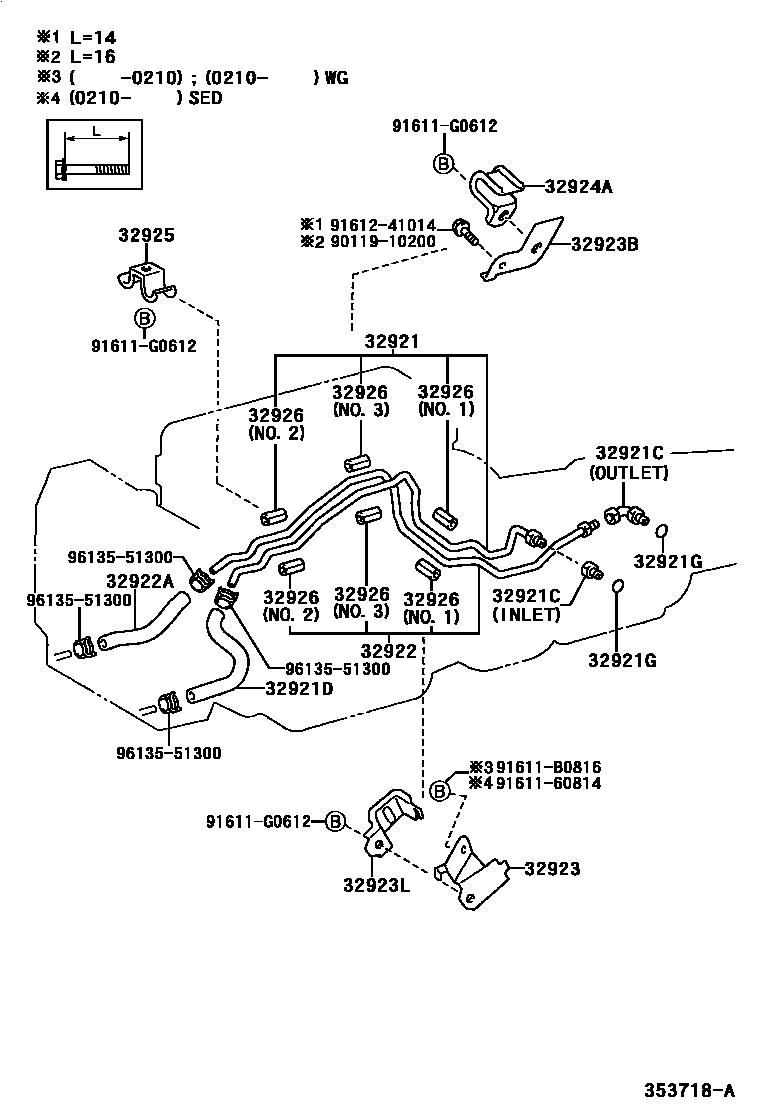

OIL COOLER & TUBE (ATM)

0001 1A42DE 0002 1A340H 0003 1A340E,A650E 0004 1A343E 0005 1A340H

32921TUBE, OIL COOLER INLET, NO.1

main32921-22590iJZX110..5FC200010-200106

main32921-22600iGX115..GD200210-200411

main32921-22610iGX110..GD,IR200010

main32921-22760iJZX110..4FC..(GDGT,GDV,IRV)200010-200604

main32921-30770iJZX115200010

main32921-51030iJZX110..GD200112-200508

main32921-53080iJZX110..IRS200509

32921CUNION(FOR OIL COOLER TUBE)

main90404-14021iGX110..SED200210-200411

main90404-16029iJZX110..ATM200010-200706

main90407-14003iGX110..GD,IR200010-200706

main90407-16009iGX115,JZX11#..SED..ATM200210-200411

main90407-16012iGX115,JZX115200010-200706

32921DHOSE(FOR OIL COOLER INLET)

main32941-22520iJZX110..4FC..(GDGT,GDV,IRV)200010-200604

main32941-22530iJZX110..GD,GDG,GDS200010-200104

main32943-22060iJZX115..GDG200210-200411

main90445-15058iGX110..GD,IR200010

main90445-15079iGX115200010

main90445-17069iJZX110..5FC200106

main90445-17101iJZX110..5FC200104-200106

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGX110..GD,IR200010-200706

main90301-11006×2iGX115,JZX11#..ATM200010-200706

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22790iJZX110..GD,GDG,GDS,IRS200010-200508

main32922-22810iJZX115..GDG200210-200411

main32922-22820iGX115..GD200210-200411

main32922-22830iGX110..SED200210-200411

main32922-22840iJZX110..4FC..(GDGT,GDV,IRV)200010-200604

main32922-53060iJZX110..IRS200509

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-22420iJZX110..4FC..(GDGT,GDV,IRV)200010-200604

main32943-22070iJZX115200010

main90445-15047iGX115..GD200210-200411

main90445-15054iGX110..GD,IR200010

main90445-17083iJZX110..IRS200509

main90445-17096iJZX110..GD,GDG,GDS200210-200411

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-22080iGX110..SED200210

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32924-53020iGX110..GD,IR200010

main32929-30140iJZX110..4FC..GDV200210

main32929-51010iJZX11#..GD,GDG,GDS200210

32923LCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3

main32929-22050iGX11#,JZX115..GD,GDG,IR,IRS;JZX110..4FC..(GDGT,GDV,IRV)200010

main32929-50020iJZX110..IRS200010

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30120iGX110..GD,IR200010

32925CLAMP, OIL COOLER TUBE, NO.3

main90462-12047iGX115..GD200210

main90462-12085iGX110..SED200210

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010×2iGX110..SED200210-200411

main32926-22020×2iGX110..SED200210-200411

main32926-22050×2iGX110..GD,IR200010

main32926-30020×2iJZX110..4FC..GDV;GX115,JZX115..SED200210-200411

main32926-30030×4iJZX110..4FC..GDV;GX115,JZX115..SED200210-200411

9011910200

main90119-10200

9161160814

main91611-60814

91611B0816

main91611-B0816

91611G0612

main91611-G0612

9161241014

main91612-41014

9613551300

main96135-51300

18 parts on this diagram · 5 diagrams in section
