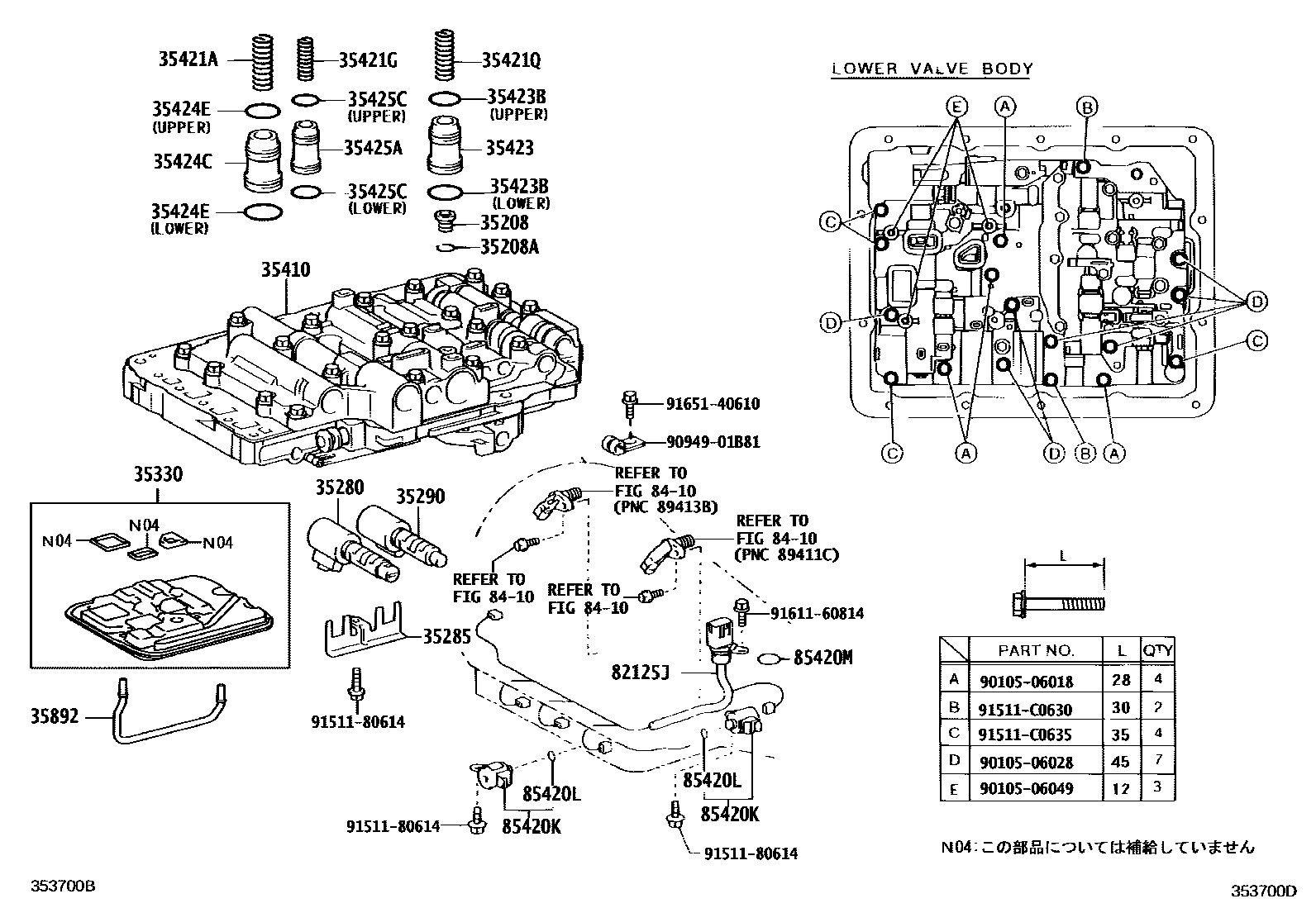

VALVE BODY & OIL STRAINER (ATM)

0001 1A42DE 0002 1A340H 0003 1A340H 0004 1A340E,A343E 0005 1A340E,A343E 0006 1A650E 0007 1A650E

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iJZX110..GD200112-200706

main35208-28010iGX110..GD,IR200010-200706

main35208-30010iJZX11#..4FC..(GD,GDG)200010-200112

main35208-35010iGX115..GD200210-200411

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iGX11#,JZX11#..SED..ATM200210-200411

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-22010iGX110..GD,IR200010

main35280-30040iJZX110..5FC200010

35285PLATE, SOLENOID LOCK

main35285-22010iGX110..GD,IR200010-200706

main35285-24010iGX115200205-200706

main35285-24020iJZX11#..4FC200010-200706

main35285-30060iJZX110..SED..5FC200210-200411

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-22010iGX110..GD,IR200010-200706

main35290-30040iJZX110..SED..5FC200210-200411

main35290-60020iGX115,JZX11#..SED..4FC200210-200411

35330STRAINER ASSY, VALVE BODY OIL

main35330-22020iGX115,JZX115..SED200210-200411

main35330-30060iJZX110..4FC200010-200604

main35330-30070iJZX110..5FC200010-200706

main35330-53010iGX110..SED200210-200411

35410BODY ASSY, TRANSMISSION VALVE

main35410-22690iJZX110..5FC200010-200706

main35410-22750iJZX110..4FC..(GDGT,GDV,IRV)200010-200604

main35410-22760iGX110..SED200210-200411

main35410-22770iGX115..GD200210-200411

main35410-3A040iJZX110..GD200010-200210

main35410-3A050iJZX115200010-200201

main35410-3A120iJZX115..GDG200210-200411

35421ASPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1)

main90501-20162iGX110..GD,IR200010

35421GSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2)

main90501-26092iGX110..GD,IR200010

35421QSPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3)

main90501-23147iGX110..SED200210-200411

35423PISTON, B-2 ACCUMULATOR

main35421-26010iGX110..GD,IR200010-200706

main35423-30030iGX115,JZX11#..ATM200010-200706

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iGX11#,JZX11#..SED..ATM200210-200411

main90301-29011iGX110..GD,IR200010-200706

main90301-31010iGX115,JZX11#..SED..ATM200210-200411

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iGX110..GD,IR200010

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21012iGX110..GD,IR200010

main90301-26012iGX110..GD,IR200010

35425APISTON, C-2 ACCUMULATOR

main35425-30020iGX115,JZX11#..4FC200010-200706

main35425-40010iJZX110..SED..5FC200210-200411

main35441-30010iGX110..GD,IR200010-200706

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iGX110..GD,IR200010-200706

main90301-25010iGX115,JZX11#..SED..4FC200210-200411

main90301-26012iGX110..GD,IR200010-200706

main90301-31010iGX115,JZX11#..4FC200010-200706

main90903-01001iJZX110..SED..5FC200210-200411

main90903-01003iJZX110..5FC200010-200706

35892TUBE, OVERDRIVE BRAKE

main35892-22010iGX110..GD,IR200010

82125JWIRE, TRANSMISSION

main82125-22250iGX110..GD,IR200010-200706

main82125-30440iGX115,JZX115..SED200210-200411

main82125-30460iJZX110..SED..5FC200210-200411

8410

85420KSOLENOID ASSY, TRANSMISSION

main35250-30030×2iGX110..SED200210-200411

main35250-30050iJZX110..4FC..(GDGT,GDV,IRV)200206-200706

main35250-30070iJZX110..4FC..(GDGT,GDV,IRV)200206-200706

main35250-50010iJZX110..SED..5FC200210-200411

main35250-50030iJZX110..5FC200108-200706

main85420-22130×2iGX110200010-200108

main85420-22150iJZX115200010-200205

main85420-22170iGX115,JZX110..4FC200010-200206

main85420-30240iJZX110..5FC200010-200108

main85420-30260iJZX110..5FC200010-200108

main85420-30270iJZX110..5FC200010-200108

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004×2iGX11#..SED;JZX110..ATM..(GDG,GDS,GDV)200210-200411

85420MRING, O(FOR SPEED SENSOR)

main96721-24018iGX11#,JZX11#..ATM200010-200210

9010506018

main90105-06018

9010506028

main90105-06028

9010506049

main90105-06049

9094901B81

main90949-01B81

9151180614

main91511-80614

91511C0630

main91511-C0630

91511C0635

main91511-C0635

9161160814

main91611-60814

9165140610

main91651-40610

31 parts on this diagram · 7 diagrams in section
