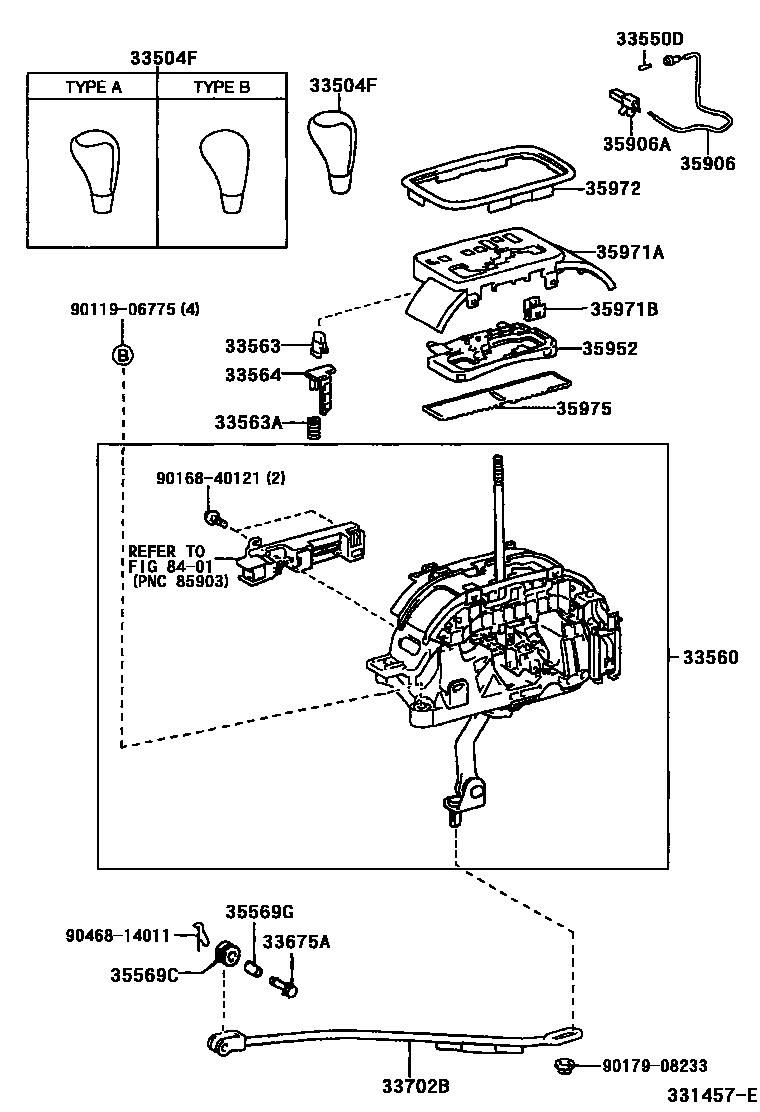

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-22140-C0iJZX110..5F200010-200411

BLACK,TRIM2#

sub33504-22140

main33504-22170-B0iGX11#,JZX110..GD200210-200411

sub33504-22170

main33504-22170-B0iGX11#,JZX110..GD200010-200210

sub33504-22170

main33504-22170-C0iGX11#,JZX110..IR,IRS200201-200501

sub33504-22170

main33504-22170-E1iGX11#,JZX110..GD200210-200411

sub33504-22170

main33504-22180-C0iGX11#,JZX11#..WG200201-200706

main33504-22190-B0iGX11#,JZX110..GD200305-200404

sub33504-30310

main33504-22190-B0iGX11#,JZX110..GD200404-200410

sub33504-30310

main33504-22190-E0iGX11#,JZX110..GD200305-200404

sub33504-30310

main33504-22190-E0iGX11#,JZX110..GD200404-200410

sub33504-30310

main33504-30281-B3iGX11#,JZX110..GD200210-200411

sub33504-52090

sub33504-30281

sub33504-22170

main33504-30281-C0iJZX110..ATM..(GDS,GDV)200210-200411

BLACK,TRIM2#

sub33504-52090

sub33504-30281

sub33504-22170

main33504-30281-C0iJZX110..ATM..(GDS,GDV)200010-200210

sub33504-52090

sub33504-30281

sub33504-22170

main33504-30281-E0iGX11#,JZX110..GD200210-200411

sub33504-52090

sub33504-30281

sub33504-22170

main33504-30310-B3iGX11#,JZX110..GD200108-200209

sub33504-30310

main33504-30310-B3iJZX11#..GDG,GDGT200010-200210

sub33504-30310

main33504-30310-B3iJZX11#..GDG200210-200411

sub33504-30310

main33504-30310-E3iJZX11#..GDG200210-200411

sub33504-30310

main33504-30310-E3iGX11#,JZX110..GD200210-200309

sub33504-30310

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iGX11#,JZX11#..SED..ATM200010-200210

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-22020iJZX110..SED..5FC200010-200210

main33560-22030iGX110,JZX110..SED..4FC200010-200210

main33560-22040iGX115,JZX115..WG200010-200210

33563BUTTON, SHIFT LOCK RELEASE

main33563-22080iGX11#,JZX11#..SED..ATM200010-200210

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-07103iGX11#,JZX11#..SED..ATM200010-200210

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-22070iGX11#,JZX11#..WG200010-200210

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iGX11#,JZX11#..WG200405-200706

main33726-35010iGX110..GD;JZX110..SED..ATM200010-200404

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22110iJZX110..SED..ATM200010-200210

main33702-22120iGX115,JZX115..SED200010-200210

main33702-22130iGX110..GD200010-200210

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iJZX110..ATM;GX110..GD,IR200010-200706

main90480-17023iGX115,JZX115200010-200706

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iGX115,JZX115200010-200706

main90560-08091iGX110,JZX110..SED..ATM200010-200706

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-22090iGX11#,JZX11#..WG200010-200210

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-11967iGX11#,JZX11#..SED..ATM200010-200210

35952LENS, POSITION INDICATOR

main35952-22010iJZX110..SED..5FC200010-200210

main35952-22020iGX11#,JZX11#..WG..4FC200010-200210

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-22140iJZX110..SED..5FC200010-200210

sub35971-22200

main35971-22150iGX11#,JZX11#..SED..4FC200010-200210

sub35971-22210

main35971-22180iJZX110..IRS200201

main35971-22190iGX11#,JZX11#..WG..4FC200201

main35971-22210iGX11#,JZX110..GD200404-200410

main35971-22210iGX11#,JZX110..GD200305-200404

35971BCLIP, BEZEL

main33593-50020iGX11#,JZX11#..WG200010-200210

35972COVER, POSITION INDICATOR HOUSING

main35972-22190iGX11#,JZX11#..SED..ATM200010-200210

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-22170iGX11#,JZX11#..SED..ATM200010-200210

sub35975-30270

main35975-30270iGX11#,JZX11#..WG200201

main35975-30270iGX11#,JZX110..GD200305-200404

main35975-30270iGX11#,JZX110..GD200404-200410

8401

9011906775

main90119-06775

9016840121

main90168-40121

9017908233

main90179-08233

9046814011

main90468-14011

22 parts on this diagram · 3 diagrams in section
