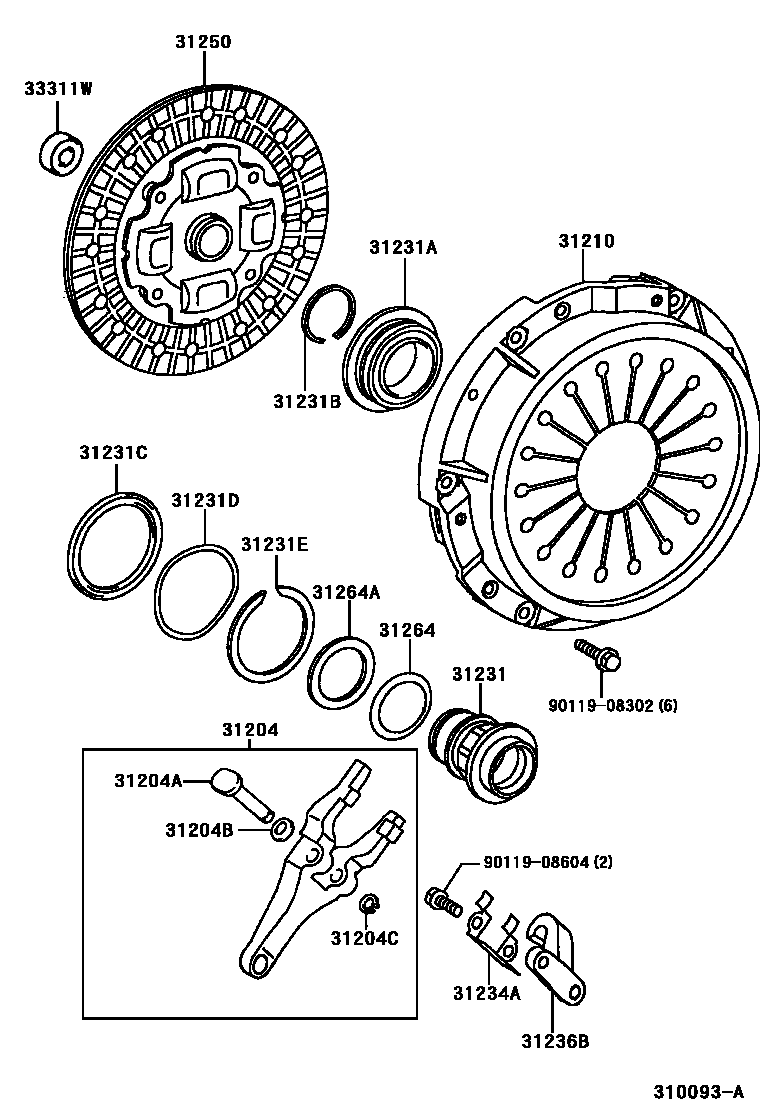

CLUTCH & RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31204APIN(FOR CLUTCH RELEASE FORK)
31204BWASHER, WAVE(FOR CLUTCH RELEASE FORK)
31204CRING, E(FOR CLUTCH RELEASE FORK)
31210COVER ASSY, CLUTCH
31231HUB, CLUTCH RELEASE BEARING
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
31231BRING, SNAP(FOR CLUTCH RELEASE HUB)
31231CWASHER, PLATE(FOR CLUTCH RELEASE BEARING)
31231DWASHER, WAVE(FOR CLUTCH RELEASE BEARING)
31231ERING, SHAFT SNAP(FOR CLUTCH RELEASE BEARING)
31234ASPRING, RELEASE FORK SUPPORT
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
sub31250-22352
31264SPRING, CLUTCH THRUST CONE
31264AWASHER, PLATE(FOR CLUTCH THRUST CONE SPRING)
33311WBEARING (FOR INPUT SHAFT)
sub90363-12024
9011908302
main90119-08302
9011908604
main90119-08604
19 parts on this diagram · 1 diagram in section
