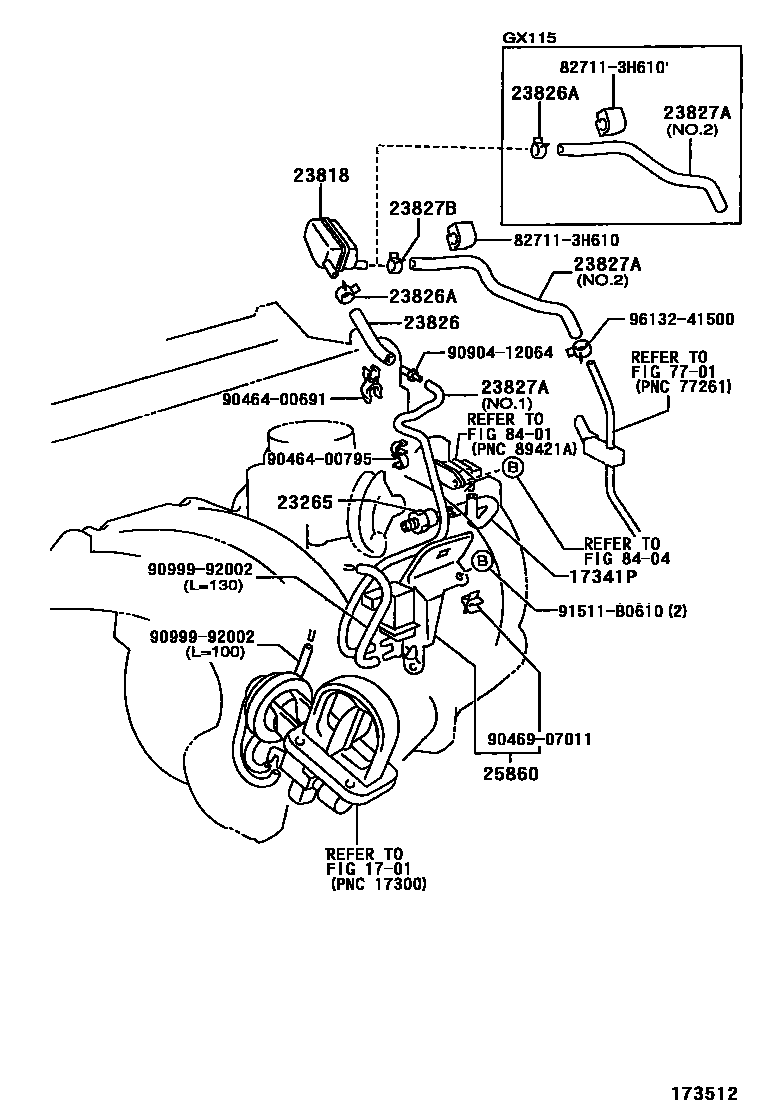

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

1701

17341PHOSE, AIR

main17341-70260i1GFE..GX11#..GD,IR200010-200706

23265FILTER, GAS, NO.1

main90917-11022i1GFE..GX11#..GD,IR200010-200706

main90917-11031i1JZFSE,1JZGE..JZX11#..SED200210-200411

23818PIPE, FUEL VAPOR FEED

main23818-46110i1GFE..GX11#..GD200010-200210

main23818-46120i1JZFSE..JZX110200010

main23818-88400i1JZGTE..JZX110200010-200604

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-46040i1JZFSE..JZX110200010

main23826-70030i1GFE..GX11#..GD200010-200210

main23826-88400i1JZGTE..JZX110..GDV200210-200411

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51100×2i1JZFSE..JZX110..SED200210-200411

main96132-51300i1GFE..GX11#..SED200210-200411

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-46050i1JZGE..JZX115..GDG200210-200411

main23827-46060i1GFE..GX110..SED200210

main23827-46070i1JZFSE..JZX110..SED200210-200411

main23827-46080i1JZGTE..JZX110..GDV200210-200411

main23827-46110i1JZFSE..JZX110200010-200105

main23827-46130i1JZFSE..JZX110..SED200210-200411

main23827-70020i1GFE..GX11#..SED200210

main23827-70030i1GFE..GX115..GD200010-200210

main23827-88400i1JZGTE..JZX110200010-200604

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-41500i1JZFSE..JZX110..SED200210

main96132-51100×2i1JZFSE..JZX110200010

main96132-51300i1GFE..GX11#..SED200210-200411

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-46010i1JZGE..JZX115200010-200706

main25860-70020i1GFE..GX11#..GD,IR200010-200706

main90910-12124i1JZFSE..JZX110200010-200706

7701

8401

8404

827113H610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H610

9046400691

main90464-00691

9046400795

main90464-00795

9046907011

main90469-07011

9090412064

main90904-12064

9099992002

main90999-92002

91511B0610

main91511-B0610

9613241500

main96132-41500

20 parts on this diagram · 4 diagrams in section
