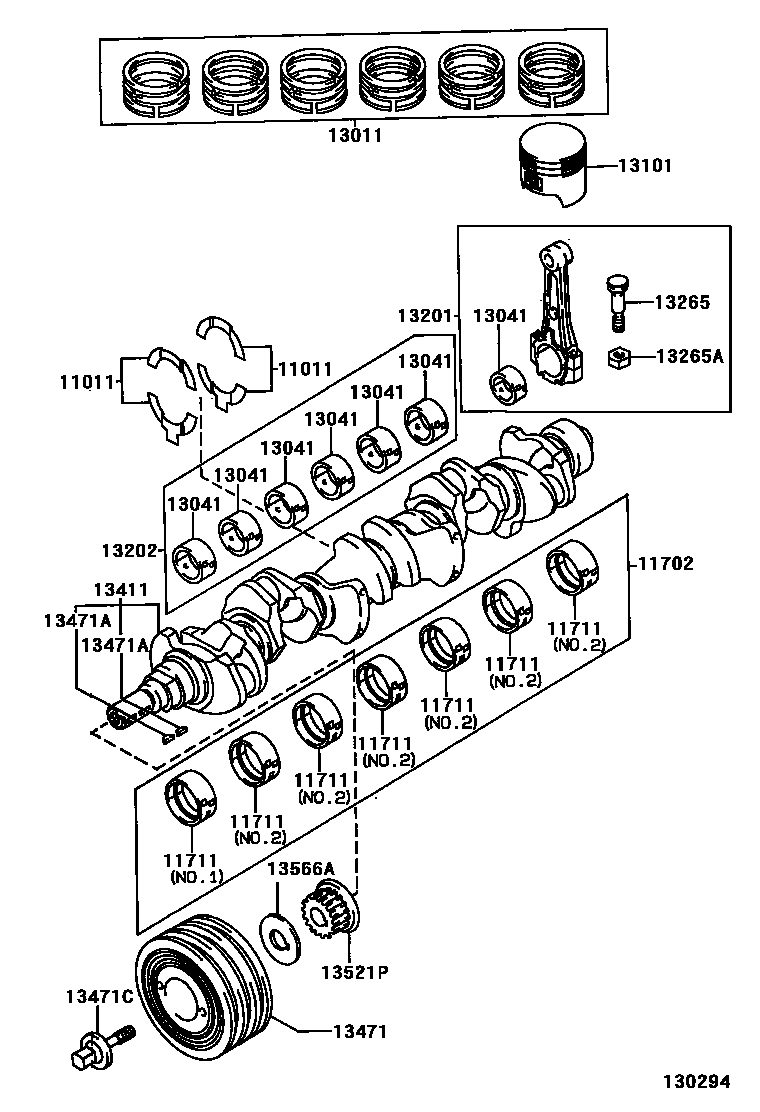

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-46030i1JZ#..JZX11#200010

main11011-70010×2i1GFE..GX11#..GD,IR200010-200706

11702BEARING SET, CRANKSHAFT

main11704-46030i1JZFSE,1JZGE..JZX11#200010-200107

main11704-46040i1JZFSE..JZX110..SED200210-200411

main11704-70024i1GFE..GX11#..SED200210-200411

11711BEARING, CRANKSHAFT

main11071-46020-01i1JZGTE..JZX110200010-200604

main11071-46020-02i1JZGTE..JZX110..GDV200210-200411

main11071-46020-03i1JZFSE,1JZGE..JZX11#200010-200106

main11071-46020-04i1JZGTE..JZX110200010-200604

main11071-46020-05i1JZFSE,1JZGE..JZX11#200010-200106

main11071-46030-01i1JZFSE,1JZGE..JZX11#..SED200210-200411

main11071-46030-02i1JZFSE,1JZGE..JZX11#..SED200210-200411

main11071-46030-03i1JZFSE,1JZGE..JZX11#..SED200210-200411

main11071-46030-04i1JZFSE,1JZGE..JZX11#200106

main11071-46030-05i1JZFSE,1JZGE..JZX11#200106

main11071-70015-01i1GFE..GX11#..SED200210-200411

main11071-70015-02i1GFE..GX11#..GD,IR200010-200706

main11071-70015-03i1GFE..GX11#..SED200210-200411

main11071-70015-04i1GFE..GX11#..GD,IR200010-200706

main11071-70015-05i1GFE..GX11#..GD,IR200010-200706

main11701-46020-01×6i1JZ#..JZX11#..SED200210-200411

main11701-46020-02×6i1JZ#..JZX11#200010

main11701-46020-03×6i1JZ#..JZX11#..SED200210-200411

main11701-46020-04×6i1JZ#..JZX11#..SED200210-200411

main11701-46020-05×6i1JZ#..JZX11#..SED200210-200411

main11701-70024-01×6i1GFE..GX11#..SED200210-200411

main11701-70024-02×6i1GFE..GX11#..SED200210-200411

main11701-70024-03×6i1GFE..GX11#..SED200210-200411

main11701-70024-04×6i1GFE..GX11#..GD,IR200010-200706

main11701-70024-05×6i1GFE..GX11#..SED200210-200411

13011RING SET, PISTON

main13011-46030i1JZGE..JZX115..GDG200210-200411

main13011-46070i1JZFSE..JZX110..SED200210-200411

main13011-70110i1GFE..GX11#..SED200210-200411

main13011-88410i1JZGTE..JZX110..GDV200210-200411

main13013-70110i1GFE..GX11#..SED200210-200411

13041BEARING, CONNECTING ROD

main13041-46013-01×6i1JZGTE..JZX110..GDV200210-200411

main13041-46013-02×6i1JZGTE..JZX110..GDV200210-200411

main13041-46013-03×6i1JZGTE..JZX110..GDV200210-200411

main13041-46013-04×6i1JZFSE,1JZGE..JZX11#200010-200107

main13041-46013-05×6i1JZGTE..JZX110200010-200604

main13041-46020-01×6i1JZFSE,1JZGE..JZX11#..SED200210-200411

main13041-46020-02×6i1JZFSE,1JZGE..JZX11#..SED200210-200411

main13041-46020-03×6i1JZFSE,1JZGE..JZX11#200108

main13041-46020-04×6i1JZFSE,1JZGE..JZX11#..SED200210-200411

main13041-46020-05×6i1JZFSE,1JZGE..JZX11#200108

main13041-70021-03×6i1GFE..GX11#..SED200210-200411

main13041-70021-04×6i1GFE..GX11#..GD,IR200010-200706

main13041-70021-05×6i1GFE..GX11#..GD,IR200010-200706

13101PISTON SUB-ASSY, W/PIN

main13101-46071×6i1JZGE..JZX115200010

main13101-46110×6i1JZFSE..JZX110..SED200210-200411

main13101-70110×6i1GFE..GX11#..GD,IR200010-200706

sub13101-70120

main13101-88410×6i1JZGTE..JZX110200010-200604

main13103-70110×6i1GFE..GX11#..SED200210-200411

sub13103-70120

13201ROD SUB-ASSY, CONNECTING

main13201-46030×6i1JZGTE..JZX110..GDV200210-200411

main13201-46051×6i1JZFSE,1JZGE..JZX11#..SED200210-200411

main13201-79435×6i1GFE..GX11#..IR200010

13202BEARING SET, CONNECTING ROD

main13204-46021i1JZFSE,1JZGE..JZX11#..IRS200404

sub13204-46022

main13204-46023i1JZFSE,1JZGE..JZX11#200010-200108

main13204-46030i1JZFSE,1JZGE..JZX11#..SED200210-200411

main13204-70021i1GFE..GX11#..SED200210-200411

13265BOLT, CONNECTING ROD

main13265-46020×12i1JZ#..JZX11#..SED200210-200411

main13265-70020×12i1GFE..GX11#..GD,IR200010-200706

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-09006×12i1GFE..GX11#..GD,IR200010-200706

13411CRANKSHAFT

main13401-46012i1JZ#..JZX11#..SED200210-200411

main13411-70908i1GFE..GX11#..SED200210-200411

13471PULLEY, CRANKSHAFT

main13407-70090i1GFE..GX11#..GD,IR200010-200706

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005×2i1GFE..GX11#..GD,IR200010-200706

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-18001i1GFE..GX11#..GD,IR200010-200706

main90119-18002i1JZ#..JZX11#200010

13521PPULLEY, CRANKSHAFT TIMING

main13521-46040i1JZ#..JZX11#..SED200210-200411

main13521-70050i1GFE..GX11#..GD,IR200010-200706

13566AGUIDE, TIMING BELT

main13566-46010i1JZ#..JZX11#..SED200210-200411

main13566-70031i1GFE..GX11#..SED200210-200411
