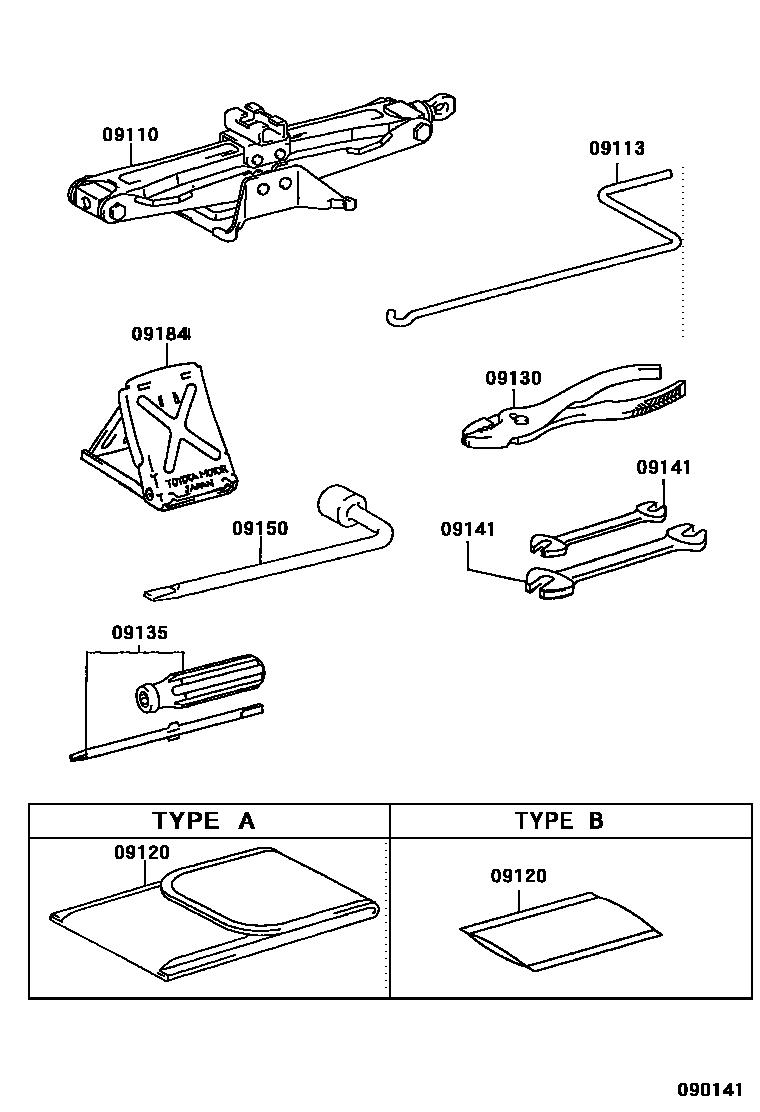

STANDARD TOOL

09110JACK ASSY

main09111-50050iGX11#,JZX11#200010-200202

sub09111-50051

main09111-50051iGX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS200202-200604

sub09111-76011

09113HANDLE, JACK

main09113-13040iGX11#,JZX11#..SED200010-200604

09120BAG, TOOL

main09120-24020iJZX110..IRV200010-200604

main09120-24020iGX11#,JZX11#..SED200210

main09120-28040iJZX110..IRV200106-200604

main09120-28040iGX11#,JZX11#..SED200210

09130PLIERS

main99913-11500iGX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS200010-200604

09135DRIVER, SCREW

main99915-10700iJZX110..IRV200010-200604

09141SPANNER

main99914-10810iGX11#,JZX11#..SED200010-200604

main99914-11214iGX11#,JZX115..GD,GDG,IR,IRS;JZX110..GD,GDG,GDGT,GDS,GDV,IRS200010-200604

09150WRENCH, HUB NUT BOX

main09150-40010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010

09184STOPPER, WHEEL

main09184-00010iJZX110;GX11#,JZX115..GD,GDG,IR,IRS200010-200706

8 parts on this diagram · 1 diagram in section
