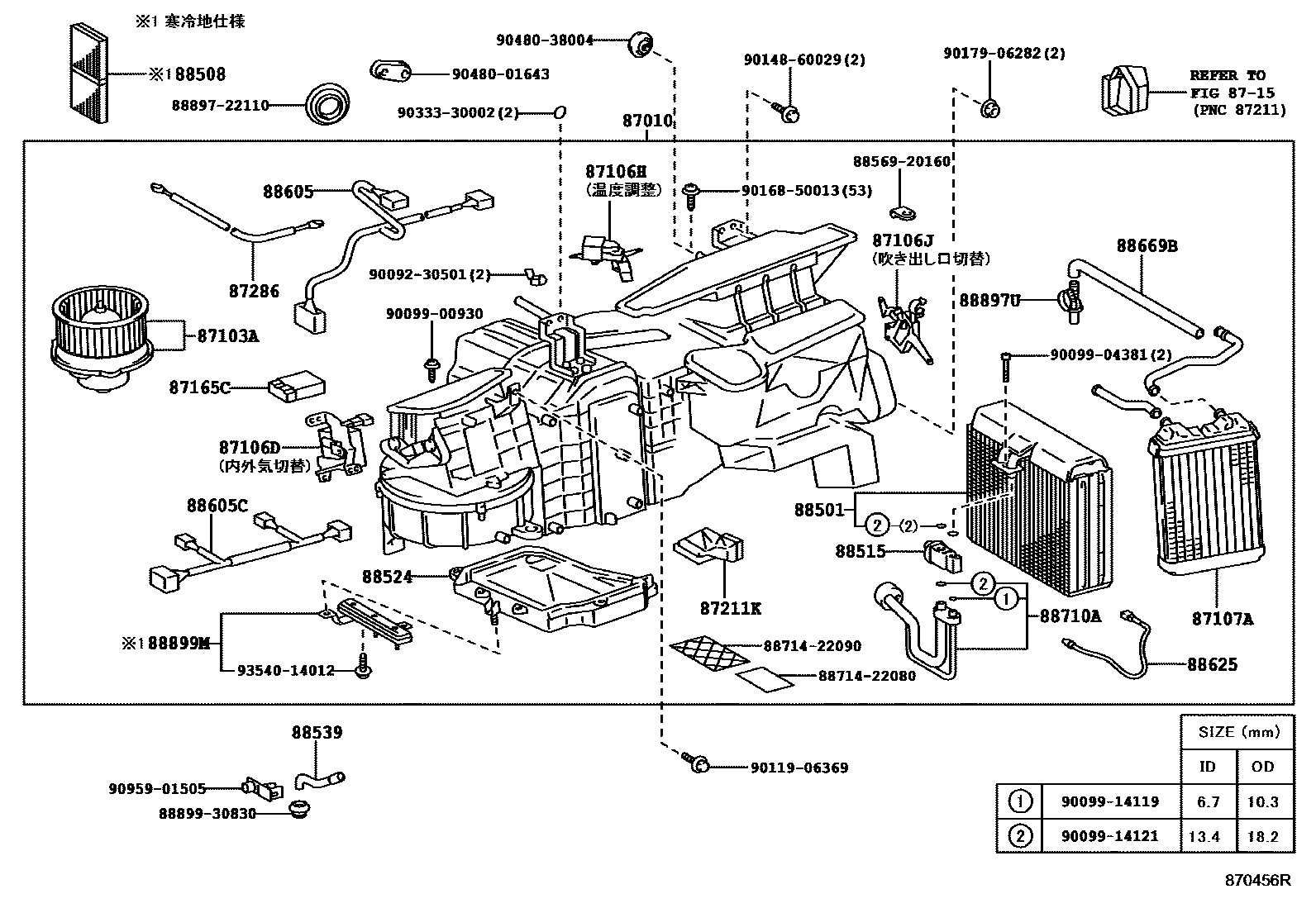

HEATING & AIR CONDITIONING - COOLER UNIT

87010UNIT ASSY, AIR CONDITIONER

main87010-22210iJZX10#199609

sub87010-22230

main87010-22220iGX10#,LX100199609

sub87010-22240

main87010-22230iJZX10#199609

main87010-22240iGX10#199609

main87010-22250iLX100199609-199908

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-22120iGX10#,JZX10#,LX100199609

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-22130iGX10#,JZX10#,LX100199609

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-22180iGX10#,JZX10#,LX100199609

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-22140iGX10#,JZX10#,LX100199609

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-22260iGX10#,JZX10#,LX100199609

main87107-22270iLX100199609-199908

8715

87165CCONTROL, BLOWER MOTOR

main87165-22040iGX10#,JZX10#,LX100199609-200003

sub87165-22050

main87165-22050iGX10#,JZX10#,LX100199609

87211KDUCT, AIR

main87211-22170iGX10#,JZX10#,LX100199609

87286CABLE, CONTROL

main87286-22020iGX10#,JZX10#,LX100199609

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22221iGX10#,JZX10#,LX100199609

88508FILTER SUB-ASSY, CLEAN AIR

main88508-22020iGX10#,JZX10#,LX100199609

88515VALVE, COOLER EXPANSION

main88515-22230iJZX10#199609

main88515-22240iGX10#,LX100199609

88524PANEL, COOLING BOX, BOTTOM

main88524-22050iGX10#,JZX10#,LX100199609

main88524-22060iGX10#,JZX10#,LX100199609

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22240iGX100,JZX100,101,LX100..GD,GDG,GL,TOU,TOUS199609

main88539-22250iGX105,JZX105;JZX100..TOUV199609

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22840iGX10#,JZX10#,LX100199609

88605CHARNESS SUB-ASSY, COOLER WIRING, NO.2

main88605-22850iGX10#,JZX10#,LX100199609

88625THERMISTOR, COOLER, NO.1

main88625-22250iGX10#,JZX10#,LX100199609

sub88620-26020

88669BHOSE, COOLER AIR

main88669-22070iGX10#,JZX10#,LX100199609

88710ATUBE ASSY, AIR CONDITIONER

main88710-22810iGX10#,JZX10#,LX100199609

88897UPIPE, ASPIRATOR

main88897-22100iGX10#,JZX10#,LX100199609

88899MPLATE, COVER(FOR AIR FILTER)

main88899-22280iGX10#,JZX10#,LX100199609

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8871422080HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-22080

8871422090HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-22090

8889722110VALVE, COOLER MAGNET

main88897-22110

8889930830COVER, EVAPORATOR

main88899-30830

9009230501

main90092-30501

9009900930

main90099-00930

9009904381

main90099-04381

9009914119

main90099-14119

9009914121

main90099-14121

9011906369

main90119-06369

9014860029

main90148-60029

9016850013

main90168-50013

9017906282

main90179-06282

9033330002

main90333-30002

9048001643

main90480-01643

9048038004

main90480-38004

9095901505

main90959-01505

9354014012

main93540-14012

41 parts on this diagram · 1 diagram in section
