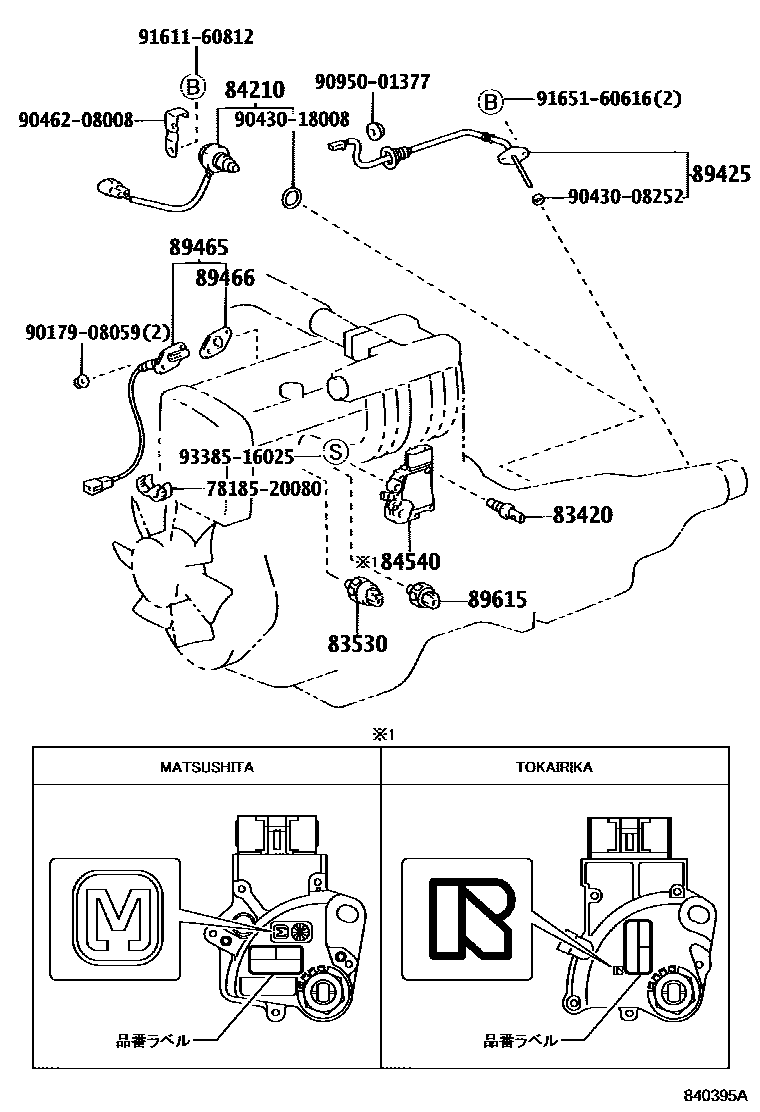

SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� & ��������� 0005 1����� & ��������� 0006 1������-� 0007 1������������ ���� 0008 1��� 0009 1�����-��� ���� 0010 1�-�,���,�-�,���

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iGX100,JZX10#,LX100199609-199808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGX10#,JZX10#199803

main83530-30060iLX100199609-199803

sub83530-60030

main83530-30090iGX100199609-199803

sub83530-60020

main83530-60020iJZX10#199712-199803

main83530-60020iGX10#,JZX10#199803

main83530-60030iLX100199803-199908

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGX100..5F199609

main84210-35030iJZX100..5F199609

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZX10#..4FC199609-199808

main84540-30290iGX100,LX100..4FC199609

main84540-30300iGX100,LX100..4FC199609

main84540-30320iGX105,JZX10#..ATM199808

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-29695iGX100,JZX100..GD,GDG,TOU,TOUS199609-199708

sub89425-39515

main89425-29875iJZX105199609-199708

sub89425-39525

main89425-80041iJZX101;JZX100..TOUV199609-199708

89465SENSOR, OXYGEN

main89465-22250iGX10#199808

main89465-29645iGX100199609-199808

main89465-30250iJZX10#..GD,GDG,TOUS199609

main89465-80015iJZX100..TOUV199609

main89465-80031iGX10#199808

89466GASKET, OXYGEN SENSOR

main89466-20020iGX10#;JZX100..TOUV199609

89615SENSOR, KNOCK CONTROL

main89615-12040iJZX100,105..GD,GDG,TOUS199609-199908

main89615-12050iJZX10#..GD,GDG,TOUS199609-199908

sub89615-12090

main89615-12090iJZX10#..GD,GDG,TOUS199908-200010

main89615-20030iGX100199609-199808

sub89615-32040

main89615-22030iJZX100..TOUV199609-199908

main89615-22040iJZX100..TOUV199609-199908

main89615-22050iGX10#199808-200010

sub89615-52010

main89615-33020iGX100199609-199808

sub89615-32030

main89615-50010iJZX101199609-199708

main89615-52010iJZX100..TOUV199908-200010

main89615-52020iJZX100..TOUV199908-200010

sub89615-52010

7818520080SHAFT, ACCELERATOR PEDAL SUPPORT

main78185-20080

9017908059

main90179-08059

9043008252

main90430-08252

9043018008

main90430-18008

9046208008

main90462-08008

9095001377

main90950-01377

9161160812

main91611-60812

9165160616

main91651-60616

9338516025

main93385-16025

17 parts on this diagram · 10 diagrams in section
