SIDE MEMBER
58377CRETAINER, LOWER BACK TRIM, RH
58378FRETAINER, LOWER BACK TRIM, LH
58791ACARRIER, JACK
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
6105
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61125DGUSSET, SIDE PANEL
61126BGUSSET, SIDE PANEL
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
61142CEXTENSION, FRONT PILLAR, UPPER INNER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH
61176AREINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 LH
61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61262CHANNEL, ROOF DRIP, LH
61267ACHANNEL, ROOF DRIP SIDE, REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61418AREINFORCEMENT, ROCKER PANEL, RH
61419AREINFORCEMENT, ROCKER PANEL, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
61644GUSSET, QUARTER WHEEL HOUSE, CENTER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61675BREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61826APLATE, NOISE CONTROL, NO.3
61826DPLATE, NOISE CONTROL, NO.3
61827APLATE, NOISE CONTROL, NO.4
62381DWEATHERSTRIP, ROOF SIDE RAIL, RH
62382DWEATHERSTRIP, ROOF SIDE RAIL, LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-22030
9011906187
main90119-06187
9011906739
main90119-06739
9017908025
main90179-08025
9033320001
main90333-20001
9033325001
main90333-25001
9054110144
main90541-10144
9095001392
main90950-01392
9095001398
main90950-01398
9095001759
main90950-01759
9095001859
main90950-01859
9095006001
main90950-06001

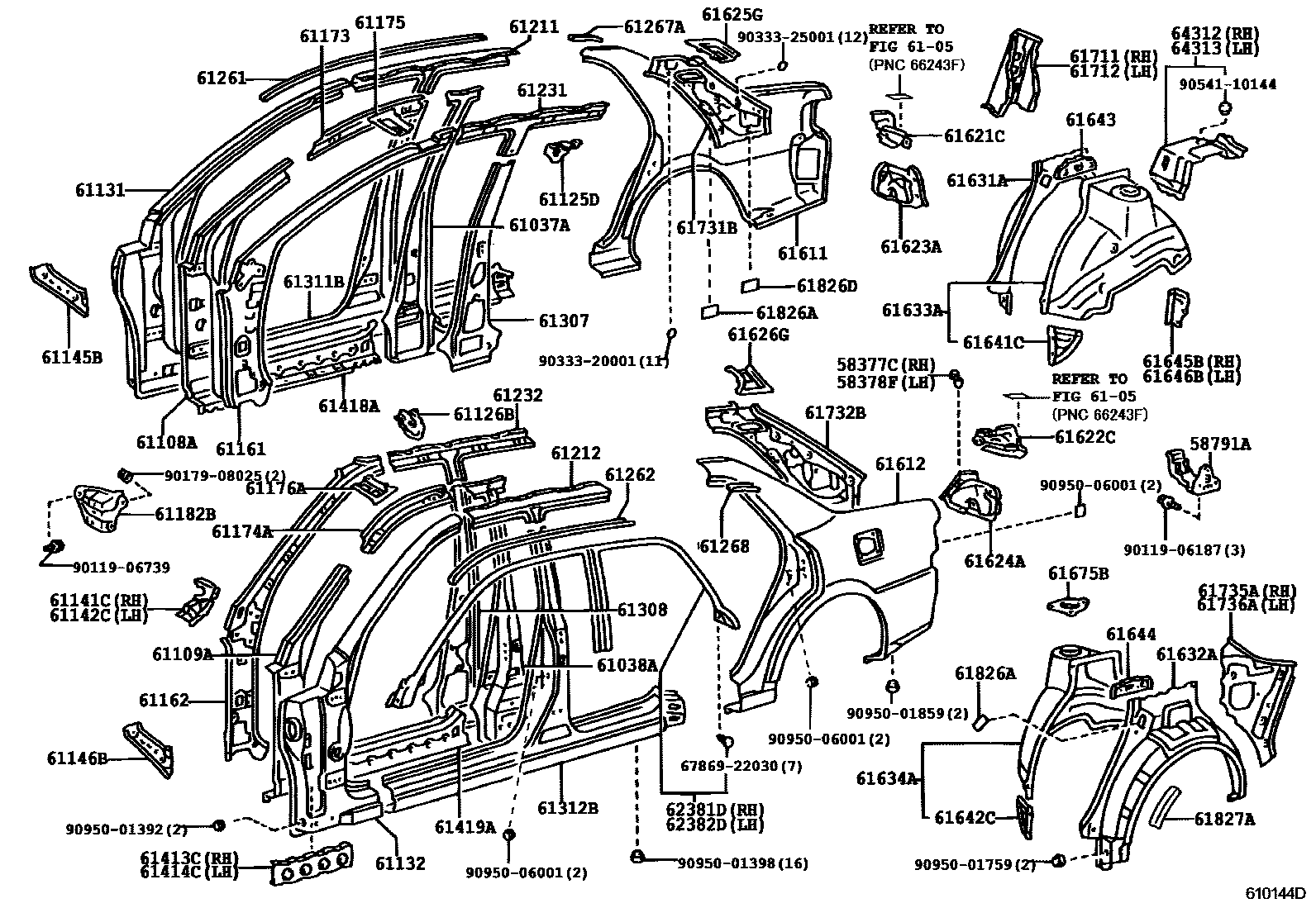

83 parts on this diagram · 1 diagram in section
