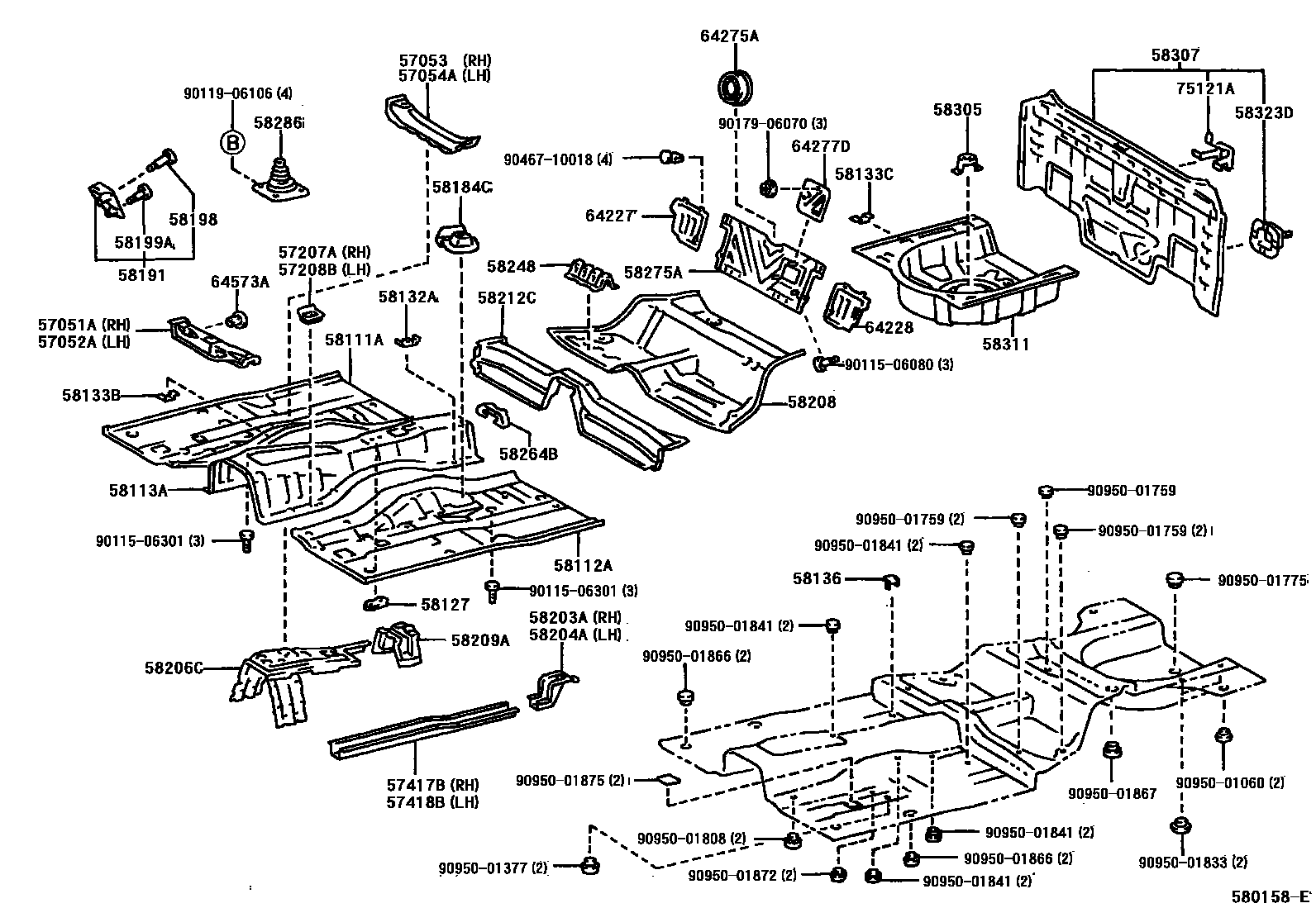

FLOOR PAN & LOWER BACK PANEL
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57417BREINFORCEMENT, FRONT FLOOR UNDER
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58127PATCH, FRONT FLOOR PANEL
58132ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58206CCOVER SUB-ASSY, TRANSMISSION, REAR
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58248REINFORCEMENT, REAR SEAT CUSHION LOCK
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58286BOOT, SHIFT & SELECT LEVER, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT
64227EXTENSION, CENTER FLOOR TO BRACE
64228EXTENSION, CENTER FLOOR TO BRACE, NO.2
64275ACOVER, ROOM PARTITION
64277DCOVER, ROOM PARTITION, NO.2
64573APROTECTOR, LUGGAGE DOOR OPENER CABLE, RH
75121ABRACKET, REAR LICENSE PLATE
9011506080
9011506301
9011906106
9017906070
9046710018
9095001060
9095001377
9095001759
9095001775
9095001808
9095001833
9095001841
9095001866
9095001867
9095001872
9095001875
56 parts on this diagram · 1 diagram in section
