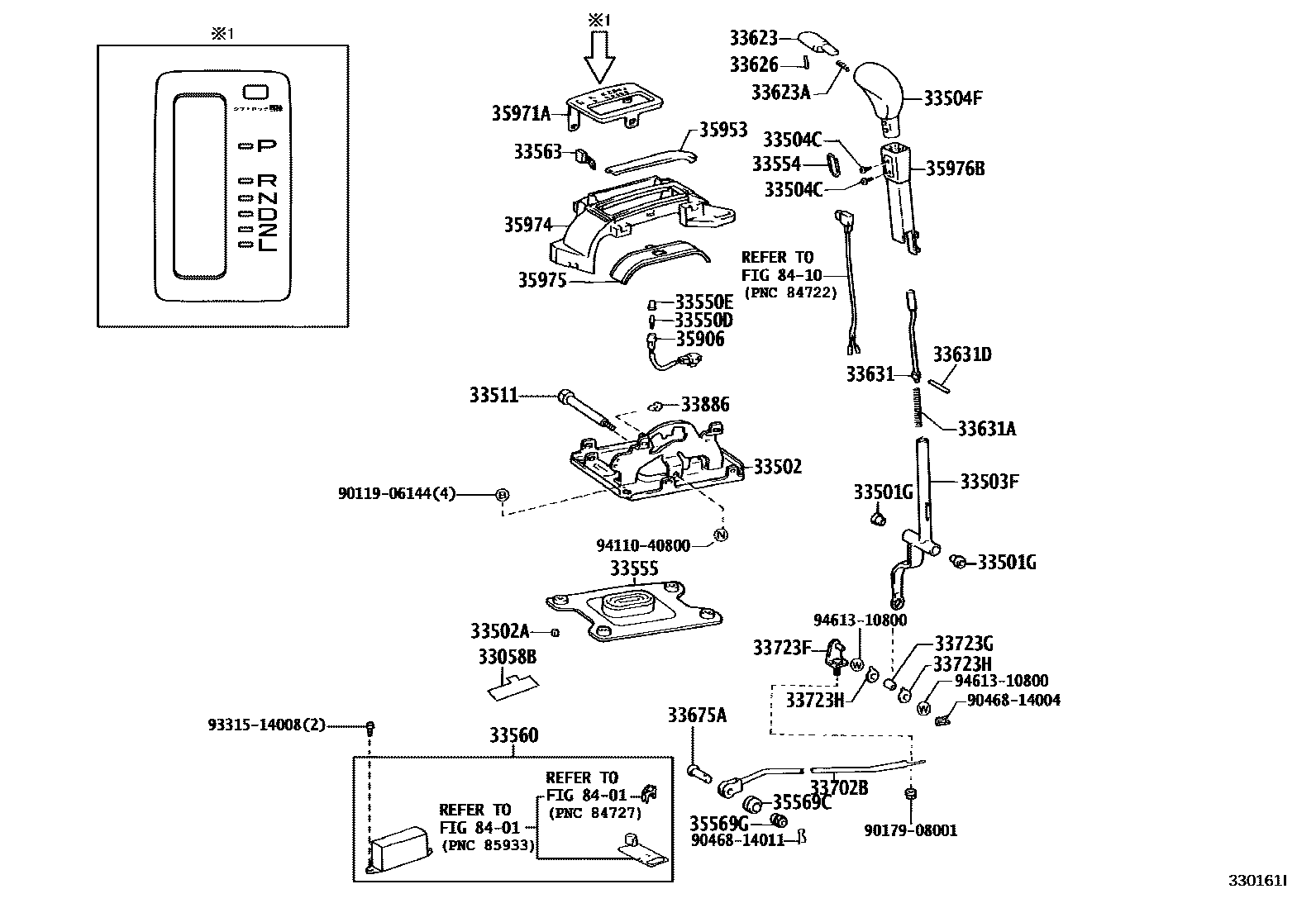

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33058BSEAT, SHIFT LEVER(FOR BRACKET, SHIFT LOCK SOLENOID)

main33597-22040iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥390199609-200010

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90386-11019iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥130199609-200010

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-22320iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥7,200199609-200010

main33502-22380iGX105,JZX105¥7,100199609-200010

main33521-22250iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥5,300199609-200010

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥180199609-200010

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-22030iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥3,750199609-200010

main33055-22040iGX105,JZX105¥5,100199609-200010

main33055-22050iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥1,960199609-200010

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40238iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥110199609-200010

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-E8iGX100..5F199609-200010

ORCHID BROWN,TRIM4#

sub33504-12180¥3,810

main33504-12180-G3iGX100..5F199609-200010

DK.SAGE,TRIM6#

sub33504-12180¥3,810

main33504-22140-B0iJZX100..5F199609-199808

DK. BLUE GRAY,TRIM1#

sub33504-22140¥7,400

main33504-22140-C1iJZX100..5F199808-200010

BLACK,TRIM2#

sub33504-22140¥7,400

main33542-22220-E0iGX10#,JZX100,105,LX100..4FC..GD199609-200010

ORCHID BROWN,TRIM4#

sub33542-22220¥4,510

main33542-22220-G0iGX10#,JZX100,105,LX100..4FC..(GD,GL)199609-200010

DK.SAGE,TRIM6#

sub33542-22220¥4,510

main33542-22230-E0iJZX100,101..GDG199609-200010

ORCHID BROWN,TRIM4#

sub33542-22230¥8,000

main33542-22230-E0iGX10#,JZX100..4FC..GD200004-200010

sub33542-22230¥8,000

main33542-22230-E0iGX100,JZX100..4FC..GD199708-199808

sub33542-22230¥8,000

main33542-22230-E0iGX10#,JZX100..4FC..GD199904-200003

sub33542-22230¥8,000

main33542-22230-G1iGX100,JZX100..4FC..GD199808-199904

sub33542-22230¥8,000

main33542-22230-G1iJZX100,101..GDG199609-200010

DK. SAGE,TRIM6#

sub33542-22230¥8,000

main33542-22240-B0iGX100..TOU199609-199808

DK.BLUE GRAY,TRIM1#

sub33542-22240¥3,610

main33542-22240-C0iGX100..TOU199808-200010

BLACK,TRIM2#

sub33542-22240¥3,610

main33542-22250-B0iJZX100..4FC..(TOUS,TOUV)199609-199808

DK. BLUE GRAY,TRIM1#

sub33542-22250¥7,200

main33542-22250-C0iJZX100..ATM..(TOUS,TOUV)199808-199902

BLACK,TRIM2#

sub33542-22250¥7,200

main33542-22250-C1iJZX100..ATM..(TOUS,TOUV)199902-200010

BLACK,TRIM2#

sub33542-22250¥7,200

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33501-22220iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥1,980199609-200010

main33511-22230iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥660199609-200010

main33511-22240iGX105,JZX105¥600199609-200010

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iGX10#,JZX10#,LX100..ATM¥140199609-200010

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iGX100,JZX100..4FC..(TOU,TOUS,TOUV)¥100199609-199808

main90339-04053iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥120199609-200010

main90339-04071iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥120199808-200010

33554CAP, SHIFT LEVER

main33554-22060iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥260199609-200010

33555BOOT, SHIFT LEVER

main33555-22150iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥1,090199609-200010

main33555-22160iGX105,JZX105¥1,020199609-200010

main33555-22170iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥320199609-200010

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-22010iGX100,JZX10#,LX100..4FC..(GD,GDG,GL)¥11,900199609-199706

sub33560-22011¥12,000

main33560-22011iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥12,000199706-200010

33563BUTTON, SHIFT LOCK RELEASE

main33563-22050iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥180199609-200010

main33563-22060iGX105,JZX105¥230199609-200010

main33563-22070iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥400199609-200010

33623BUTTON, SHIFT LEVER KNOB

main33623-22080-E0iGX10#,JZX10#,LX100..4FC..(GD,GDG)199609-200010

ORCHID BROWN,TRIM4#

sub33623-22080¥1,350

main33623-22080-G0iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)199609-200010

DK.SAGE,TRIM6#

sub33623-22080¥1,350

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥350199609-200010

33626STOPPER, SHIFT LEVER BUTTON

main90256-02004iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥160199609-200010

33631ROD, DETENT

main33065-22010iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥1,350199609-200010

main33065-22020iGX105,JZX105¥1,460199609-200010

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90503-07001iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥130199609-200010

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04011iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥330199609-200010

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main90240-08120iGX10#,JZX10#,LX100..ATM¥160199609

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22050iJZX100,101,LX100..GD,GDG,GL¥1,670199609

main33702-22060iGX100..4FC..GD¥1,530199609

main33702-22070iGX105,JZX105¥2,060199609

main33702-22090iJZX100..ATM..(TOUS,TOUV)¥1,680199609

main33702-22100iGX100..TOU¥1,560199609

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22020iGX100,JZX100,101,LX100..ATM¥520199609-200010

main33723-30080iGX105,JZX105¥780199609-200010

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90560-08091iGX10#,JZX10#,LX100..ATM¥70199609-200010

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main33572-22020iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥250199609-200010

main33572-30050iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥210199609-200010

33886STOPPER, SHIFT LEVER

main33886-22020iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥190199609-200010

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGX100,JZX100,101,LX100..ATM¥230199609

main90480-17023iGX105,JZX105¥240199609

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iGX105,JZX105¥140199609

main90560-08091iGX100,JZX100,101,LX100..ATM¥70199609

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-22070iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥810199609-200010

main35906-22080iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥500199609-200010

sub35906-50030¥590

35953GUIDE, POSITION INDICATOR LIGHT

main35953-22010iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥680199609-200010

main35953-22020iGX100,JZX100..4FC..(TOU,TOUS,TOUV)¥2,240199609-200010

main35953-22030iJZX100..TOUS¥1,950199808-200010

35971AHOUSING, POSITION INDICATOR, UPPER

main33502-22390iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥1,950199609-200010

main33502-22400iGX105,JZX105¥1,950199609-200010

35974HOUSING, POSITION INDICATOR, LOWER

main35974-22120iGX10#,JZX10#,LX100..4FC..(GD,GDG,GL)¥2,440199609-200010

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-22130iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥860199609-200010

main35975-22150iGX105,JZX105¥720199609-200010

main35975-22160iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥720199609-200010

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-22060iGX100,JZX100..ATM..(TOU,TOUS,TOUV)¥390199609-200010

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-22040iGX100,JZX100,101,LX100..4FC..(GD,GDG,GL)¥1,060199609-200010

main35976-22050iGX105,JZX105¥1,180199609-200010

8401

8410

9011906144

main90119-06144¥80

9017908001

main90179-08001¥140

9046814004

main90468-14004¥80

9046814011

main90468-14011¥60

9331514008

main93315-14008¥80

9411040800

main94110-40800¥120

9461310800

main94613-10800¥90

44 parts on this diagram · 5 diagrams in section
