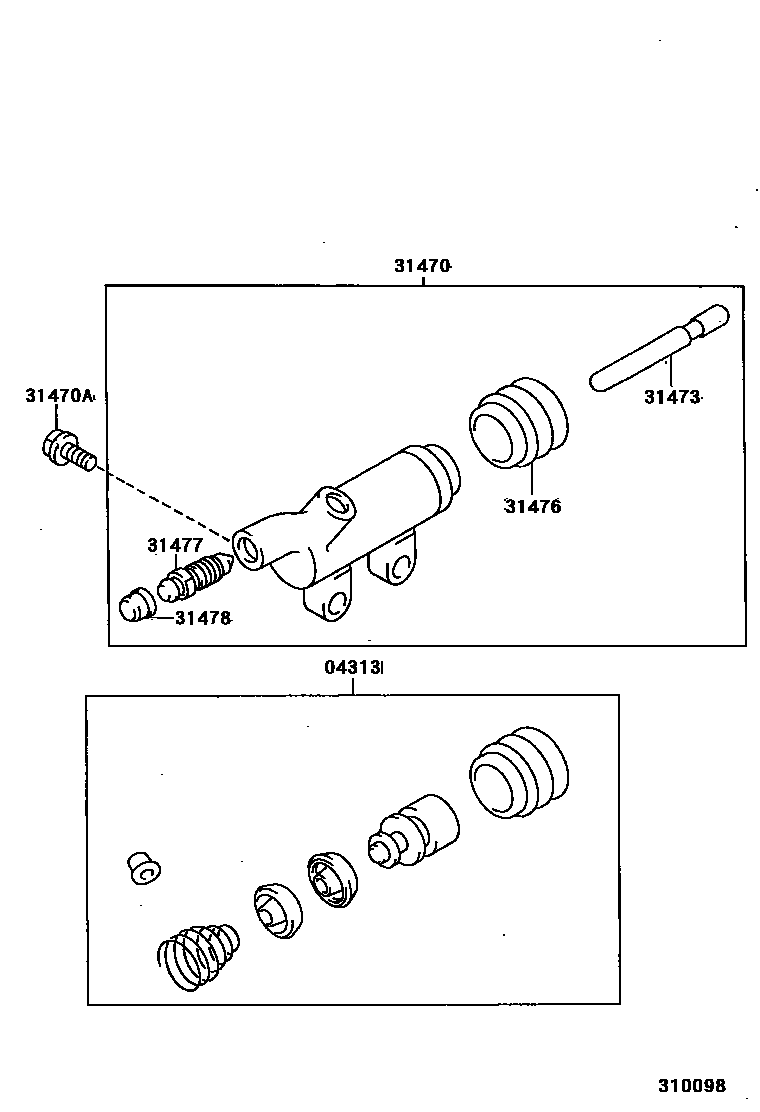

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14011iJZX100..5F199609

main04313-22030iGX100..5F199609

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-14050iJZX100..5F199609

main31470-22190iGX100..5F199609

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iJZX100..5F199609

main91611-60825iGX100..5F199609

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-14020iJZX100..5F199609

main31473-32010iGX100..5F199609

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGX100,JZX100..5F199609

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGX100,JZX100..5F199609

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGX100,JZX100..5F199609

7 parts on this diagram · 2 diagrams in section
