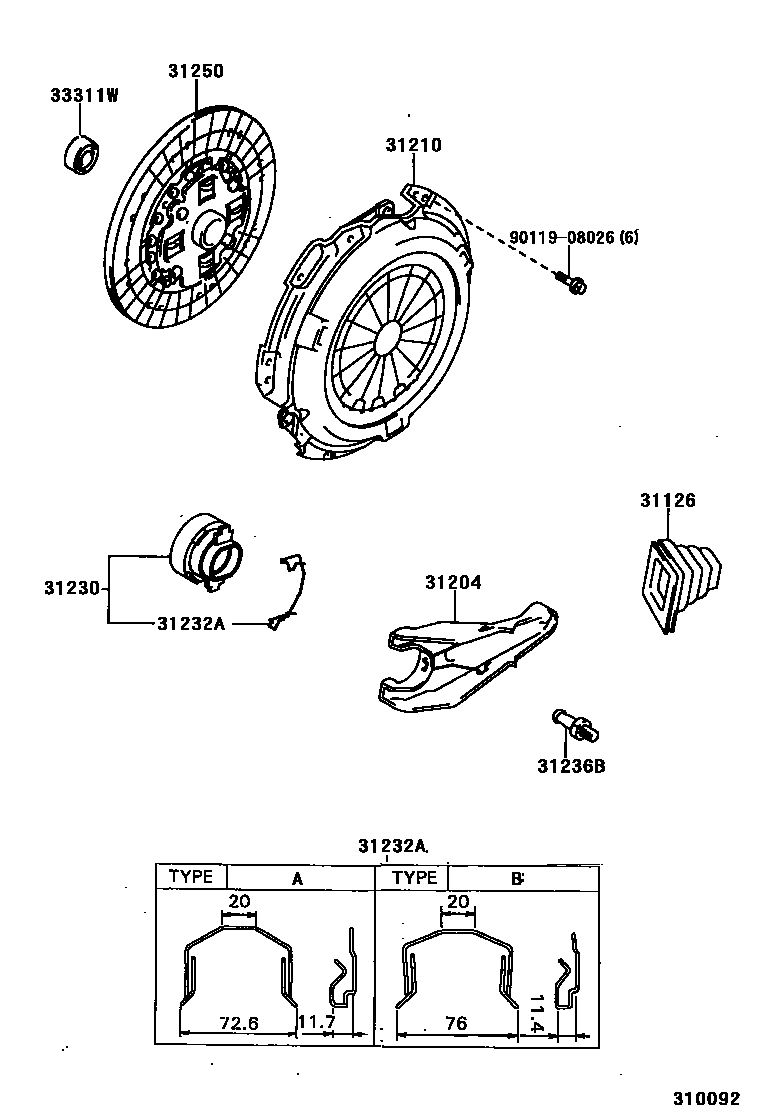

CLUTCH & RELEASE FORK

0001 1W57 0002 1R154

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iGX100..5F199609

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-14031iJZX100..5F199609

main31204-35050iGX100..5F199609

31210COVER ASSY, CLUTCH

main31210-22140iJZX100..5F199609

main31210-22150iGX100..5F199808-199901

sub31210-53040

main31210-22160iGX100..5F199609-199808

sub31210-22161

main31210-53010iGX100..5F199901

sub31210-53040

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iGX100..5F199609

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iGX100..5F199609

main31232-35040iGX100..5F199609

31236BSUPPORT, RELEASE FORK

main31236-14020iJZX100..5F199609

main31236-30060iGX100..5F199609

31250DISC ASSY, CLUTCH

main31250-22350iJZX100..5F199609-200003

main31250-22351iJZX100..5F200003

sub31250-22352

main31250-22360iGX100..5F199609-199807

main31250-35370iGX100..5F199807-199811

main31250-35371iGX100..5F199811

sub31250-35372

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iJZX100..5F199609

sub90363-12024

main90363-12003iGX100..5F199609

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section
