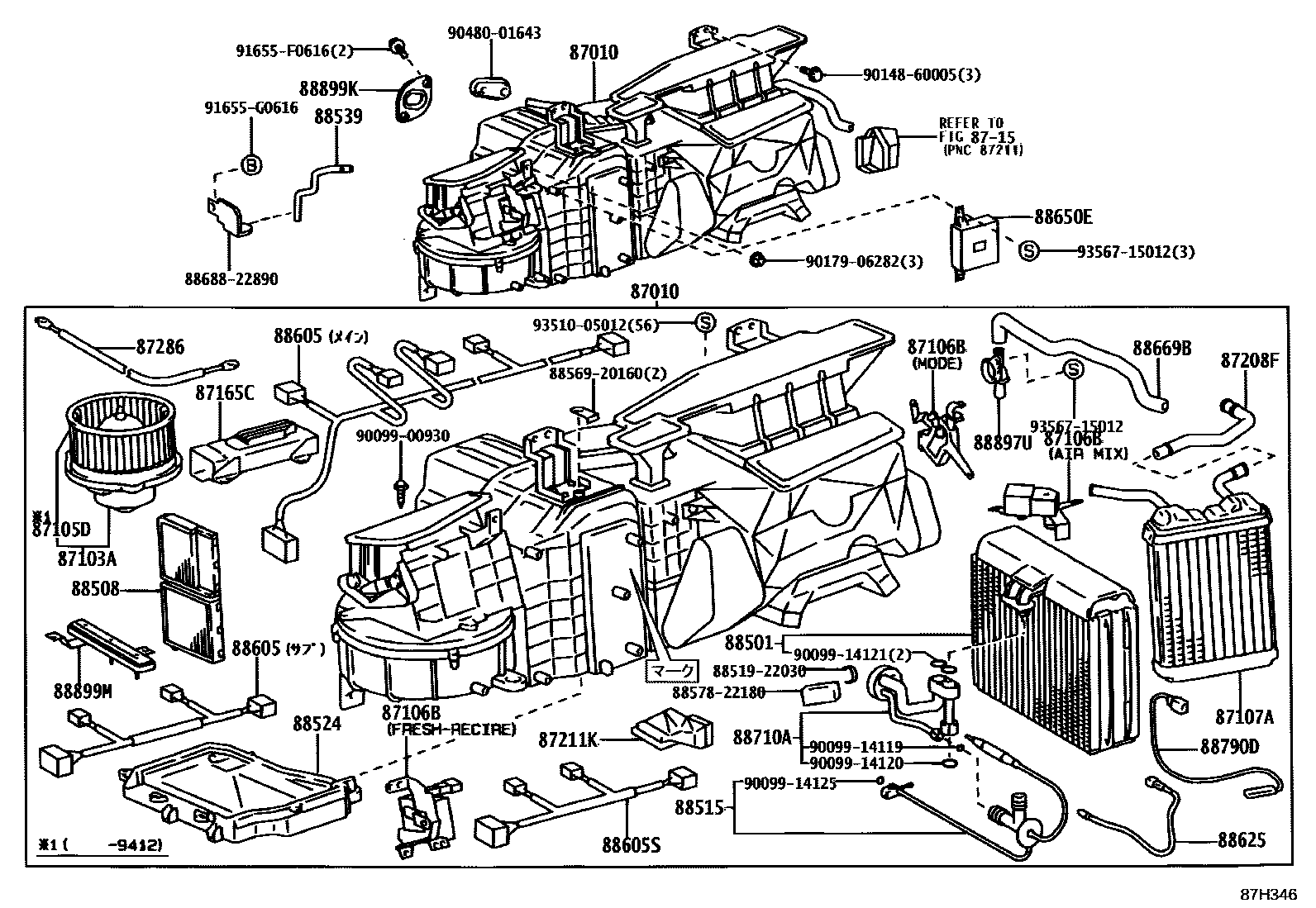

HEATING & AIR CONDITIONING - COOLER UNIT

87010UNIT ASSY, AIR CONDITIONER

main87010-22010iJZX9#..GDG¥189,000199210-199305

sub87010-22020¥189,000

main87010-22020iJZX9#..GDG¥189,000199210-199305

main87010-22030iGX90,JZX90,LX90,SX90..GD,GL,GRO,TOUS,TOUV¥189,000199210-199304

sub87010-22040¥189,000

main87010-22040iGX90,JZX90,SX90..GD,GL,GRO,TOUS,TOUV¥189,000199210-199304

main87010-22050iLX90¥189,000199210-199409

main87010-22110iJZX90..GD¥189,000199310-199409

sub87010-22120¥189,000

main87010-22110iJZX9#..GDG¥189,000199305-199409

sub87010-22120¥189,000

main87010-22120iJZX9#..GDG¥189,000199305-199409

main87010-22120iJZX90..GD¥189,000199310-199409

main87010-22130iGX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV¥189,000199304-199409

sub87010-22140¥189,000

main87010-22140iGX90,JZX90,93,SX90..GD,GL,GRO,TOUS,TOUV¥189,000199304-199409

main87010-22160iJZX9#..GDG¥189,000199409-199609

sub87010-22170¥189,000

main87010-22160iJZX90..GD¥189,000199409-199509

sub87010-22170¥189,000

main87010-22170iJZX90..GD¥189,000199409-199509

main87010-22170iJZX9#..GDG¥189,000199409-199609

main87010-22180iGX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV¥189,000199409-199609

sub87010-22190¥189,000

main87010-22190iGX90,JZX90,93,SX90..GD,GL,GRO,TOUS,TOUV¥189,000199409-199609

main87010-22200iLX90¥189,000199409-199609

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-22070iJZX9#..GDG199210-199305

main87103-22090iGX90,JZX9#,LX90,SX90199409-199412

sub87103-22100

main87103-22100iGX90,JZX9#,LX90,SX90199304-199609

main87103-22110iLX90199210-199609

main87103-33010iLX90199409-199412

sub87103-22110

87105DFAN SUB-ASSY, BLOWER

main87105-33010iGX90,JZX9#,LX90,SX90199409-199412

sub87103-22100

sub87103-22110

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-22130iGX90,JZX9#,LX90,SX90199210-199609

FRESH-RECIRC

main87106-22140iJZX90..GD199310-199509

main87106-22140iJZX9#..GDG199210-199609

main87106-22160iGX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV199210-199609

main87106-22170iGX90,JZX9#,LX90,SX90199210-199609

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-22240iGX90,JZX9#,LX90,SX90199210-199609

main87107-22250iLX90199210-199609

8715

87165CCONTROL, BLOWER MOTOR

main87165-22020iGX90,JZX9#,LX90,SX90¥16,100199210-199609

sub87165-22010¥16,000

87208FPIPE SUB-ASSY, WATER

main87208-22280iGX90,JZX9#,LX90,SX90199210-199609

87211KDUCT, AIR

main87211-22170iGX90,JZX9#,LX90,SX90199210-199609

87286CABLE, CONTROL

main87286-22010iGX90,JZX9#,LX90,SX90199210-199609

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22220iGX90,JZX9#,LX90,SX90199210-199410

sub88501-22221

main88501-22221iGX90,JZX9#,LX90,SX90199410-199609

88508FILTER SUB-ASSY, CLEAN AIR

main88508-22020iGX90,JZX9#,LX90,SX90¥3,000199210-199609

88515VALVE, COOLER EXPANSION

main88515-22100iGX90,JZX9#,LX90,SX90¥10,500199210-199409

sub88515-22220¥10,500

main88515-22220iGX90,JZX9#,LX90,SX90¥10,500199409-199609

88524PANEL, COOLING BOX, BOTTOM

main88524-22010iLX90¥0199210-199609

main88524-22020iGX90,JZX9#,LX90,SX90¥0199304-199609

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22180iGX90,JZX90,91,LX90,SX90199210-199609

main88539-22230iJZX93199310-199609

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22750iJZX90..GD199310-199509

main88605-22750iJZX9#..GDG199210-199609

main88605-22760iLX90199409-199609

main88605-22760iGX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV199210-199609

main88605-22780iLX90199409-199609

88605SHARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88605-22770iGX90,JZX9#,LX90,SX90199210-199609

main88605-22780iLX90199210-199409

88625THERMISTOR, COOLER, NO.1

main88625-22230iGX90,JZX9#,LX90,SX90199210-199609

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-22580iJZX9#..GDG199210-199304

main88650-22581iJZX9#..GDG199304-199509

main88650-22590iJZX90,SX90..GD,GL,GRO,TOUS,TOUV199210-199304

main88650-22591iJZX90,93,SX90..GD,GL,GRO,TOUS,TOUV199304-199609

main88650-22600iGX90,LX90199210-199304

main88650-22601iGX90,LX90199304-199609

main88650-22610iJZX9#..GDG199210-199304

main88650-22611iJZX9#..GDG199304-199310

main88650-22612iJZX9#..GDG199310-199609

88669BHOSE, COOLER AIR

main88669-22060iGX90,JZX9#,LX90,SX90199210-199609

88710ATUBE ASSY, AIR CONDITIONER

main88710-22600iLX90¥10,000199210-199304

sub88710-22740¥10,000

main88710-22600iGX90,JZX90,LX90,SX90..GD,GL,GRO,TOUS,TOUV¥10,000199304-199409

sub88710-22740¥10,000

main88710-22740iGX90,JZX9#,LX90,SX90¥10,000199409-199609

88790DTHERMISTOR ASSY

main88790-22080iGX90,JZX9#,LX90,SX90199210-199609

88897UPIPE, ASPIRATOR

main88897-22100iGX90,JZX9#,LX90,SX90199210-199609

88899KPLATE, COVER

main88899-22270iGX90,JZX9#,LX90,SX90199210-199609

88899MPLATE, COVER(FOR AIR FILTER)

main88899-22280iGX90,JZX9#,LX90,SX90199210-199609

8851922030HOLDER, REMOTE BULB

main88519-22030

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857822180PAKING, COOLER AIR DUCT

main88578-22180

8868822890BRACKET, COOLER DIAPHRAGM

main88688-22890

9009900930

main90099-00930

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9009914125

main90099-14125

9014860005

main90148-60005¥160

9017906282

main90179-06282¥90

9048001643

main90480-01643

91655F0616

main91655-F0616¥120

91655G0616

main91655-G0616¥110

9351005012

main93510-05012¥0

9356715012

main93567-15012¥120

41 parts on this diagram · 1 diagram in section
