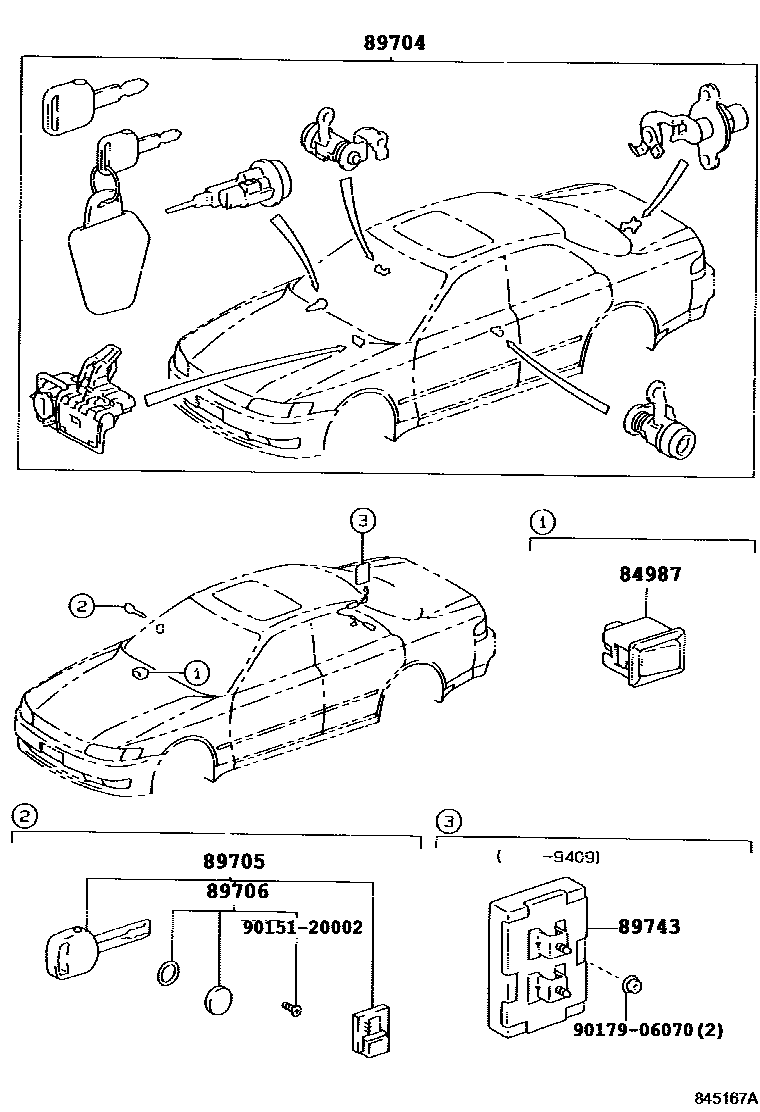

WIRELESS DOOR LOCK

0001 1 0002 1

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-22020iGX90..ATM199304-199309

main84987-22020iJZX9#..GDG199210-199310

main84987-22020iJZX90..GD199310-199312

main84987-22020iJZX90,91..GD,GDG199310-199409

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-22050iGX90..ATM199304-199309

sub89708-22070

main89704-22050iJZX9#..GDG199210-199310

sub89708-22070

main89704-22050iJZX90..GD199310-199312

sub89708-22070

main89704-22051iJZX93..GD;JZX90,91..GDG199310-199409

sub89708-22010

main89704-22080iJZX90,91..GD,GDG,TOUV199409-199503

sub89708-22040

main89704-22080iGX90..ATM199412-199503

sub89708-22040

main89704-22080iJZX90..GD199504-199508

sub89708-22040

89705TRANSMITTER, DOOR CONTROL

main89705-22040iGX90199304-199309

main89705-22040iJZX9#..GDG199210-199409

main89705-22040iJZX90..GD199310-199312

89706BATTERY SET, TRANSMITTER

main89706-50010iGX90..ATM199304-199309

sub89745-48020

sub90151-20002

sub90301-14005

main89706-50010iJZX9#..GDG199210-199609

sub89745-48020

sub90151-20002

sub90301-14005

main89706-50010iJZX90..GD199310-199312

sub89745-48020

sub90151-20002

sub90301-14005

main89706-50010iJZX90..GD199504-199508

sub89745-48020

sub90151-20002

sub90301-14005

89743RECEIVER, DOOR CONTROL

main89743-22040iGX90..ATM199304-199309

main89743-22040iJZX9#..GDG199210-199409

main89743-22040iJZX90..GD199310-199312

9015120002

main90151-20002

9017906070

main90179-06070

7 parts on this diagram · 2 diagrams in section
