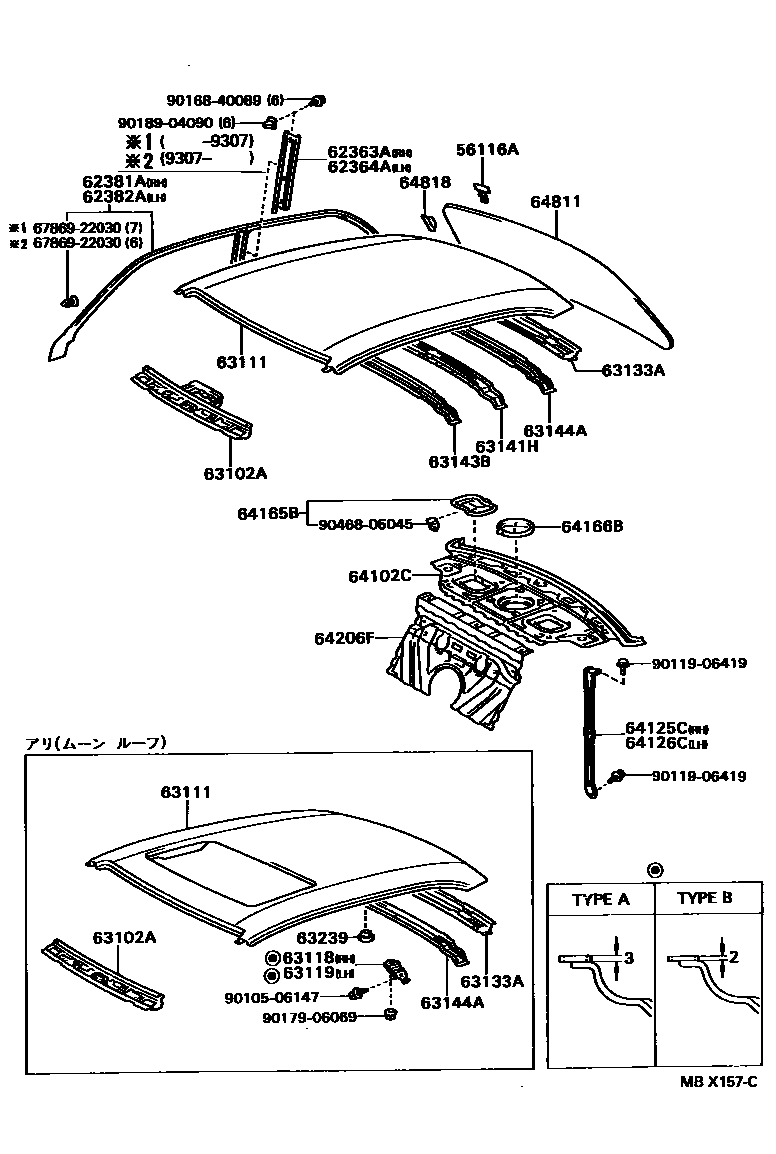

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56116ASPACER, WINDSHIELD GLASS

main56116-22080×2iGX90,JZX9#,LX90,SX90199210-199609

62363ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, NO.3

main62363-22040iGX90,JZX9#,LX90,SX90199210-199609

62364ARETAINER, ROOF SIDE RAIL WEATHERSTRIP, NO.4

main62364-22040iGX90,JZX9#,LX90,SX90199210-199609

62381AWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-22090iGX90,JZX9#,LX90,SX90199210-199609

62382AWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-22090iGX90,JZX9#,LX90,SX90199210-199609

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-22190iGX90,JZX9#,LX90,SX90199210-199609

main63102-22200iJZX9#..GDG,TOUS,TOUV199210-199310

63111PANEL, ROOF

main63103-22130iJZX9#..GDG,TOUS,TOUV199210-199310

main63111-22220iGX90,JZX9#,LX90,SX90199210-199609

63118SUPPORT, ROOF PANEL, RH

main63118-22010iJZX9#..GDG,TOUS,TOUV199210-199310

main63118-22040iGX90,JZX9#199310-199409

63119SUPPORT, ROOF PANEL, LH

main63119-22010iJZX9#..GDG,TOUS,TOUV199210-199310

main63119-22040iJZX9#..GDG,TOUS,TOUV199210-199310

63133AFRAME, BACK WINDOW, UPPER

main63133-22110iGX90,JZX9#,LX90,SX90199210-199609

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-22110iGX90,JZX9#,LX90,SX90199210-199609

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-22120iGX90,JZX9#,LX90,SX90199210-199609

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-22040iGX90,JZX9#,LX90,SX90199210-199609

main63144-22050iGX90,JZX9#199310-199609

63239STOPPER, SLIDING ROOF PANEL

main90480-15026iJZX9#..GDG,TOUS,TOUV199210-199310

64102CPANEL SUB-ASSY, UPPER BACK, INNER

main64102-22010iGX90,JZX9#,LX90,SX90199210-199408

main64102-22011iGX90,JZX9#,LX90,SX90199409-199609

main64102-22020iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199408

main64102-22021iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

64125CBRACKET, UPPER BACK PANEL, RH

main64125-22040iGX90,JZX9#,LX90,SX90199210-199609

64126CBRACKET, UPPER BACK PANEL, LH

main64125-22040iGX90,JZX9#,LX90,SX90199210-199609

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-22040×2iGX90,JZX9#,LX90,SX90199210-199609

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-22060iGX90,JZX90,93,LX90,SX90199210-199609

64206FPANEL SUB-ASSY, ROOM PARTITION

main64206-22010iGX90,JZX9#,LX90,SX90199210-199609

64811GLASS, BACK WINDOW

main64811-22840iGX90,JZX9#,LX90,SX90199210-199310

main64811-22841iGX90,JZX9#,LX90,SX90199310-199609

main64811-22860iJZX9#..GDG199210-199310

main64811-22861iGX90,JZX90..GD,TOUS,TOUV199509-199609

main64811-22880iGX90,JZX9#,LX90,SX90..GD,GDG,GRO199210-199310

main64811-22881iGX90,JZX9#,LX90,SX90..GD,GDG,GRO199310-199609

main64811-22924iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199310

sub75571-22131

main64811-22925iJZX9#..GDG199210-199310

main64811-22926iGX90,JZX9#,LX90,SX90..GD,GDG,GRO199210-199310

main64811-22927iJZX9#..GDG199210-199310

main64811-22970iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199609

main64811-22971iGX90,JZX90..GD,TOUS,TOUV199509-199609

main64811-22972iGX90,JZX9#,LX90,SX90..GD,GDG,GRO199310-199609

main64811-22973iJZX90,91..GDG199509-199609

main64811-2A010iJZX9#..GDG199210-199310

main64811-2A011iJZX90,91..GDG199509-199609

64818SPACER, BACK WINDOW GLASS

main56126-22030iGX90,JZX9#,LX90,SX90199210-199609

6786922030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-22030

9010506147

main90105-06147

9011906419

main90119-06419

9016840089

main90168-40089

9017906069

main90179-06069

9018904090

main90189-04090

9046805045

main90468-05045

29 parts on this diagram · 2 diagrams in section
