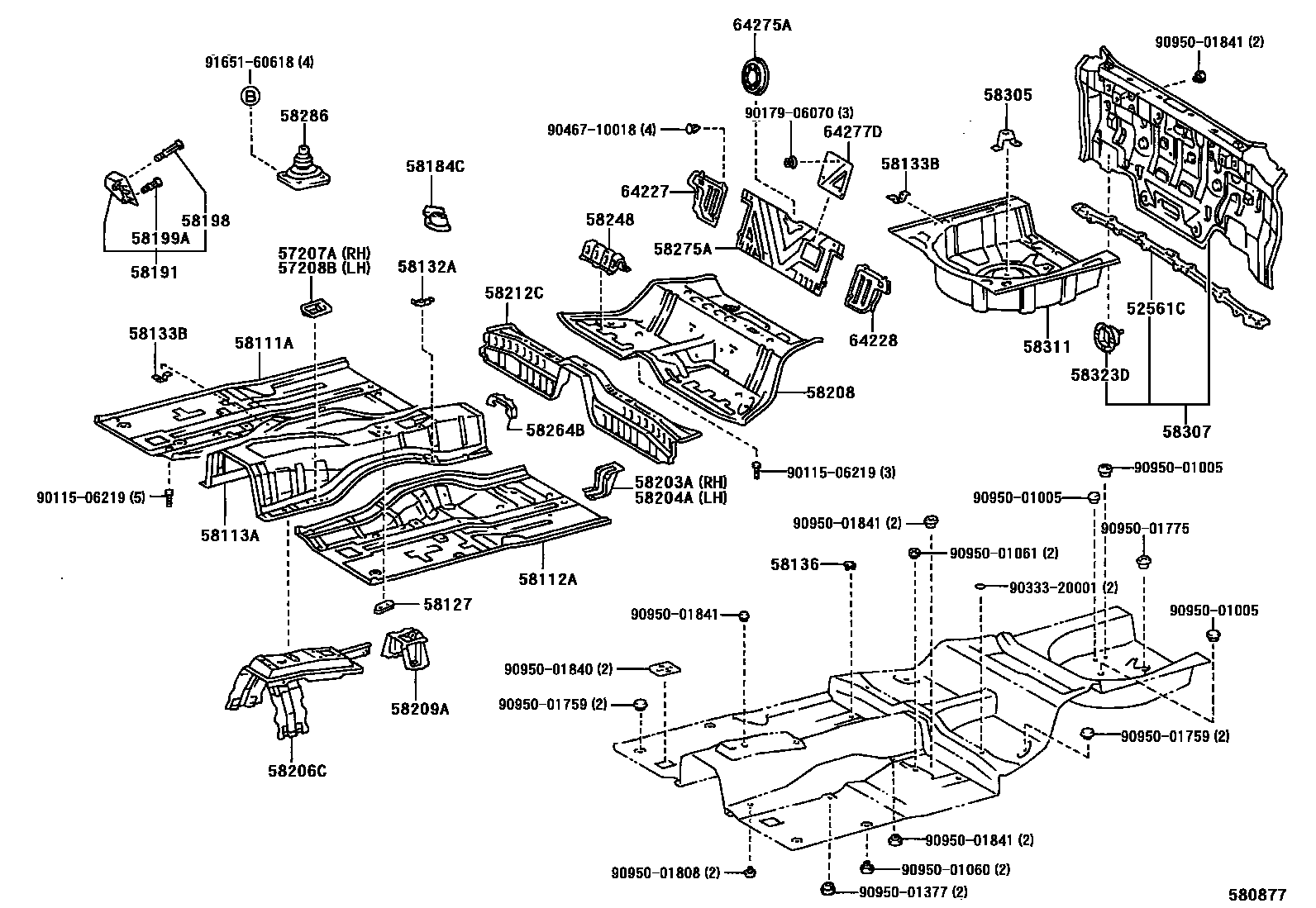

FLOOR PAN & LOWER BACK PANEL
52561CRETAINER, REAR BUMPER, UPPER CENTER
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58127PATCH, FRONT FLOOR PANEL
58132ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.2
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58199ACLIP, FOOTREST, NO.2
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58206CCOVER SUB-ASSY, TRANSMISSION, REAR
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
58248REINFORCEMENT, REAR SEAT CUSHION LOCK
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58286BOOT, SHIFT & SELECT LEVER, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT
64227EXTENSION, CENTER FLOOR TO BRACE
64228EXTENSION, CENTER FLOOR TO BRACE, NO.2
64275ACOVER, ROOM PARTITION
64277DCOVER, ROOM PARTITION, NO.2
9011506219
9017906070
9033320001
9046710018
9095001005
9095001060
9095001061
9095001377
9095001759
9095001775
9095001808
9095001840
9095001841
9165160618
46 parts on this diagram · 1 diagram in section
