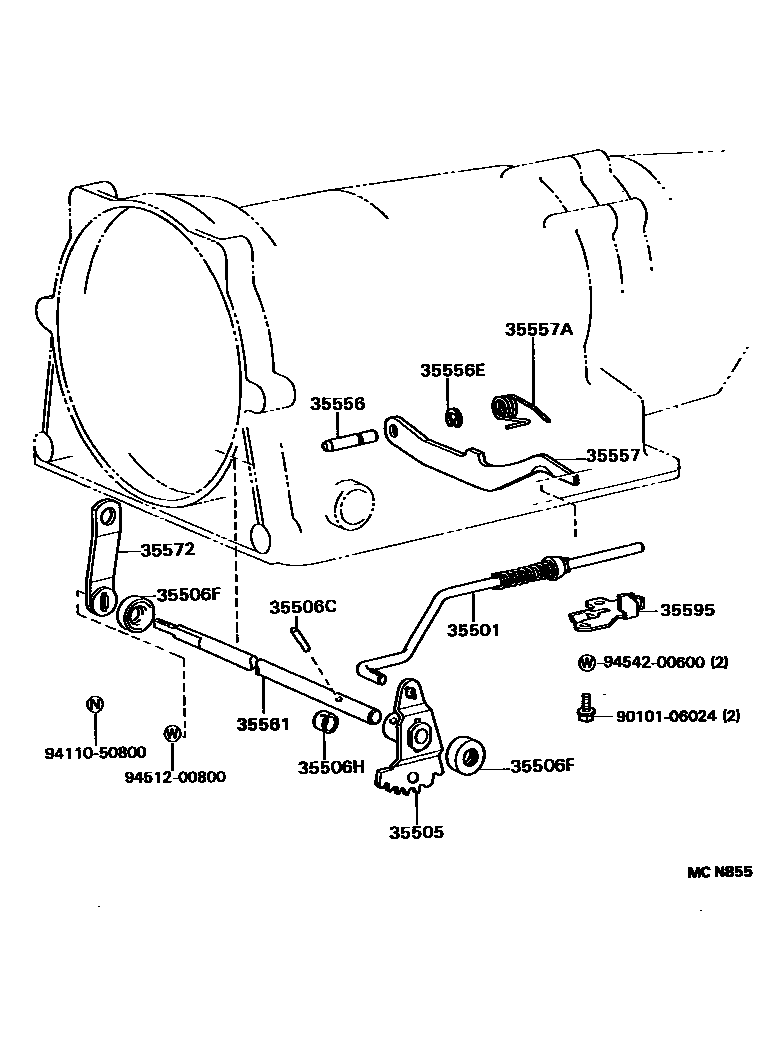

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1 0004 1 0005 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-22020iGX90,LX90,SX90..ATM199210-199609

main35501-30010iJZX9#..ATM199210-199609

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22050iGX90,LX90,SX90..ATM199210-199609

main35505-22060iJZX9#..ATM199210-199609

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGX90,JZX9#,LX90,SX90..ATM199210-199609

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iGX90,LX90,SX90..ATM199210-199609

main90311-12002iJZX9#..ATM199210-199609

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iGX90,LX90,SX90..ATM199210-199609

sub90560-20025

main90560-20006iJZX9#..ATM199210-199609

35556SHAFT, PARKING LOCK PAWL

main35556-26010iGX90,LX90,SX90..ATM199210-199609

main35556-30020iJZX9#..ATM199210-199609

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGX90,JZX9#,LX90,SX90..ATM199210-199609

35557PAWL, PARKING LOCK

main35557-30020iJZX9#..ATM199210-199609

main35557-35010iGX90,LX90,SX90..ATM199210-199609

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iJZX9#..ATM199210-199609

main90508-25001iGX90,LX90,SX90..ATM199210-199609

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iJZX90,91..ATM199210-199609

main35561-35010iJZX93199310-199609

main35561-40010iGX90,LX90,SX90..ATM199210-199609

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22040iGX90,LX90,SX90..ATM199210-199609

main35572-30060iJZX90,91..ATM199210-199609

main35573-30050iJZX93199310-199609

35595BRACKET, PARKING LOCK PAWL

main35595-30010iJZX9#..ATM199210-199609

main35595-40010iGX90,LX90,SX90..ATM199210-199609

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 5 diagrams in section
