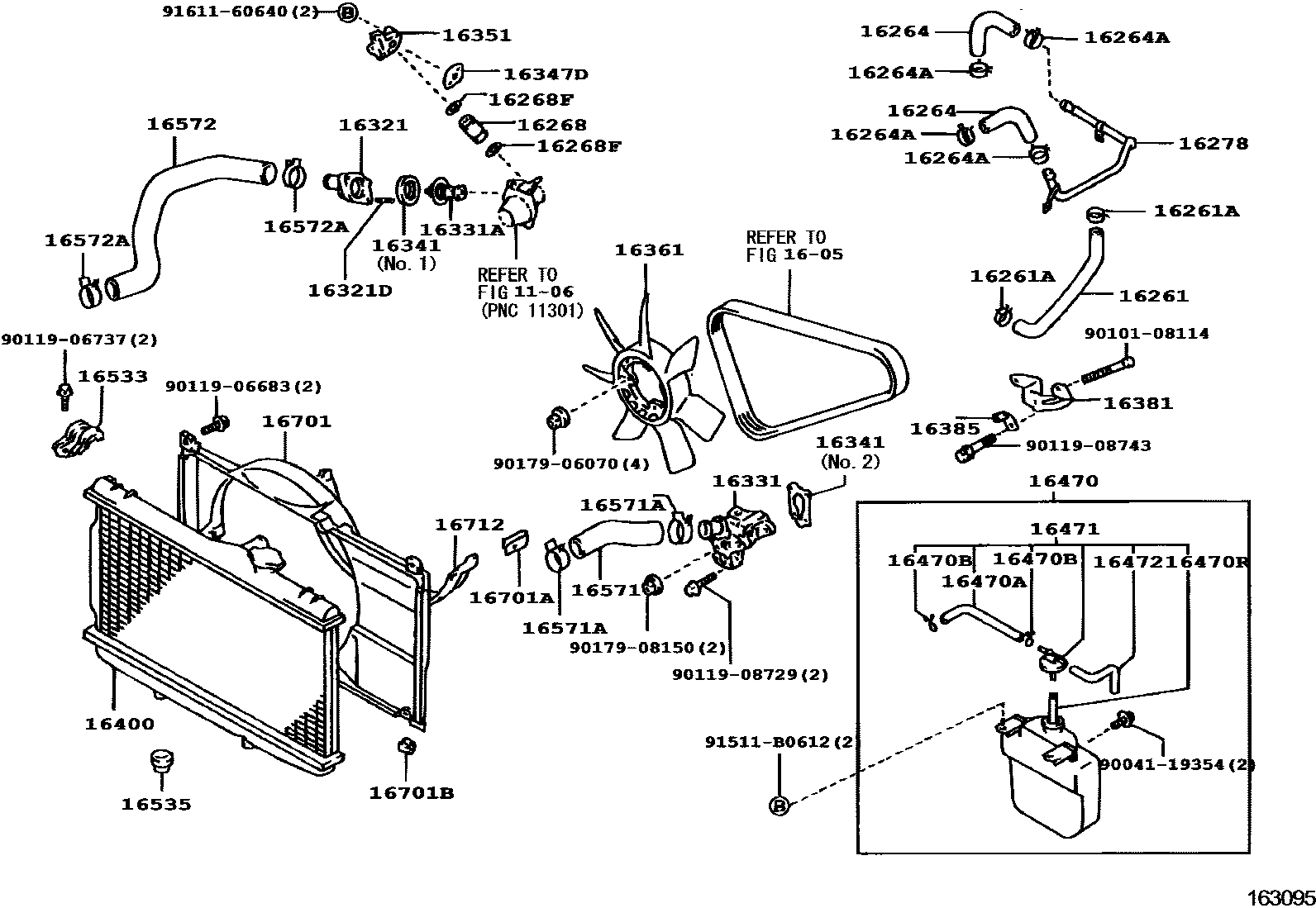

RADIATOR & WATER OUTLET
1106
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
sub96135-51300
sub96135-51300
sub96134-41900
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
sub96135-51300
sub96135-51300
sub96134-41900
sub90467-21010
16268PIPE, WATER BY-PASS, NO.1
16268FRING, O(FOR WATER BY-PASS PIPE)
16278PIPE, WATER BY-PASS, NO.2
16321DBOLT, STUD(FOR WATER INLET)
16347DGASKET, WATER BY-PASS
16361FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400RADIATOR ASSY
sub16400-46240
sub16400-5B440
sub16400-5B440
sub16400-70500
sub16400-70500
sub16400-7A370
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-37005
sub90467-37005
sub90467-37005
sub90466-41003
sub90467-41002
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16712SHROUD, FAN, NO.2
9004119354
main90041-19354
9010108114
main90101-08114
9011906683
main90119-06683
9011906737
main90119-06737
9011908729
main90119-08729
9011908743
main90119-08743
9017906070
main90179-06070
9017908150
main90179-08150
91511B0612
main91511-B0612
9161160640
main91611-60640
46 parts on this diagram · 9 diagrams in section
