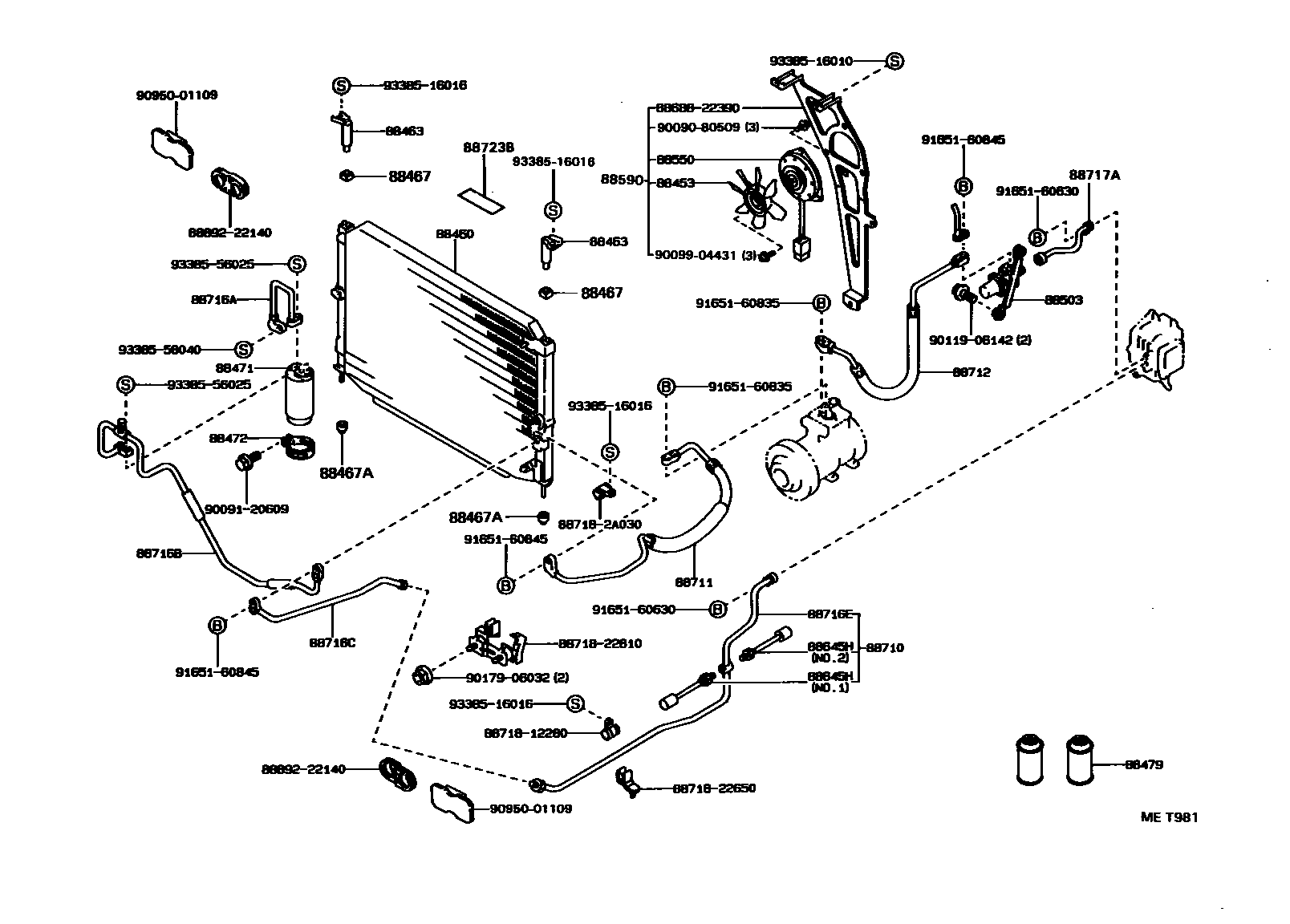

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1���- ��� 0011 1 0012 1 0013 1 0014 1 0016 1 0017 1

88453FAN, COOLING (FOR CONDENSER)

main88453-12040iGX81..4FC..TWT;JZX81,MX83..TWC198808-199512

88460CONDENSER ASSY, COOLER

main88460-22390iGX81,MX83,SX80..GD,GDG,GT,KYO198808-199305

main88460-22410iYX80198808-199305

main88460-22420iLX80..GL..DSL198808-199302

main88460-22420iLX80199302-199308

main88460-22480iYX80199302-199512

main88460-22490iGX81,SX80..GD,GL,GR199302-199512

88463BRACKET, COOLER CONDENSER, NO.1

main88463-22010iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG198808-199512

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32030iLX80..GR,KYO;LX80..GL..TD;GX81,SX80,YX80..GL,GR,KYO,LG,STD198808-199512

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-32020iLX80..GR,KYO;LX80..GL..TD;GX81,SX80,YX80..GL,GR,KYO,LG,STD198808-199512

88471TANK, RECEIVER AIR CONDITIONER

main88470-22010iLX80199302-199308

main88470-22010iYX80;LX80..KYO198808-199302

main88471-12020iGX81,MX83..GD,GDG,GT198808-199302

sub88471-12060

main88471-16040iLX80,SX80..GL,STD198808-199305

sub88471-16050

main88471-22040iYX80199302-199512

main88471-60010iGX81,SX80..GD,GL,GR199302-199512

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iYX80;LX80..KYO198808-199302

main88472-22090iLX80199302-199308

main88473-22020iLX80,SX80..GL,STD198808-199512

main88473-22070iYX80..GL199302-199512

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iLX80,SX80..(GL,STD)..(CI,TD)198808-198910

sub90986-02004

sub90986-02005

main90986-02004iGX81,LX80,SX80..GR,LG198903-199308

main90986-02007iYX80..GL199302-199512

main90986-02008iSX80..KYO199305-199512

88503REGULATOR ASSY, PRESSURE

main88503-22180iGX81,MX83..GD,GDG,GT198808-199012

sub88503-22181

main88503-22181iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG199012-199302

main88503-22190iGX81,LX80,SX80..(GL,GR,LG,STD)..(CI,HTWC,TD)198808-199012

sub88503-22191

main88503-22191iSX80..STD199012-199302

main88503-22220iLX80..GL..DSL198808-199008

main88503-22220iSX80..KYO198808-199305

main88503-22230iLX80199302-199303

main88503-22230iLX80..GL..DSL199008-199302

main88503-22231iLX80199303-199308

main88503-22270iGX81,SX80..GD,GL,GR199302-199512

main88503-22320iSX80..KYO199305-199512

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-22040iGX81..4FC198808-199512

sub88550-22060

main88550-22040iGX81,MX83..4FC..(GDG,GT)..(TWC,TWT)198809-198909

sub88550-22060

main88550-22050iGX81..4FC..TWT;JZX81,MX83..TWC198809-199302

main88550-22060iGX81..4FC..TWT;JZX81,MX83..TWC198909-199302

main88550-22070iJZX81..TWT199008-199210

88590BLOWER ASSY, W/SHROUD

main88590-22050iGX81,MX83..4FC..(GDG,GT)..(TWC,TWT)198808-199008

main88590-22060iGX81..5F..TWT198808-199008

main88590-22070iGX81..4FC..(HTWC,SPC,TWC)198808-199512

main88590-22101iJZX81..TWT199008-199210

main88590-22110iJZX81,MX83..TWC199008-199302

88645HSWITCH, PRESSURE NO.1

main88645-20010iSX80..KYO198808-199305

main88645-20010iSX80..GR198808-198811

main88645-20050iYX80..4FC;YX80..5F..GL;GX81,SX80..GD,GL,GR199302-199512

main88645-22050iLX80..4FC..GL198808-199308

main88645-22070iGX81,SX80;YX80..5F..KYO199305-199512

main88645-30280iYX80;LX80,SX80..KYO198808-198909

sub88645-30281

main88645-30281iLX80,SX80..(GL,STD)..(CI,TD)198909-199308

88710TUBE ASSY, AIR CONDITIONER

main88710-22260iGX81,JZX81,LX80,MX83..4FC..(GD,GDG,GL,GR,LG)198808-199302

main88710-22280iGX81,LX80..5F..(GD,GL,GR,LG)198808-199302

main88710-22290iSX80..GR198808-199302

main88710-22300iGX81,LX80..5F..(GR,LG)198808-199008

main88710-22310iGX81,LX80..4FC..(GL,GR,LG)198808-199008

main88710-22390iLX80..GL..DSL198808-199302

main88710-22390iLX80;YX80..3FC199302-199308

main88710-22400iSX80..KYO198808-199305

main88710-22410iYX80..5F;YX80..3FC..GL198808-199305

main88710-22520iJZX81,SX80..GL,GR,GT199008-199302

main88710-22620iGX81,SX80..GD,GL,GR199302-199512

main88710-22650iYX80..GL199302-199512

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-22420iGX81..SPC198808-198908

sub88711-22421

main88711-22421iGX81..SPC198908-199008

main88711-22430iGX81..LG198808-199101

sub88711-22431

main88711-22431iGX81199101-199302

sub88720-22031

main88711-22470iSX80..KYO198808-199305

sub88711-22471

main88711-22480iLX80..GR198808-199208

sub88711-22481

main88711-22481iLX80..GL,GR199208-199302

sub88720-22171

main88711-22520iYX80198808-199305

main88711-22550iMX83..HT198908-199101

sub88711-22551

main88711-22551iMX83199101-199302

sub88720-22141

main88711-22560iJZX81..TWT199008-199106

sub88711-22561

main88711-22561iJZX81..TWT199106-199210

sub88720-22151

main88711-22580iSX80..STD199008-199101

sub88711-22581

main88711-22581iSX80..STD199101-199302

sub88720-22161

main88711-22590iLX80..GL..DSL199008-199302

main88711-22590iLX80199302-199308

main88711-22610iJZX81..TWC199008-199106

sub88711-22611

main88711-22611iJZX81..TWC199106-199302

sub88720-22221

main88711-22670iGX81199302-199512

sub88720-22290

main88711-22680iSX80..GL,GR199302-199512

main88711-22720iYX80..GL199302-199512

main88711-22730iSX80..KYO199305-199512

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-22640iGX81..SPC198808-199008

sub88712-2A190

main88712-22650iGX81198808-199101

sub88712-22651

main88712-22651iGX81199101-199302

main88712-22720iSX80..GL,STD198808-199008

main88712-22730iLX80..GL..DSL198808-199101

sub88712-22731

main88712-22731iLX80..GL,GR199101-199302

sub88720-22181

main88712-22760iYX80..KYO198808-199305

main88712-22780iSX80..KYO198808-199305

main88712-22810iLX80..GL..DSL198808-199008

main88712-22820iMX83198908-199101

sub88712-22821

main88712-22821iMX83199101-199302

main88712-22830iJZX81199008-199101

sub88712-22831

main88712-22831iJZX81199101-199302

main88712-22840iSX80..GL,GR199008-199101

sub88712-22841

main88712-22841iSX80..GL,GR199101-199302

main88712-22870iLX80199302-199308

main88712-22870iLX80..GL..DSL199008-199302

main88712-2A040iGX81199302-199512

main88712-2A050iSX80..GL,GR199302-199512

main88712-2A090iYX80..GL199302-199512

main88712-2A100iSX80..KYO199305-199512

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-22820iGX81,LX80..(GDG,GL,GR)..(SPC,TD)198808-199302

main88716-22840iGX81,SX80..CI,HTWC,TWC,TWT198808-199305

main88716-2A110iLX80199302-199308

main88716-2A110iYX80;LX80..KYO198808-199302

main88716-2A170iJZX81..TWT199008-199210

main88716-2A260iGX81,SX80..GD,GL,GR199302-199512

main88716-2A370iYX80..GL199302-199512

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-22830iGX81,LX80..(GDG,GL,GR)..(SPC,TD)198808-199302

main88716-22850iGX81,MX83,SX80..(GD,GDG,GT,KYO)..(CI,HTWC,TWC,TWT)198808-199305

main88716-2A120iYX80;LX80..KYO198808-199302

main88716-2A120iLX80;YX80..KYO199302-199308

main88716-2A180iJZX81..TWT199008-199210

main88716-2A270iGX81,SX80199302-199512

main88716-2A360iYX80199302-199512

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88716-2A060iSX80..STD198808-199308

main88716-2A160iJZX81..TWT199008-199210

main88716-2A380iYX80;SX80..KYO199302-199512

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-2A040iSX80..GR;GX81,LX80..4FC..(GR,LG)198808-199302

main88716-2A050iGX81,LX80..5F..(GR,LG)198808-199008

main88716-2A130iLX80..GL..DSL198808-199302

main88716-2A130iLX80;SX80..KYO;YX80..3FC199302-199308

main88716-2A140iYX80..5F..KYO198808-199305

main88716-2A390iYX80..GL199302-199512

main88716-2A430iSX80..KYO199305-199512

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-22340iSX80..GL,STD198903-199008

main88717-22340iLX80..GL..DSL198808-199302

main88717-22410iYX80198808-199305

main88717-22420iLX80199302-199308

main88717-22420iLX80..GL..DSL198808-199302

main88717-22450iSX80..GL,GR,STD198808-199302

main88717-22470iGX81,SX80..GD,GL,GR199302-199512

main88717-22540iYX80..GL199302-199512

main88717-22550iSX80..KYO199305-199512

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iGX81,SX80,YX80..GD,GL,GR199302-199512

sub88733-30040

main88723-22040iGX81,LX80,SX80..GR,LG198912-199308

8868822390BRACKET, COOLER DIAPHRAGM

main88688-22390

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8871822650PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22650

8871822810PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22810

887182A030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2A030

8889222140BRACKET, COOLER EVAPORATOR MOUNTING

main88892-22140

9009080509

main90090-80509

9009120609

main90091-20609

9009904431

main90099-04431

9011906142

main90119-06142

9017906032

main90179-06032

9095001109

main90950-01109

9165160630

main91651-60630

9165160835

main91651-60835

9165160845

main91651-60845

9338516010

main93385-16010

9338516016

main93385-16016

9338556025

main93385-56025

9338558040

main93385-58040

40 parts on this diagram · 14 diagrams in section
