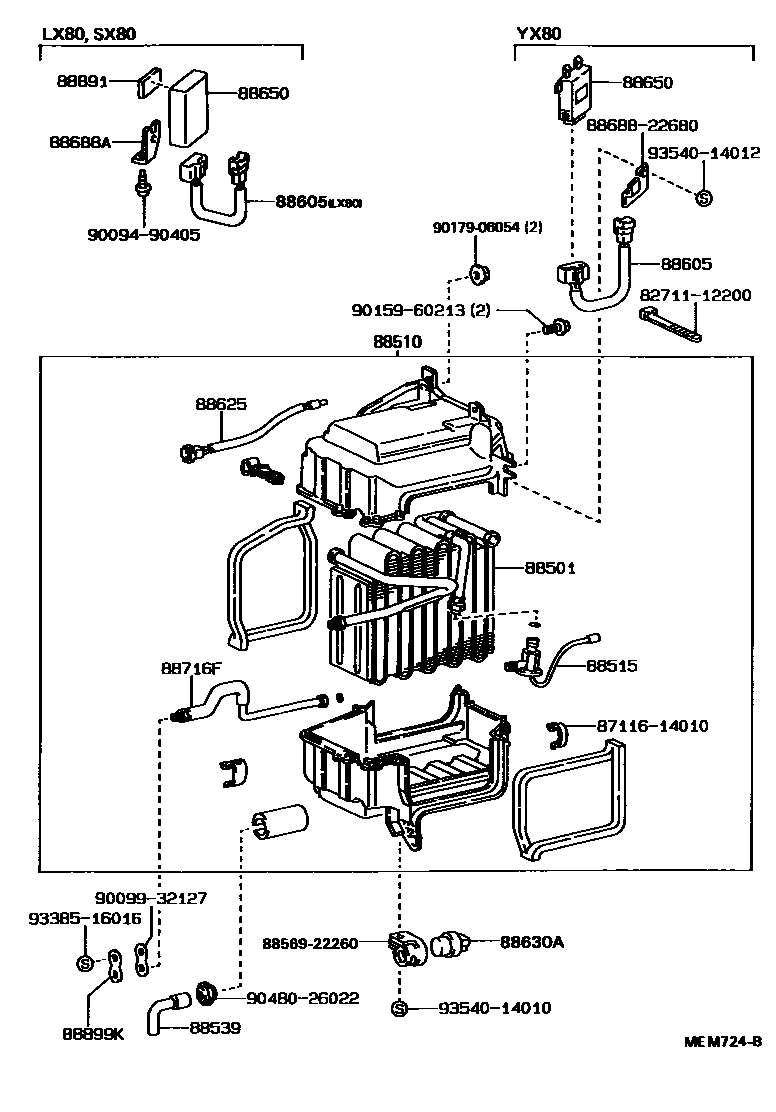

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1(GL=TAXI SPEC) 0002 1 0003 1 0005 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22180iGX81,LX80,SX80..(GD,GDG,GL,GR,GT,LG,STD)..(CI,HTWC,SPC,TD,TWC,TWT)198808-199302

main88501-22200iLX80..GL..DSL198808-199302

main88501-22200iLX80;SX80,YX80..KYO199302-199308

main88501-22210iGX81,MX83..GD,GDG,GT198903-199302

main88501-22230iGX81,SX80..GD,GL,GR199302-199408

sub88501-22231

main88501-22231iGX81,SX80..GD,GL,GR199408-199512

main88501-22240iGX81,SX80..GD,GL,GR199302-199408

sub88501-22241

main88501-22241iYX80..GL199408-199512

main88501-22270iSX80,YX80..KYO199305-199512

88510UNIT ASSY, COOLER

main88510-22420iGX81..SPC198808-199008

main88510-22430iGX81,LX80,SX80..GR,LG198808-199302

main88510-22520iLX80..GL..DSL;GX81,LX80,SX80..GR,LG198808-199302

main88510-22550iYX80..KYO198808-199305

main88510-22570iLX80199302-199308

main88510-22570iSX80..KYO198808-199302

main88510-22580iGX81,LX80,SX80..GR,LG198808-199008

main88510-22600iGX81..SPC198903-199008

main88510-22610iGX81,LX80,SX80..GR,LG198903-199302

sub88510-22650

sub88569-22260

sub90987-03001

main88510-22620iGX81,LX80,SX80..GR,LG198903-199008

sub88510-22650

main88510-22630iGX81,LX80,SX80..GL,GR,LG,STD198903-199302

sub88510-22730

main88510-22640iGX81,JZX81,MX83..GD,GDG,GT199008-199302

main88510-22650iGX81,JZX81,MX83..GD,GDG,GT199008-199302

main88510-22720iLX80,SX80..GL199008-199302

main88510-22730iLX80,SX80..GL199008-199302

main88510-22740iSX80..GR199302-199512

main88510-22750iGX81199302-199512

main88510-22760iSX80..GL199302-199512

main88510-22770iSX80..GR199302-199512

main88510-22780iGX81199302-199512

main88510-22790iSX80..GL199302-199512

main88510-22820iYX80..GL199302-199512

main88510-22830iSX80..KYO199305-199512

main88510-22840iYX80..KYO199305-199512

88515VALVE, COOLER EXPANSION

main88515-20050iLX80..KYO;YX80..3FC..KYO198808-199305

sub88515-20051

main88515-22070iLX80..GL..DSL198808-199302

sub88515-22071

main88515-22070iLX80199302-199308

sub88515-22071

main88515-22080iLX80..GL..DSL198808-198812

sub88515-22081

main88515-22081iLX80,SX80..GL,STD198812-199302

sub88515-22082

main88515-22082iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG199204-199302

main88515-22120iGX81,SX80..GD,GL,GR199302-199512

main88515-22130iYX80..4FC;YX80..5F..GL199302-199311

sub88515-22180

main88515-22140iSX80..KYO199305-199512

main88515-22170iYX80..5F;YX80..3FC..GL199008-199305

main88515-22180iYX80..5F..KYO199305-199512

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22130iGX81,MX83..GD,GDG,GT198808-199512

main88539-22150iLX80,YX80..KYO198808-199512

main88539-22160iLX80..GL..DSL198808-199302

main88539-22160iLX80199302-199308

main88539-22170iSX80..KYO198808-199512

main88539-22190iGX81199302-199512

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22650iLX80..GR198808-199308

main88605-22660iLX80..KYO..DSL199008-199302

DOP

main88605-22660iLX80..KYO..DSL198808-199008

main88605-22670iYX80198808-199512

main88605-22680iLX80..KYO..TD199008-199302

MOP

88625THERMISTOR, COOLER, NO.1

main88625-22160iYX80;LX80..KYO198808-199512

main88625-22170iGX81,LX80,SX80..GR,LG198903-199008

main88625-22170iGX81,LX80,SX80..GD,GDG,GR,GT,LG198808-199512

main88625-22260iYX80..GL199302-199512

sub88625-22160

88630RELAY ASSY, COOLER

main90987-02004iGX81,MX83..GD,GDG,GT198808-199512

88630ARELAY ASSY, COOLER

main90987-03001iLX80..GL..DSL198808-199512

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-22250iGX81..SPC198808-199008

main88650-22260iSX80..GR198808-199008

main88650-22280iLX80..GL,GR198808-199008

main88650-22290iLX80..KYO198808-199008

main88650-22300iYX80198808-199008

main88650-22300iYX80199008-199512

main88650-22340iGX81,MX83..GD,GDG,GT198808-199111

main88650-22340iGX81,JZX81,MX83..GD,GDG,GT199008-199512

NO.2

main88650-22380iSX80..GL,KYO,STD198808-199008

main88650-22400iJZX81..TWC199008-199302

NO.1

main88650-22410iSX80..GR199008-199111

NO.1

main88650-22410iSX80199111-199512

main88650-22510iJZX81..TWT199008-199210

NO.1

main88650-22520iLX80..GL,GR199008-199306

main88650-22530iLX80..KYO199008-199302

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-22550iSX80..GR198808-199008

main88688-22660iLX80,SX80..KYO198808-199008

main88688-22700iLX80..GL..TD198808-199008

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-2A150iLX80..GL..DSL198808-199308

main88716-2A400iYX80..GL199302-199512

main88716-2A420iSX80,YX80..KYO199305-199512

88891PACKING (FOR COOLER)

main88578-22140iSX80..GL,STD198808-199008

88899KPLATE, COVER

main88899-22150iLX80..GL..DSL198808-199512

main88899-22220iLX80,YX80;SX80..KYO199302-199512

main88899-22220iYX80;LX80,SX80..KYO198808-199302

main88899-22240iGX81,SX80..GD,GL,GR199302-199512

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8711614010SPRING, HEATER CASE FASTENING

main87116-14010

8856922260CLAMP (FOR COOLER RELAY)

main88569-22260

8868822680BRACKET, COOLER DIAPHRAGM

main88688-22680

9009490405

main90094-90405

9009932127

main90099-32127

9015960213

main90159-60213

9017906054

main90179-06054

9048026022

main90480-26022

9338516016

main93385-16016

9354014010

main93540-14010

9354014012

main93540-14012

25 parts on this diagram · 4 diagrams in section
