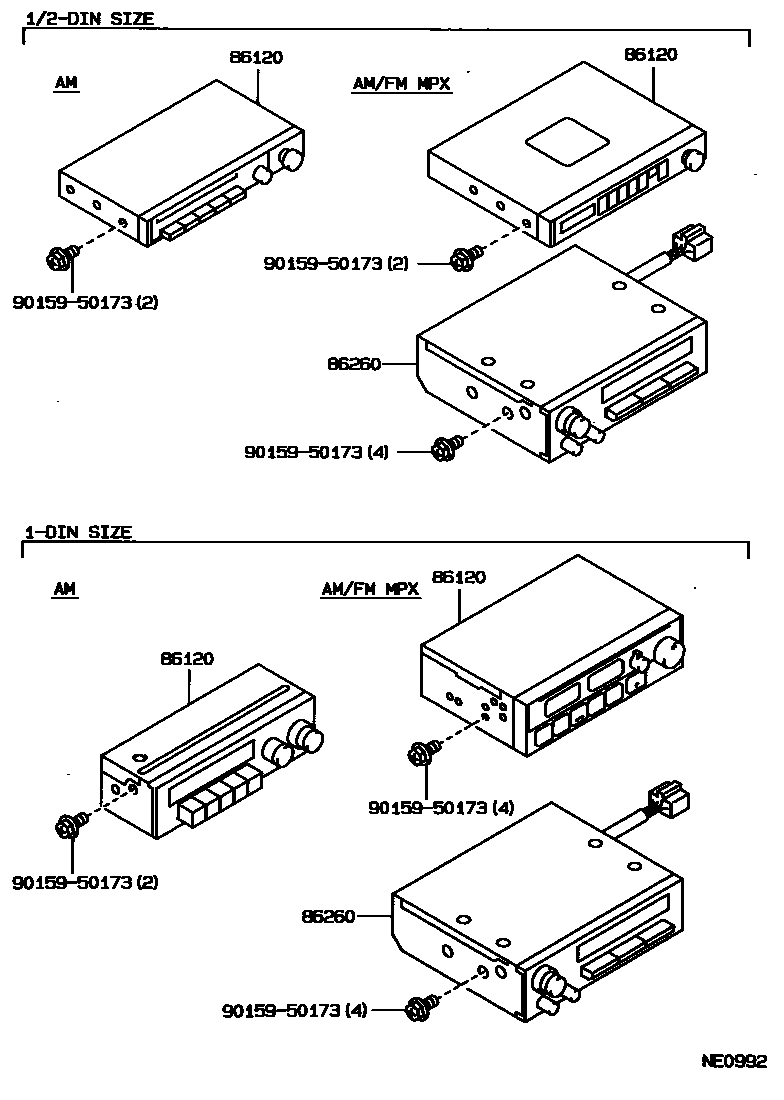

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1CD �-� ������

86120RECEIVER ASSY, RADIO

main86120-16290iYX80..GL198808-199512

sub86120-16291

main86120-16530iLX80,SX80,YX80..KYO,STD198808-199302

sub86120-35080

sub86120-35110

sub86120-37010

main86120-20610iLX80..GL..DSL198808-199302

main86120-20650iLX80..SED..(GL,GR);GX81,SX80..GL,GR,LG198808-199008

main86120-22840iGX81..SED..GD..HTWC198808-199302

main86120-22840iLX80,SX80..SED..GR198908-199302

main86120-22840iGX81,SX80..GD,GR199302-199512

main86120-22850iGX81,MX83..SED..GDG198808-199008

main86120-22851iJZX81,MX83..SED..GDG199008-199302

main86120-22860iGX81..SED..(GD,GDG)198808-198908

sub86120-22861

main86120-22861iGX81,MX83..SED..(GD,GDG)198908-199008

main86120-22862iGX81199008-199512

main86120-22870iLX80,SX80..HT198908-199210

main86120-22870iGX81..HT..GD..HTWC198808-199210

main86120-22880iGX81,MX83..HT..GDG198808-199008

main86120-22881iJZX81,MX83..HT..GDG199008-199210

main86120-22890iGX81..HT..(GD,GDG,GT)198808-198908

sub86120-22891

main86120-22891iGX81,MX83..HT..(GD,GDG,GT)198908-199008

main86120-22892iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

main86120-2A080iGX81..SED..TWC198808-199008

sub86120-2A081

main86120-2A081iGX81,JZX81..SED..GD..TWC199008-199302

main86120-2A090iGX81..HT..GD..HTWC199004

main86120-2A090iGX81..HT..GD..HTWC198910-199008

main86120-2A090iGX81..HT..(TWC,TWT)198808-199008

main86120-2A090iGX81..HT..GD198910

main86120-2A091iGX81,JZX81..HT..(GD,GT)..(TWC,TWT)199008-199210

main86120-2A091iGX81..HT..4FC..GD..HTWC199112

main86120-2A130iGX81,JZX81,MX83..SED..(GD,GDG)199008-199302

main86120-2A130iGX81199302-199408

main86120-2A140iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

main86120-2A160iSX80..GL199008-199512

main86120-37010iSX80,YX80..KYO199302-199512

main86120-3A230iYX80..GL199302-199512

sub86120-3A231

86260TAPE PLAYER ASSY

main86260-22230iGX81,LX80,SX80,YX80..GL,GR,LG,STD198808-199302

9015950173

main90159-50173

3 parts on this diagram · 4 diagrams in section
