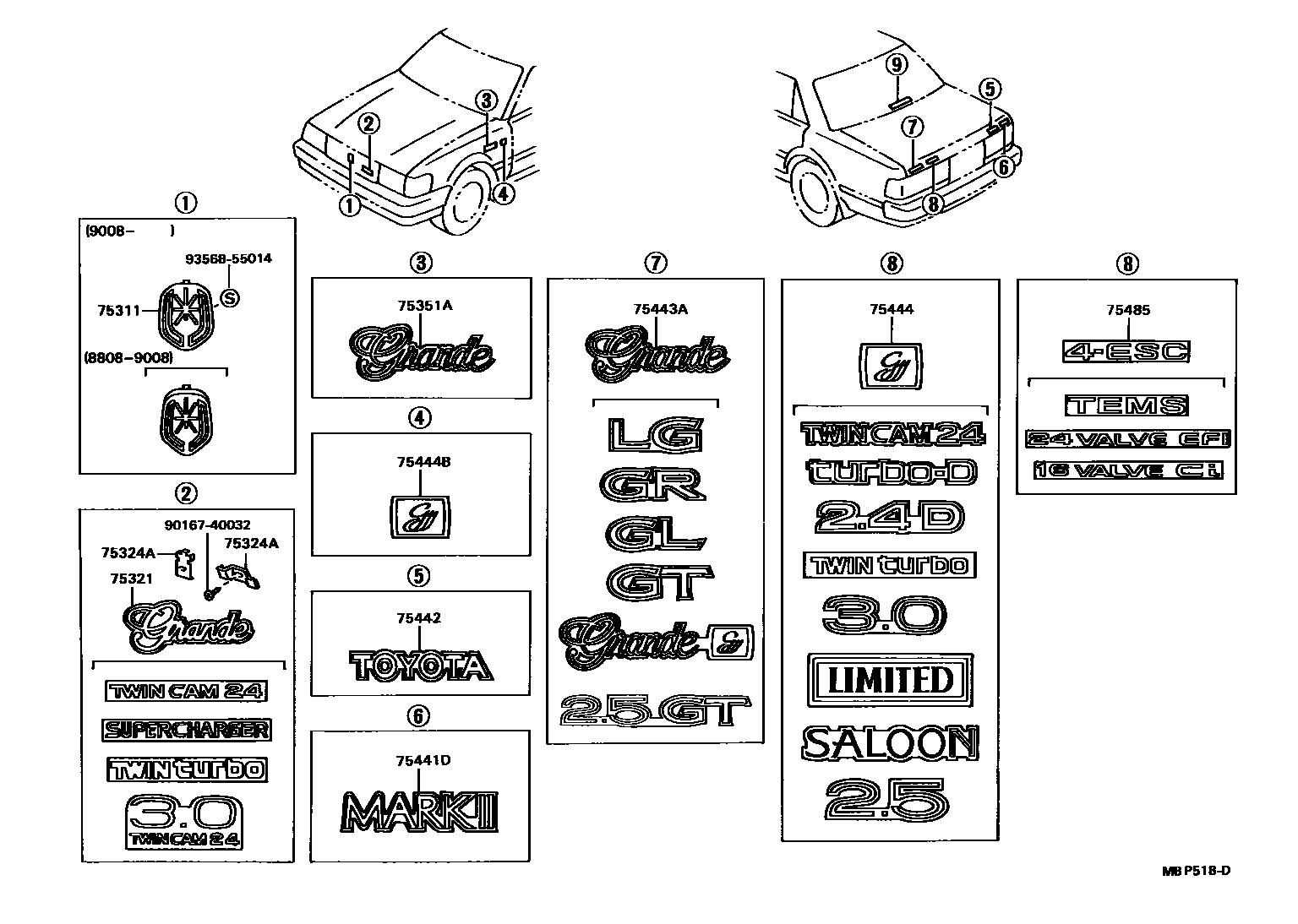

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-22360iGX81,LX80,MX83..SED198808-199008

main75311-22400iLX80..HT198808-199008

main75311-22420iGX81,JZX81,LX80,MX83,SX80,YX80..SED199008-199512

main75311-22440iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-22680iGX81..SED..GD..HTWC198808-199008

main75321-22690iGX81..SED..TWC198808-199008

main75321-22700iGX81..SED..SPC198808-199008

main75321-22720iGX81..HT..GD..HTWC198808-199008

main75321-22730iGX81..HT..TWC198808-199008

main75321-22740iGX81..TWT198808-199008

main75321-22750iGX81..HT..SPC198808-199008

main75321-22770iMX83..SED198908-199008

main75321-22780iMX83..HT198908-199008

75324ARETAINER, RADIATOR GRILLE NAME PLATE

main75324-22070iMX83..SED198908-199008

main75324-22080iMX83..HT198908-199008

75351AEMBLEM, FRONT FENDER

main75351-22030-01iJZX81,MX83..SED..GDG199008-199302

BLACK,182 ,183 ,24S ,3K1 ,6L8 ,869

sub75351-22030

main75351-22030-01iGX81..SPC198903-198908

BLACK,8E3

sub75351-22030

main75351-22030-01iGX81,MX83..GDG198908-199008

BLACK,183 ,8E3

sub75351-22030

main75351-22030-01iJZX81,MX83..SED..GDG199008-199302

BLACK,182 ,183 ,3K1 ,6L8 ,869

sub75351-22030

main75351-22030-06iGX81,MX83..GDG198908-199008

GRAYISH BROWN,170 ,174

sub75351-22030

main75351-22030-06iGX81..SPC198808-198908

GRAYISH BROWN,170

sub75351-22030

main75351-22030-06iJZX81,MX83..GDG199008-199302

GRAYISH BROWN,4J1

sub75351-22030

main75351-22030-08iGX81,JZX81,MX83..HT..GDG198808-199302

WHITE PEARL MICA,049 ,050

sub75351-22030

main75351-22030-08iGX81,JZX81,MX83..SED..GDG198808-199302

WHITE PEARL MICA,049 ,050 ,22K

sub75351-22030

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-22140iGX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,KYO,LG,STD198808-199512

main75441-22160-01iGX81..SPC198903-198908

sub75441-22160

main75441-22160-01iGX81,MX83..GDG198908-199008

sub75441-22160

main75441-22160-01iJZX81,MX83..HT..GDG199008-199302

sub75441-22160

main75441-22160-01iJZX81,MX83..HT..GDG199008-199302

sub75441-22160

main75441-22160-06iGX81,MX83..GDG198908-199008

sub75441-22160

main75441-22160-06iGX81..SPC198808-198908

sub75441-22160

main75441-22160-06iJZX81,MX83..GDG199008-199302

sub75441-22160

main75441-22160-08iGX81,JZX81,MX83..HT..GDG198808-199302

sub75441-22160

main75441-22160-08iGX81,JZX81,MX83..SED..GDG198808-199302

sub75441-22160

main75441-22160-08iJZX81..HT..GD199205-199210

sub75441-22160

main75441-22160-08iGX81..4FC..GD..HTWC199112-199210

sub75441-22160

main75441-22160-08iGX81..HT..GD..HTWC199109-199110

sub75441-22160

main75441-22160-08iGX81..HT..GD..HTWC199004-199008

sub75441-22160

main75441-22160-08iGX81..HT..GD198910-199008

sub75441-22160

main75441-22160-08iJZX81..GD199105

sub75441-22160

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-22080iLX80198808-199308

main75442-22110-01iJZX81,MX83..SED..GDG199008-199302

sub75442-22110

main75442-22110-01iJZX81,MX83..HT..GDG199008-199302

sub75442-22110

main75442-22110-01iGX81..SPC198903-198908

sub75442-22110

main75442-22110-01iGX81,MX83..GDG198908-199008

sub75442-22110

main75442-22110-06iGX81..HT..GD198908-199008

sub75442-22110

main75442-22110-06iGX81..SPC198808-198908

sub75442-22110

main75442-22110-06iJZX81,MX83..GDG199008-199302

sub75442-22110

main75442-22110-08iGX81,JZX81,MX83..HT..GDG198808-199302

sub75442-22110

main75442-22110-08iGX81,JZX81,MX83..SED..GDG198808-199302

sub75442-22110

main75442-22110-08iJZX81..HT..GD199205-199210

sub75442-22110

main75442-22110-08iGX81..4FC..GD..HTWC199112-199210

sub75442-22110

main75442-22110-08iJZX81..GD199105

sub75442-22110

main75442-22110-08iGX81..HT..GD..HTWC199109-199110

sub75442-22110

main75442-22110-08iGX81..HT..GD198910-199008

sub75442-22110

main75442-22110-08iGX81..HT..GD..HTWC199004

sub75442-22110

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-22600iGX81,JZX81..GD198808-199512

main75443-22610iGX81..LG198808-199302

main75443-22620iLX80,SX80..GR198808-199512

main75443-22630iLX80198808-199308

main75443-22670iGX81..TWT198808-199008

main75443-22680-01iGX81..SPC198908-199008

sub75443-22680

sub75351-22030

main75443-22680-01iGX81..SPC198903-198908

sub75443-22680

sub75351-22030

main75443-22680-06iGX81..SPC198808-198908

sub75443-22680

sub75351-22030

main75443-22680-06iGX81..SPC198908-199008

sub75443-22680

sub75351-22030

main75443-22680-08iJZX81..HT..GD199205-199210

sub75443-22680

sub75351-22030

main75443-22680-08iGX81..SED..SPC198808-199008

sub75443-22680

sub75351-22030

main75443-22680-08iGX81..HT..SPC198808-199008

sub75443-22680

sub75351-22030

main75443-22680-08iGX81..HT..GD198910-199008

sub75443-22680

sub75351-22030

main75443-22680-08iGX81..HT..GD..HTWC199004-199008

sub75443-22680

sub75351-22030

main75443-22680-08iGX81..HT..GD..HTWC199109-199110

sub75443-22680

sub75351-22030

main75443-22680-08iGX81..4FC..GD..HTWC199112-199210

sub75443-22680

sub75351-22030

main75443-22680-08iJZX81..GD199105

sub75443-22680

sub75351-22030

main75443-22690-01iMX83198908-199008

main75443-22690-01iJZX81,MX83..HT..GDG199008-199302

main75443-22690-01iJZX81,MX83..HT..GDG199008-199302

main75443-22690-06iMX83198908-199008

main75443-22690-06iJZX81,MX83..GDG199008-199302

main75443-22690-08iJZX81,MX83..HT..GDG198908-199302

main75443-22690-08iJZX81,MX83..HT..GDG198908-199302

main75443-22700iJZX81..TWT199008-199210

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75350-22010iGX81..HT..GD..HTWC199105

main75350-22010iGX81..HT..GD198910-199008

main75350-22010iGX81..HT..GD..HTWC199004-199008

main75350-22010iGX81..HT..GD..HTWC199109-199110

main75350-22010iGX81..4FC..GD..HTWC199112-199210

main75350-22010iJZX81..HT..GD199205-199210

main75444-22230iGX81..SPC198808-199008

main75444-22240iGX81..TWC198808-199302

main75444-22250iLX80..TD198808-199302

main75444-22260iLX80..DSL198808-199308

main75444-22280iGX81..TWT198808-199008

main75444-22290-01iMX83..HT199008-199302

sub75444-22290

main75444-22290-01iMX83198908-199008

sub75444-22290

main75444-22290-01iMX83..HT199008-199302

sub75444-22290

main75444-22290-06iMX83198908-199008

sub75444-22290

main75444-22290-06iMX83199008-199302

sub75444-22290

main75444-22290-08iMX83..SED198908-199302

sub75444-22290

main75444-22290-08iMX83..HT198908-199302

sub75444-22290

main75444-22300iJZX81..TWT199008-199210

main75444-22310-01iJZX81..SED..GDG199008-199302

sub75444-22320

main75444-22310-01iJZX81..SED..GDG199008-199302

sub75444-22320

main75444-22310-03iJZX81..GDG199008-199302

sub75444-22320

main75444-22310-08iJZX81..SED..GDG199008-199302

sub75444-22320

main75444-22310-08iJZX81..HT..GDG199008-199302

sub75444-22320

main75444-22320iJZX81..GD199008-199302

main75445-22070iSX80..GR198908-199512

75444BPLATE, FRONT FENDER

main75444-22230iGX81,JZX81,MX83..GDG198808-199302

75485PLATE, BACK WINDOW NAME

main75485-22050iGX81..GD198808-199008

main75485-22060iGX81..TWC198808-199008

main75485-22070iGX81..HTWC198808-199008

main75485-22080iSX80..GL,GR198808-199008

sub75485-20370

9016740032

main90167-40032

9356855014

main93568-55014

12 parts on this diagram · 1 diagram in section
