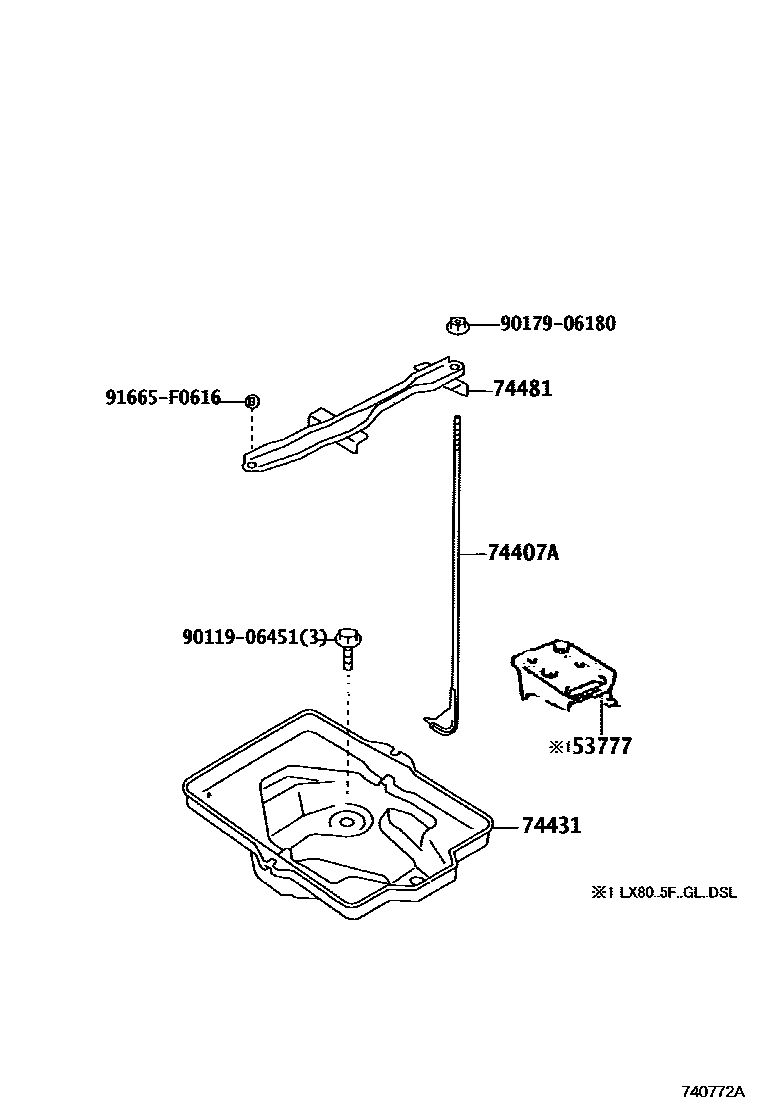

BATTERY CARRIER

0001 1 0003 1

53777SUPPORT, BATTERY CARRIER, NO.2

main53777-22060iLX80..GL..DSL198808-199008

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-22040iGX81,SX80,YX80199302-199512

74431TRAY, BATTERY

main74431-22050iGX81..HTWC;GX81..5F..TWC198808-199512

main74431-22060iGX81199302-199512

main74431-22070iLX80..GL..DSL198808-199302

main74431-22080iJZX81..TWT199008-199210

sub74431-12010

74481CLAMP, BATTERY HOLD DOWN

main74404-22230iGX81..HTWC;GX81..5F..TWC198808-199512

main74404-22240iJZX81..TWT199008-199210

main74404-22260iGX81..4FC..(SPC,TWC,TWT);GX81,LX80..5F..(GL,GT)..(DSL,TWT);JZX81,MX83,SX80,YX80..CI,HTWC,LPG,TWC198808-199302

main74404-22270iLX80198808-199308

main74404-22290iLX80199302-199308

9011906451

main90119-06451

9017906180

main90179-06180

91665F0616

main91665-F0616

7 parts on this diagram · 2 diagrams in section
