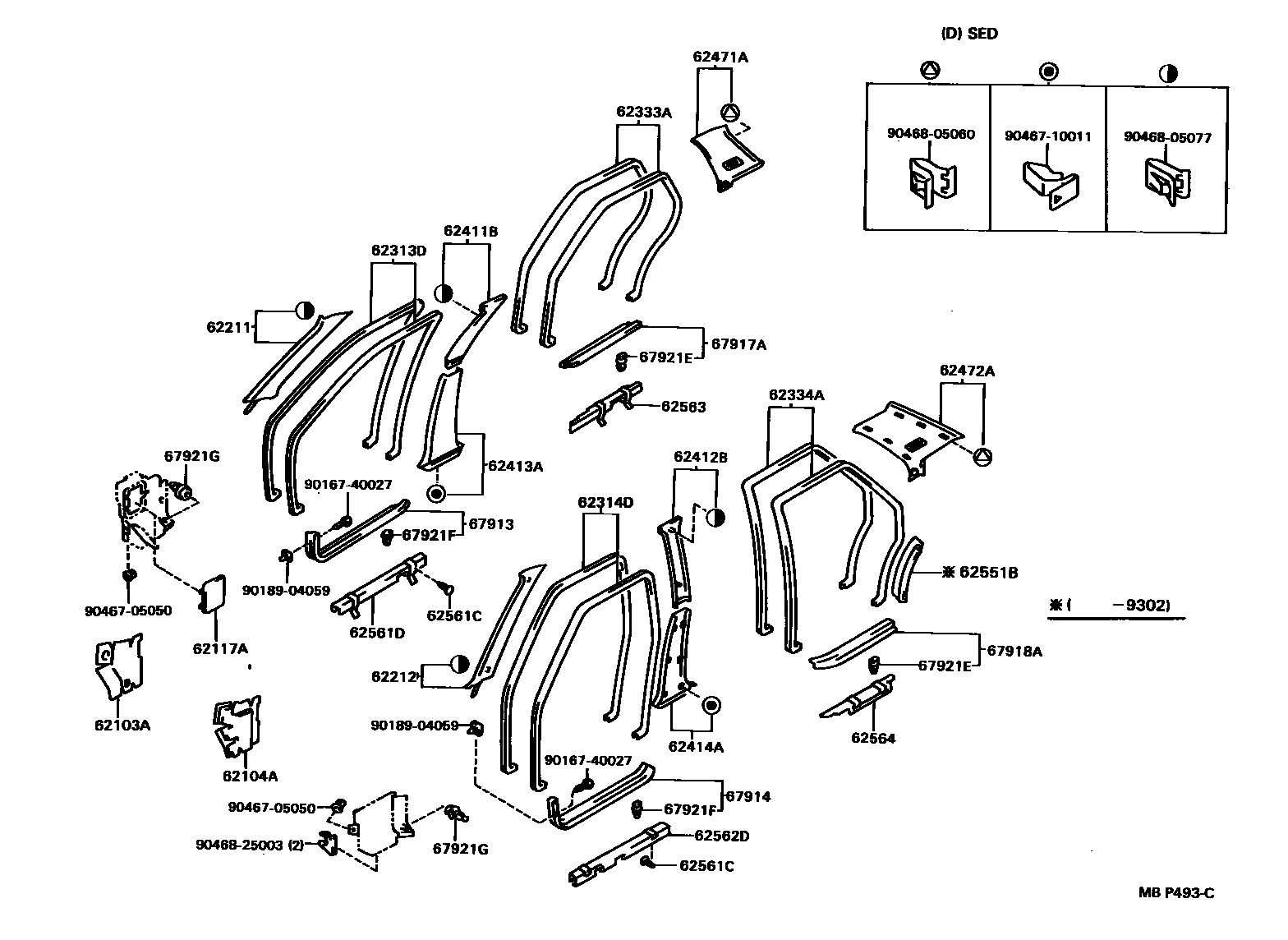

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22070-02iLX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199008

NEW MAROON,TRIM3#

main62117-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main62117-22070-06iGX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG198808-199008

SABLE,TRIM4#

main62117-22090-02iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

NEW MAROON,TRIM3#

main62117-22090-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199512

MEDIUM GRAY,TRIM1#

main62117-22090-06iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG199008-199302

SABLE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-22230-02iLX80,SX80..SED..GR;GX81,LX80,YX80..SED..(GL,LG)..(DSL,HTWC,LPG)198808-199302

NEW MAROON,TRIM3#

sub62211-22240

main62211-22230-03iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

sub62211-22240

main62211-22230-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

DARK BLUE,TRIM8#

sub62211-22240

main62211-22230-06iGX81,LX80,SX80,YX80..SED..(GL,GR,LG)198808-199302

SABLE,TRIM4#

sub62211-22240

main62211-22240-02iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

NEW MAROON,TRIM3#

main62211-22240-02iLX80,YX80..GL..(DSL,LPG)198908-199302

main62211-22240-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

main62211-22240-03iYX80..GL199008-199512

main62211-22240-04iGX81,MX83..SED..(GD,GDG)198808-199008

DARK BLUE,TRIM8#

main62211-22240-04iLX80,YX80..GL..(DSL,LPG)198908-199008

main62211-22240-06iLX80,YX80..GL..(DSL,LPG)198908-199302

main62211-22240-06iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

SABLE,TRIM4#

main62211-22250-02iGX81,LX80,SX80..HT..(GR,LG)198808-199210

NEW MAROON,TRIM3#

sub62211-22260

main62211-22250-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

sub62211-22260

main62211-22250-04iGX81,LX80..HT..(GR,LG)198808-199008

DARK BLUE,TRIM8#

sub62211-22260

main62211-22250-06iGX81,LX80,SX80..HT..(GR,LG)198808-199210

SABLE,TRIM4#

sub62211-22260

main62211-22260-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

NEW MAROON,TRIM3#

sub62211-22260

main62211-22260-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

sub62211-22260

main62211-22260-04iGX81,MX83..HT..(GD,GDG,GT)198808-199008

DARK BLUE,TRIM8#

sub62211-22260

main62211-22260-06iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

SABLE,TRIM4#

sub62211-22260

62212GARNISH, FRONT PILLAR, LH

main62212-22240-02iLX80,SX80..SED..GR;GX81,LX80,YX80..SED..(GL,LG)..(DSL,HTWC,LPG)198808-199302

NEW MAROON,TRIM3#

sub62212-22250

main62212-22240-03iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

sub62212-22250

main62212-22240-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

DARK BLUE,TRIM8#

sub62212-22250

main62212-22240-06iGX81,LX80,SX80,YX80..SED..(GL,GR,LG)198808-199302

SABLE,TRIM4#

sub62212-22250

main62212-22250-02iLX80,YX80..GL..(DSL,LPG)198908-199302

main62212-22250-02iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

NEW MAROON,TRIM3#

main62212-22250-03iYX80..GL199008-199512

main62212-22250-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

main62212-22250-04iLX80,YX80..GL..(DSL,LPG)198908-199008

main62212-22250-04iGX81,MX83..SED..(GD,GDG)198808-199008

DARK BLUE,TRIM8#

main62212-22250-06iLX80,YX80..GL..(DSL,LPG)198908-199302

main62212-22250-06iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

SABLE,TRIM4#

main62212-22260-02iGX81,LX80,SX80..HT..(GR,LG)198808-199210

NEW MAROON,TRIM3#

sub62212-22270

main62212-22260-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

sub62212-22270

main62212-22260-04iGX81,LX80..HT..(GR,LG)198808-199008

DARK BLUE,TRIM8#

sub62212-22270

main62212-22260-06iGX81,LX80,SX80..HT..(GR,LG)198808-199210

SABLE,TRIM4#

sub62212-22270

main62212-22270-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

NEW MAROON,TRIM3#

sub62212-22270

main62212-22270-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

sub62212-22270

main62212-22270-04iGX81,MX83..HT..(GD,GDG,GT)198808-199008

DARK BLUE,TRIM8#

sub62212-22270

main62212-22270-06iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

SABLE,TRIM4#

sub62212-22270

62313DTRIM, FRONT DOOR OPENING, RH

main62313-22140-02iLX80,YX80..GL..(DSL,LPG);GX81,LX80,SX80..SED..(GR,LG)198808-199302

NEW MAROON,TRIM3#

sub62313-22140

main62313-22140-03iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

sub62313-22140

main62313-22140-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

DARK BLUE,TRIM8#

sub62313-22140

main62313-22140-06iGX81,LX80,SX80,YX80..SED..(GL,GR,LG)198808-199302

SABLE,TRIM4#

sub62313-22140

main62313-22150-02iLX80,YX80..GL..(DSL,LPG)198908-199302

sub62313-22150

sub62313-22140

main62313-22150-02iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

NEW MAROON,TRIM3#

sub62313-22150

sub62313-22140

main62313-22150-03iYX80..GL199008-199512

sub62313-22150

sub62313-22140

main62313-22150-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

sub62313-22150

sub62313-22140

main62313-22150-04iLX80,YX80..GL..(DSL,LPG)198908-199008

sub62313-22150

sub62313-22140

main62313-22150-04iGX81,MX83..SED..(GD,GDG)198808-199008

DARK BLUE,TRIM8#

sub62313-22150

sub62313-22140

main62313-22150-06iLX80,YX80..GL..(DSL,LPG)198908-199302

sub62313-22150

sub62313-22140

main62313-22150-06iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

SABLE,TRIM4#

sub62313-22150

sub62313-22140

main62313-22160-02iGX81,LX80,SX80..HT..(GR,LG)198808-199210

NEW MAROON,TRIM3#

main62313-22160-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

main62313-22160-04iGX81,LX80..HT..(GR,LG)198808-199008

DARK BLUE,TRIM8#

main62313-22160-06iGX81,LX80,SX80..HT..(GR,LG)198808-199210

SABLE,TRIM4#

main62313-22170-02iGX81..HT..(GD,GDG,GT)198808-198903

NEW MAROON,TRIM3#

main62313-22170-03iJZX81,MX83..HT..GDG199008-199210

main62313-22170-04iGX81..HT..(GD,GDG,GT)198808-198903

DARK BLUE,TRIM8#

main62313-22170-06iJZX81,MX83..HT..GDG198908-199210

main62313-22170-06iGX81..HT..(GD,GDG,GT)198808-198903

SABLE,TRIM4#

main62313-22180-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)198903-199210

NEW MAROON,TRIM3#

main62313-22180-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

main62313-22180-04iGX81,MX83..HT..(GD,GDG,GT)198903-199008

DARK BLUE,TRIM8#

main62313-22180-06iGX81,JZX81,MX83..HT..(GD,GDG,GT)198903-199210

SABLE,TRIM4#

62314DTRIM, FRONT DOOR OPENING, LH

main62314-22020-02iGX81,LX80,SX80..SED..(GR,LG)198808-199302

NEW MAROON,TRIM3#

sub62314-22020

main62314-22020-03iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

sub62314-22020

main62314-22020-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

DARK BLUE,TRIM8#

sub62314-22020

main62314-22020-06iGX81,LX80,SX80,YX80..SED..(GL,GR,LG)198808-199302

SABLE,TRIM4#

sub62314-22020

main62314-22030-02iLX80,YX80..GL..(DSL,LPG)198908-199302

sub62314-22030

sub62314-22020

main62314-22030-02iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

NEW MAROON,TRIM3#

sub62314-22030

sub62314-22020

main62314-22030-03iYX80..GL199008-199512

sub62314-22030

sub62314-22020

main62314-22030-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

sub62314-22030

sub62314-22020

main62314-22030-04iGX81,MX83..SED..(GD,GDG)198808-199008

DARK BLUE,TRIM8#

sub62314-22030

sub62314-22020

main62314-22030-04iLX80,YX80..GL..(DSL,LPG)198908-199008

sub62314-22030

sub62314-22020

main62314-22030-06iLX80,YX80..GL..(DSL,LPG)198908-199302

sub62314-22030

sub62314-22020

main62314-22030-06iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

SABLE,TRIM4#

sub62314-22030

sub62314-22020

main62314-22040-02iGX81,LX80,SX80..HT..(GR,LG)198808-199210

NEW MAROON,TRIM3#

main62314-22040-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

main62314-22040-04iGX81,LX80..HT..(GR,LG)198808-199008

DARK BLUE,TRIM8#

main62314-22040-06iGX81,LX80,SX80..HT..(GR,LG)198808-199210

SABLE,TRIM4#

main62314-22050-02iGX81..HT..(GD,GDG,GT)198808-198903

NEW MAROON,TRIM3#

main62314-22050-03iJZX81,MX83..HT..GDG199008-199210

main62314-22050-04iGX81..HT..(GD,GDG,GT)198808-198903

DARK BLUE,TRIM8#

main62314-22050-06iMX83..HT198908-199210

main62314-22050-06iGX81..HT..(GD,GDG,GT)198808-198903

SABLE,TRIM4#

main62314-22060-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)198903-199210

NEW MAROON,TRIM3#

main62314-22060-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

main62314-22060-04iGX81,MX83..HT..(GD,GDG,GT)198903-199008

DARK BLUE,TRIM8#

main62314-22060-06iGX81,JZX81,MX83..HT..(GD,GDG,GT)198903-199210

SABLE,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-22090-02iGX81,LX80,SX80..SED..(GR,LG)198808-199302

NEW MAROON,TRIM3#

sub62333-22090

main62333-22090-03iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

sub62333-22090

main62333-22090-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

DARK BLUE,TRIM8#

sub62333-22090

main62333-22090-06iGX81,LX80,SX80,YX80..SED..(GL,GR,LG)198808-199302

SABLE,TRIM4#

sub62333-22090

main62333-22100-02iLX80,YX80..GL..(DSL,LPG)198908-199302

sub62333-22100

sub62333-22090

main62333-22100-02iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

NEW MAROON,TRIM3#

sub62333-22100

sub62333-22090

main62333-22100-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

sub62333-22100

sub62333-22090

main62333-22100-03iYX80..GL199008-199512

sub62333-22100

sub62333-22090

main62333-22100-04iGX81,MX83..SED..(GD,GDG)198808-199008

DARK BLUE,TRIM8#

sub62333-22100

sub62333-22090

main62333-22100-04iLX80,YX80..GL..(DSL,LPG)198908-199008

sub62333-22100

sub62333-22090

main62333-22100-06iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

SABLE,TRIM4#

sub62333-22100

sub62333-22090

main62333-22100-06iLX80,YX80..GL..(DSL,LPG)198908-199302

sub62333-22100

sub62333-22090

main62333-22110-02iGX81,LX80,SX80..HT..(GR,LG)198808-199210

NEW MAROON,TRIM3#

main62333-22110-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

main62333-22110-04iGX81,LX80..HT..(GR,LG)198808-199008

DARK BLUE,TRIM8#

main62333-22110-06iGX81,LX80,SX80..HT..(GR,LG)198808-199210

SABLE,TRIM4#

main62333-22120-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

NEW MAROON,TRIM3#

main62333-22120-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

main62333-22120-04iGX81,MX83..HT..(GD,GDG,GT)198808-199008

DARK BLUE,TRIM8#

main62333-22120-06iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

SABLE,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62334-22010-02iLX80,YX80..GL..(DSL,LPG);GX81,LX80,SX80..SED..(GR,LG)198808-199302

NEW MAROON,TRIM3#

sub62334-22010

main62334-22010-03iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

sub62334-22010

main62334-22010-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

DARK BLUE,TRIM8#

sub62334-22010

main62334-22010-06iGX81,LX80,SX80,YX80..SED..(GL,GR,LG)198808-199302

SABLE,TRIM4#

sub62334-22010

main62334-22020-02iLX80,YX80..GL..(DSL,LPG)198908-199302

sub62334-22020

sub62334-22010

main62334-22020-02iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

NEW MAROON,TRIM3#

sub62334-22020

sub62334-22010

main62334-22020-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

sub62334-22020

sub62334-22010

main62334-22020-03iYX80..GL199008-199512

sub62334-22020

sub62334-22010

main62334-22020-04iLX80,YX80..GL..(DSL,LPG)198908-199008

sub62334-22020

sub62334-22010

main62334-22020-04iGX81,MX83..SED..(GD,GDG)198808-199008

DARK BLUE,TRIM8#

sub62334-22020

sub62334-22010

main62334-22020-06iLX80,YX80..GL..(DSL,LPG)198908-199302

sub62334-22020

sub62334-22010

main62334-22020-06iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

SABLE,TRIM4#

sub62334-22020

sub62334-22010

main62334-22030-02iGX81,LX80,SX80..HT..(GR,LG)198808-199210

NEW MAROON,TRIM3#

main62334-22030-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

main62334-22030-04iGX81,LX80..HT..(GR,LG)198808-199008

DARK BLUE,TRIM8#

main62334-22030-06iGX81,LX80,SX80..HT..(GR,LG)198808-199210

SABLE,TRIM4#

main62334-22040-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

NEW MAROON,TRIM3#

main62334-22040-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

main62334-22040-04iGX81,MX83..HT..(GD,GDG,GT)198808-199008

DARK BLUE,TRIM8#

main62334-22040-06iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

SABLE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-22250-02iLX80,SX80..SED..GR;GX81,LX80,YX80..SED..(GL,LG)..(DSL,HTWC,LPG)198808-199302

NEW MAROON,TRIM3#

sub62411-22260

main62411-22250-03iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

sub62411-22260

main62411-22250-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

DARK BLUE,TRIM8#

sub62411-22260

main62411-22250-06iGX81,LX80,SX80,YX80..SED..(GL,GR,LG)198808-199302

SABLE,TRIM4#

sub62411-22260

main62411-22260-02iLX80,YX80..GL..(DSL,LPG)198908-199302

main62411-22260-02iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

NEW MAROON,TRIM3#

main62411-22260-03iYX80..GL199008-199512

main62411-22260-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

main62411-22260-04iGX81,MX83..SED..(GD,GDG)198808-199008

DARK BLUE,TRIM8#

main62411-22260-04iLX80,YX80..GL..(DSL,LPG)198908-199008

main62411-22260-06iLX80,YX80..GL..(DSL,LPG)198908-199302

main62411-22260-06iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

SABLE,TRIM4#

main62411-22270-02iGX81,LX80,SX80..HT..(GR,LG)198808-199210

NEW MAROON,TRIM3#

sub62411-22280

main62411-22270-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

sub62411-22280

main62411-22270-04iGX81,LX80..HT..(GR,LG)198808-199008

DARK BLUE,TRIM8#

sub62411-22280

main62411-22270-06iGX81,LX80,SX80..HT..(GR,LG)198808-199210

SABLE,TRIM4#

sub62411-22280

main62411-22280-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

NEW MAROON,TRIM3#

main62411-22280-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

main62411-22280-04iGX81,MX83..HT..(GD,GDG,GT)198808-199008

DARK BLUE,TRIM8#

main62411-22280-06iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

SABLE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-22270-02iGX81,LX80,SX80..SED..(GR,LG)198808-199302

NEW MAROON,TRIM3#

sub62412-22280

main62412-22270-03iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

sub62412-22280

main62412-22270-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

DARK BLUE,TRIM8#

sub62412-22280

main62412-22270-06iGX81,LX80,SX80,YX80..SED..(GL,GR,LG)198808-199302

SABLE,TRIM4#

sub62412-22280

main62412-22280-02iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

NEW MAROON,TRIM3#

main62412-22280-02iLX80,YX80..GL..(DSL,LPG)198908-199302

main62412-22280-03iLX80,YX80..GL..(DSL,LPG)199008-199512

main62412-22280-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

main62412-22280-04iLX80,YX80..GL..(DSL,LPG)198908-199008

main62412-22280-04iGX81,MX83..SED..(GD,GDG)198808-199008

DARK BLUE,TRIM8#

main62412-22280-06iLX80,YX80..GL..(DSL,LPG)198908-199302

main62412-22280-06iGX81,JZX81,MX83..SED..(GD,GDG)198808-199302

SABLE,TRIM4#

main62412-22290-02iGX81,LX80,SX80..HT..(GR,LG)198808-199210

NEW MAROON,TRIM3#

main62412-22290-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

main62412-22290-04iGX81,LX80..HT..(GR,LG)198808-199008

DARK BLUE,TRIM8#

main62412-22290-06iGX81,LX80,SX80..HT..(GR,LG)198808-199210

SABLE,TRIM4#

main62412-22300-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

NEW MAROON,TRIM3#

main62412-22300-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

main62412-22300-04iGX81,MX83..HT..(GD,GDG,GT)198808-199008

DARK BLUE,TRIM8#

main62412-22300-06iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

SABLE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-22070-02iLX80,SX80..SED..GR;GX81,JZX81,LX80,MX83,YX80..SED..(GD,GDG,GL,LG)..(DSL,HTWC,LPG,SPC,TWC)198808-199302

NEW MAROON,TRIM3#

main62413-22070-03iGX81,LX80,SX80,YX80199008-199512

MEDIUM GRAY,TRIM1#

main62413-22070-04iGX81,LX80,MX83,SX80,YX80..SED198808-199008

DARK BLUE,TRIM8#

main62413-22070-06iGX81,JZX81,LX80,MX83,SX80,YX80..SED..(GD,GDG,GL,GR,LG)198808-199302

SABLE,TRIM4#

main62413-22080-02iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

NEW MAROON,TRIM3#

main62413-22080-03iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

MEDIUM GRAY,TRIM1#

main62413-22080-04iGX81,LX80,MX83..HT198808-199008

DARK BLUE,TRIM8#

main62413-22080-06iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

SABLE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-22070-02iLX80,SX80..SED..GR;GX81,JZX81,LX80,MX83,YX80..SED..(GD,GDG,GL,LG)..(DSL,HTWC,LPG,SPC,TWC)198808-199302

NEW MAROON,TRIM3#

main62414-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80..SED199008-199512

MEDIUM GRAY,TRIM1#

main62414-22070-04iGX81,LX80,MX83,SX80,YX80..SED198808-199008

DARK BLUE,TRIM8#

main62414-22070-06iGX81,JZX81,LX80,MX83,SX80,YX80..SED..(GD,GDG,GL,GR,LG)198808-199302

SABLE,TRIM4#

main62414-22080-02iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

NEW MAROON,TRIM3#

main62414-22080-03iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

MEDIUM GRAY,TRIM1#

main62414-22080-04iGX81,LX80,MX83..HT198808-199008

DARK BLUE,TRIM8#

main62414-22080-06iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

SABLE,TRIM4#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-22150-02iYX80..GL199008-199302

NEW MAROON,TRIM3#

main62471-22150-02iYX80..GL199008-199302

main62471-22150-03iYX80;LX80,SX80..KYO199008-199302

main62471-22150-03iYX80;LX80,SX80..KYO199008-199305

MEDIUM GRAY,TRIM1#

main62471-22150-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

LIGHT BLUE,TRIM8#

main62471-22150-06iLX80..GL..DSL199008-199302

main62471-22150-06iGX81,LX80,SX80..SED..(GR,LG)198808-199008

LIGHT SABLE,TRIM3#,4#

main62471-22150-06iGX81,LX80,SX80..SED..(GR,LG)198808-199302

LIGHT SABLE,TRIM4#

main62471-22160-02iLX80,SX80..SED..GR;GX81,LX80..SED..(GL,LG)..(DSL,HTWC)199008-199302

NEW MAROON,TRIM3#

main62471-22160-03iLX80,SX80,YX80199008-199512

MEDIUM GRAY,TRIM1#

main62471-22160-06iGX81,LX80,SX80..SED..(GL,GR,LG)199008-199302

LIGHT SABLE,TRIM4#

main62471-22180-02iGX81,JZX81,MX83..SED..(GD,GDG)199008-199302

NEW MAROON,TRIM3#

main62471-22180-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

main62471-22180-03iYX80..GL199302-199512

main62471-22180-04iGX81,MX83..SED..(GD,GDG)198808-199008

LIGHT BLUE,TRIM8#

main62471-22180-06iGX81,MX83..SED..(GD,GDG)198808-199008

LIGHT SABLE,TRIM3#,4#

main62471-22180-16iGX81,JZX81,MX83..SED..(GD,GDG)199008-199302

SABLE,TRIM4#

main62471-22190-04iGX81,LX80..HT..(GR,LG)198808-199008

LIGHT BLUE,TRIM8#

sub62471-22230

main62471-22190-06iGX81,LX80..HT..(GR,LG)198808-199008

LIGHT SABLE,TRIM3#,4#

sub62471-22230

main62471-22210-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

NEW MAROON,TRIM3#

main62471-22210-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

main62471-22210-04iGX81,MX83..HT..(GD,GDG,GT)198808-199008

LIGHT BLUE,TRIM8#

main62471-22210-06iGX81,MX83..HT..(GD,GDG,GT)198808-199008

LIGHT SABLE,TRIM3#,4#

main62471-22210-16iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

SABLE,TRIM4#

main62471-22220-02iLX80,YX80..GL..(DSL,LPG)199008-199302

main62471-22220-03iLX80,YX80..GL..(DSL,LPG)199008-199302

main62471-22220-04iLX80,YX80..GL..(DSL,LPG)198908-199008

main62471-22220-06iLX80,YX80..GL..(DSL,LPG)198908-199008

main62471-22220-16iLX80,YX80..GL..(DSL,LPG)199008-199302

main62471-22230-02iGX81,LX80,SX80..HT..(GR,LG)199008-199210

NEW MAROON,TRIM3#

main62471-22230-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

main62471-22230-06iGX81,LX80,SX80..HT..(GR,LG)199008-199210

LIGHT SABLE,TRIM4#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-22140-02iLX80..GL..DSL199008-199302

main62472-22140-02iLX80..GL..DSL199008-199302

NEW MAROON,TRIM3#

main62472-22140-03iLX80..GL..DSL199008-199305

MEDIUM GRAY,TRIM1#

main62472-22140-03iYX80;LX80,SX80..KYO199008-199302

main62472-22140-04iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)198808-199008

LIGHT BLUE,TRIM8#

main62472-22140-06iLX80,SX80,YX80..GL198808-199008

LIGHT SABLE,TRIM3#,4#

main62472-22140-06iGX81,LX80,SX80..SED..(GR,LG)198808-199302

LIGHT SABLE,TRIM4#

main62472-22140-06iYX80..GL199008-199302

main62472-22150-02iLX80,SX80..SED..GR;GX81,LX80..SED..(GL,LG)..(DSL,HTWC)199008-199302

NEW MAROON,TRIM3#

main62472-22150-03iGX81,LX80,SX80..SED..(GL,GR,LG,STD)199008-199512

MEDIUM GRAY,TRIM1#

main62472-22150-06iGX81,LX80,SX80..SED..(GL,GR,LG)199008-199302

LIGHT SABLE,TRIM4#

main62472-22170-02iGX81,JZX81,MX83..SED..(GD,GDG)199008-199302

NEW MAROON,TRIM3#

main62472-22170-03iGX81,JZX81,MX83..SED..(GD,GDG)199008-199512

MEDIUM GRAY,TRIM1#

main62472-22170-03iYX80..GL199302-199512

main62472-22170-04iGX81,MX83..SED..(GD,GDG)198808-199008

LIGHT BLUE,TRIM8#

main62472-22170-06iGX81,MX83..SED..(GD,GDG)198808-199008

LIGHT SABLE,TRIM3#,4#

main62472-22170-16iGX81,JZX81,MX83..SED..(GD,GDG)199008-199302

SABLE,TRIM4#

main62472-22180-04iGX81,LX80..HT..(GR,LG)198808-199008

LIGHT BLUE,TRIM8#

sub62472-22220

main62472-22180-06iGX81,LX80..HT..(GR,LG)198808-199008

LIGHT SABLE,TRIM3#,4#

sub62472-22220

main62472-22200-02iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

NEW MAROON,TRIM3#

main62472-22200-03iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

MEDIUM GRAY,TRIM1#

main62472-22200-04iGX81,MX83..HT..(GD,GDG,GT)198808-199008

LIGHT BLUE,TRIM8#

main62472-22200-06iGX81,MX83..HT..(GD,GDG,GT)198808-199008

LIGHT SABLE,TRIM3#,4#

main62472-22200-16iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

SABLE,TRIM4#

main62472-22210-02iLX80,YX80..GL..(DSL,LPG)199008-199302

main62472-22210-03iLX80,YX80..GL..(DSL,LPG)199008-199302

main62472-22210-04iLX80,YX80..GL..(DSL,LPG)198908-199008

main62472-22210-06iLX80,YX80..GL..(DSL,LPG)198908-199008

main62472-22210-16iLX80,YX80..GL..(DSL,LPG)199008-199302

main62472-22220-02iGX81,LX80,SX80..HT..(GR,LG)199008-199210

NEW MAROON,TRIM3#

main62472-22220-03iGX81,LX80,SX80..HT..(GR,LG)199008-199210

MEDIUM GRAY,TRIM1#

main62472-22220-06iGX81,LX80,SX80..HT..(GR,LG)199008-199210

LIGHT SABLE,TRIM4#

62551BGARNISH, REAR SEAT SIDE

main62551-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199302

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-01iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

BLACK,TRIM1#,3#,4#

sub90467-08056

main90467-08056-01iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199504

BLACK,TRIM1#

sub90467-08056

main90467-08056-01iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

BLACK,TRIM1#,4#

sub90467-08056

main90467-08056-01iGX81,LX80,SX80..GD,GDG,GR,GT,LG198808-199008

BLACK,TRIM3#,4#,8#

sub90467-08056

main90467-08056-01iGX81,LX80,SX80..GD,GDG,GR,GT,LG198808-199008

BLACK,TRIM4#,8#

sub90467-08056

main90467-08056-01iLX80,SX80,YX80..KYO,STD198808-199008

BLACK,TRIM8#

sub90467-08056

main90467-08056-C0iGX81,SX80,YX80199504-199512

BLACK,TRIM1#

sub90467-08056

62561DPROTECTOR, ROCKER PANEL, INNER FRONT RH

main62561-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

62562DPROTECTOR, ROCKER PANEL, INNER FRONT LH

main62562-22050iGX81,JZX81,MX83,SX80..GD,GDG,GL,GR,GT,LG198808-199512

main62562-22070iLX80,YX80;SX80..KYO,STD198810-199512

62563PROTECTOR, ROCKER PANEL, INNER REAR RH

main62563-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

62564PROTECTOR, ROCKER PANEL, INNER REAR LH

main62564-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

67913PLATE, FRONT DOOR SCUFF, RH

main67913-22070-02iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199302

NEW MAROON,TRIM3#

sub67913-22070

main67913-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199512

MEDIUM GRAY,TRIM1#

sub67913-22070

main67913-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67913-22070

main67913-22070-06iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG198808-199302

SABLE,TRIM4#

sub67913-22070

67914PLATE, FRONT DOOR SCUFF, LH

main67914-22050-02iGX81,LX80,SX80..GD,GDG,GR,GT,LG198808-199302

NEW MAROON,TRIM3#

sub67914-22050

main67914-22050-03iGX81,JZX81,MX83,SX80..GD,GDG,GL,GR,GT,LG199008-199512

MEDIUM GRAY,TRIM1#

sub67914-22050

main67914-22050-04iGX81,LX80,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67914-22050

main67914-22050-06iGX81,JZX81,MX83,SX80..GD,GDG,GL,GR,GT,LG198808-199302

SABLE,TRIM4#

sub67914-22050

main67914-22070-02iLX80..GR198810-199302

NEW MAROON,TRIM3#

sub67914-22070

main67914-22070-03iLX80,YX80;SX80..KYO,STD199008-199512

MEDIUM GRAY,TRIM1#

sub67914-22070

main67914-22070-04iLX80,YX80;SX80..KYO,STD198810-199008

DARK BLUE,TRIM8#

sub67914-22070

main67914-22070-06iLX80,YX80..GL,GR198810-199302

SABLE,TRIM4#

sub67914-22070

67917APLATE, REAR DOOR SCUFF, RH

main67917-22070-02iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199302

NEW MAROON,TRIM3#

sub67917-22070

main67917-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199512

MEDIUM GRAY,TRIM1#

sub67917-22070

main67917-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67917-22070

main67917-22070-06iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG198808-199302

SABLE,TRIM4#

sub67917-22070

67918APLATE, REAR DOOR SCUFF, LH

main67918-22070-02iGX81,LX80,SX80..GD,GDG,GR,GT,LG198808-199302

NEW MAROON,TRIM3#

sub67918-22070

main67918-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199512

MEDIUM GRAY,TRIM1#

sub67918-22070

main67918-22070-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub67918-22070

main67918-22070-06iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG198808-199302

SABLE,TRIM4#

sub67918-22070

67921ERETAINER, REAR DOOR SCUFF PLATE

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

67921FRETAINER, FRONT DOOR SCUFF PLATE

main67921-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

FRONT

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

REAR

67921GRETAINER, FRONT DOOR SCUFF PLATE

main67921-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

9016740027

main90167-40027

9018904059

main90189-04059

9046705050

main90467-05050

9046710011

main90467-10011

9046805060

main90468-05060

9046805077

main90468-05077

9046825003

main90468-25003

35 parts on this diagram · 2 diagrams in section
