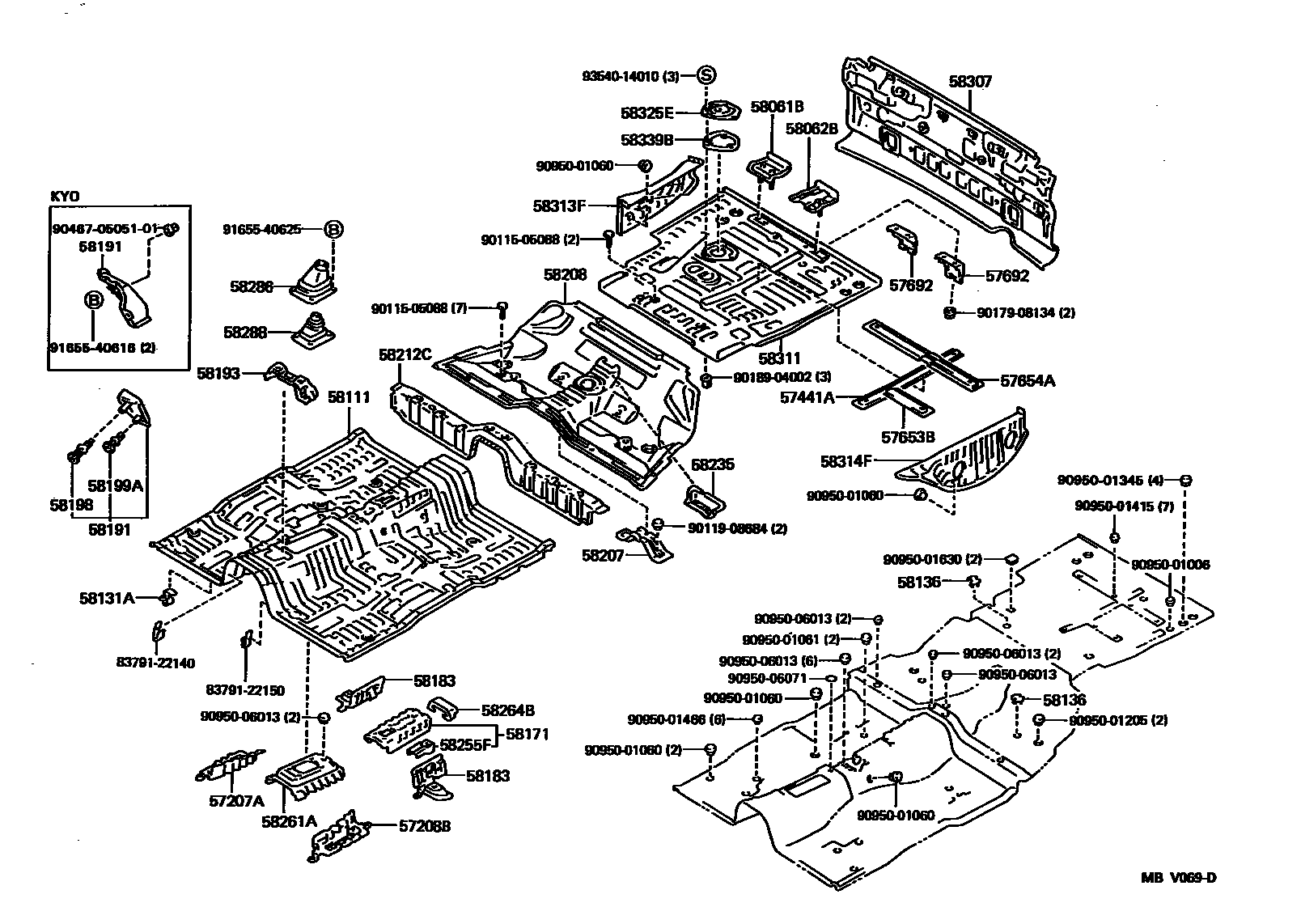

FLOOR PAN & LOWER BACK PANEL

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-22030iGX81,JZX81,LX80,MX83,SX80,YX80¥2,640198808-199512

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-22040iGX81,JZX81,LX80,MX83,SX80,YX80¥2,200198808-199512

57441AMEMBER, REAR FLOOR CENTER, NO.1

main57441-22020iGX81,JZX81,LX80,MX83,SX80,YX80¥2,140198808-199512

57653BMEMBER, REAR FLOOR CROSS, FRONT LH

main57653-22080iGX81,JZX81,LX80,MX83,SX80,YX80¥2,370198808-199512

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57654-22040iGX81,JZX81,LX80,MX83,SX80,YX80¥2,340198808-199512

57692BRACKET, FUEL TANK MOUNTING, REAR CENTER

main57692-22020iGX81,JZX81,LX80,MX83,SX80¥2,240198808

58061BBRACKET SUB-ASSY, FUEL TANK MOUNTING, RH

main58061-22010iGX81,JZX81,LX80,MX83,SX80¥1,680198808-199512

58062BBRACKET SUB-ASSY, FUEL TANK MOUNTING, LH

main58062-22020iGX81,JZX81,LX80,MX83,SX80¥1,870198808-199512

58111PAN, FRONT FLOOR

main58111-22150iYX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO¥48,300198808-199512

sub58111-43020¥51,900

main58111-22160iGX81,JZX81,LX80,MX83,SX80..4FC..(GD,GDG,GL,GR,GT,LG)¥48,300198808-199512

sub58111-43010¥51,900

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-22040iSX80..4FC..KYO;GX81,JZX81,LX80,MX83,YX80¥520198808-199512

58136COVER, FRONT FLOOR HOLE

main58136-24010iYX80¥390198808-199512

sub90950-06002¥60

58171REINFORCEMENT, PARKING BRAKE BASE

main58029-22040iYX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO¥9,500198808-199512

main58029-22050iGX81,JZX81,LX80,MX83,SX80..4FC..(GD,GDG,GL,GR,GT,LG)¥9,800198808-199512

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-22030iGX81,JZX81,LX80,MX83,SX80,YX80¥3,820198808-199512

main58184-22030iGX81,JZX81,LX80,MX83,SX80,YX80¥3,480198808-199512

58191FOOTREST, FRONT FLOOR

main58191-22030iGX81,LX80,SX80,YX80..5F..(GD,GL,GR,GT,LG)¥1,740198808-199512

main58191-22040iGX81,JZX81,LX80,MX83,SX80,YX80..ATM..(GD,GDG,GL,GR,GT,LG)¥3,600198808-199512

main58192-22040iLX80,SX80,YX80..KYO¥1,630198808-199512

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-22050iGX81,JZX81,LX80,MX83,SX80,YX80¥1,850198808-199512

58198CLIP, FOOTREST

main58198-22020iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG¥250198808-199512

58199ACLIP, FOOTREST, NO.2

main58199-22020iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG¥180198808-199512

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-22050iGX81,JZX81,LX80,MX83,SX80,YX80¥1,900198808-199512

58208PAN, CENTER FLOOR

main58211-22050iGX81,JZX81,LX80,MX83,SX80,YX80¥27,800198808-199512

58212CPAN, CENTER FLOOR, FRONT

main58212-22060iGX81,JZX81,LX80,MX83,SX80,YX80¥18,700198808-199512

58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING

main58235-22030iLX80,SX80,YX80¥2,160198808-198903

sub58235-22031¥2,210

main58235-22031iLX80,SX80,YX80¥2,210198903-199512

58255FCLAMP, PARKING BRAKE WIRE TUBE, NO.1 RH

main58255-22030iGX81,JZX81,LX80,MX83,SX80..4FC..(GD,GDG,GL,GR,GT,LG)¥1,030198808-199512

58261ACOVER, TRANSMISSION

main58261-22210iGX81..5F¥3,610198808-199302

main58261-22220iGX81,JZX81,LX80,MX83,SX80,YX80..ATM¥3,620198808-199512

main58261-22240iLX80..5F¥3,620198808-199308

main58261-22250iSX80,YX80..5F¥3,610198808-199512

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-22040iGX81,JZX81,LX80,MX83,SX80,YX80¥1,130198808-199512

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-22070iGX81..5F;LX80..HT..5F¥4,360198808-199005

sub58280-22071¥3,440

main58280-22071iGX81..5F;LX80..HT..5F¥3,440199005-199302

main58280-22080iLX80,SX80,YX80..SED..5F¥4,320198808-199512

58288SEAL, SHIFT LEVER BOOT

main58288-22030iGX81..5F;LX80..HT..5F¥1,670198808-199005

sub58288-22031¥1,600

main58288-22031iGX81..5F¥1,600199005-199302

main58288-22040iLX80,SX80,YX80..SED..5F¥1,350198808-199512

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-22490iGX81,LX80,MX83,SX80,YX80..SED¥20,800198808-199512

main58307-22490iYX80;LX80,SX80..KYO,STD¥20,800199008-199302

main58307-22520iGX81,MX83..SED..(GD,GDG)¥21,000198808-199008

main58307-22521iGX81,JZX81,MX83..SED..(GD,GDG)¥19,800199008-199304

sub58307-22550¥19,700

main58307-22530iGX81,MX83..HT..(GD,GDG,GT)¥21,000198808-199008

main58307-22531iGX81,JZX81,MX83..HT..(GD,GDG,GT)¥20,800199008-199210

main58307-22540iGX81,LX80,MX83..HT¥21,000198808-199008

main58307-22541iGX81,JZX81,LX80,MX83,SX80..HT¥20,800199008-199210

main58307-22550iGX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG)¥19,700199008-199512

58311PAN, REAR FLOOR

main58311-22120iGX81,LX80,MX83,SX80¥28,000198808-199008

sub58311-22121¥27,700

sub90950-06060¥110

main58311-22121iGX81,JZX81,LX80,MX83,SX80¥27,700199008-199512

main58311-22130iYX80¥28,000198808-199008

sub58311-22131¥27,700

sub90950-06060¥110

main58311-22131iYX80¥27,700199008-199512

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-22040iGX81,JZX81,LX80,MX83,SX80,YX80¥3,870198808-199512

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-22100iGX81,JZX81,LX80,MX83,SX80,YX80¥3,720198808-199512

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-22040iGX81,JZX81,LX80,MX83,SX80¥800198808-199512

58339BPACKING, REAR FLOOR SERVICE HOLE

main58339-22030iGX81,JZX81,LX80,MX83,SX80¥410198808-199512

8379122140

main83791-22140¥320

8379122150

main83791-22150¥320

9011505088

main90115-05088¥120

9011908684

main90119-08684¥120

9017908134

main90179-08134¥90

9018904002

main90189-04002¥100

904670505101

main90467-0505101

9095001006

main90950-01006¥260

9095001060

main90950-01060¥200

9095001061

main90950-01061¥240

9095001205

main90950-01205¥240

9095001345

main90950-01345¥400

9095001415

main90950-01415¥220

9095001466

main90950-01466¥180

9095001630

main90950-01630¥240

9095006013

main90950-06013¥120

9095006071

main90950-06071¥180

9165540616

main91655-40616¥120

9165540625

main91655-40625¥100

9354014010

main93540-14010¥100

52 parts on this diagram · 1 diagram in section
