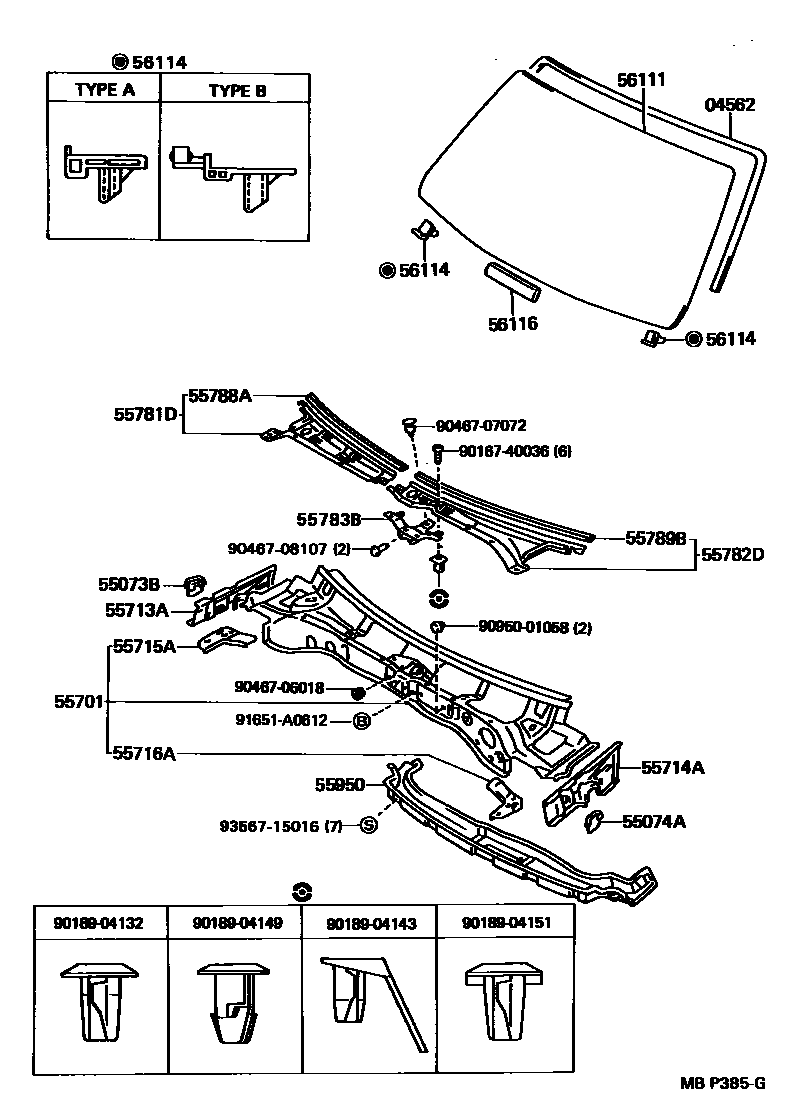

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55073BSEAL SUB-ASSY, COWL WATER EXTRACT, NO.1

main55073-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55074ASEAL SUB-ASSY, COWL WATER EXTRACT, NO.2

main55074-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55701PANEL SUB-ASSY, COWL

main55700-22810iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55713APANEL, COWL TOP SIDE, RH

main55713-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55714APANEL, COWL TOP SIDE, LH

main55714-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55715ABRACE, COWL TOP TO APRON, RH

main55715-22080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55716ABRACE, COWL TOP TO APRON, LH

main55716-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-22160iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

main55781-22170iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

main55781-22200iGX81,SX80;LX80..GL..TD;LX80,YX80..GR,KYO198808-199308

main55781-22200iYX80..(4FC,5F)..GL199008-199512

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

main55782-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

main55782-22100iGX81,SX80;LX80..GL..TD;LX80,YX80..GR,KYO198808-199308

main55782-22100iYX80..(4FC,5F)..GL199008-199512

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-22090iGX81,JZX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC198808-199512

main55783-22100iGX81,JZX81..TWT198808-199210

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2

main55789-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

55950NOZZLE ASSY, DEFROSTER

main55951-22110iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

56111GLASS, WINDSHIELD

main56111-22540iLX80,SX80,YX80..GL,KYO,STD198808-199512

main56111-22550iLX80,YX80..GL..(DSL,LPG)198908-199512

main56111-22550iGX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG)198808-199512

main56111-22580iGX81,LX80,SX80..SED..(GD,GDG,GR,LG)198808-199302

sub56111-22650

main56111-22620iGX81,SX80..GD,GL,GR199008-199512

main56111-22630iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

main56111-22640iGX81,LX80,MX83..HT198808-199210

sub56111-22690

main56111-22650iGX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG)199008-199302

main56111-22660iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

sub56111-22720

main56111-22690iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

56114RETAINER, WINDSHIELD GLASS

main56114-22010iLX80,SX80..GL199008-199512

main56114-22010iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199512

TYPE A,YELLOW

main56114-22020iLX80,SX80..GL198808-199512

TYPE A,WHITE

main56114-22030iLX80,SX80..GL198808-199512

TYPE A,GREEN

main56114-22070iLX80,SX80..GL199008-199512

main56114-22070iLX80,SX80..GL199008-199302

TYPE B,YELLOW

main56114-22080iLX80,SX80..GL199008-199512

TYPE B,WHITE

main56114-22090iLX80,SX80..GL199008-199512

TYPE B,GREEN

56116SPACER, WINDSHIELD GLASS

main56116-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199201

sub56116-22041

main56116-22041iGX81,JZX81,LX80,MX83,SX80,YX80199201-199512

9016740036

main90167-40036

9018904132

main90189-04132

9018904143

main90189-04143

9018904149

main90189-04149

9018904151

main90189-04151

9046706018

main90467-06018

9046707072

main90467-07072

9046708107

main90467-08107

9095001058

main90950-01058

91651A0612

main91651-A0612

9356715016

main93567-15016

28 parts on this diagram · 1 diagram in section
