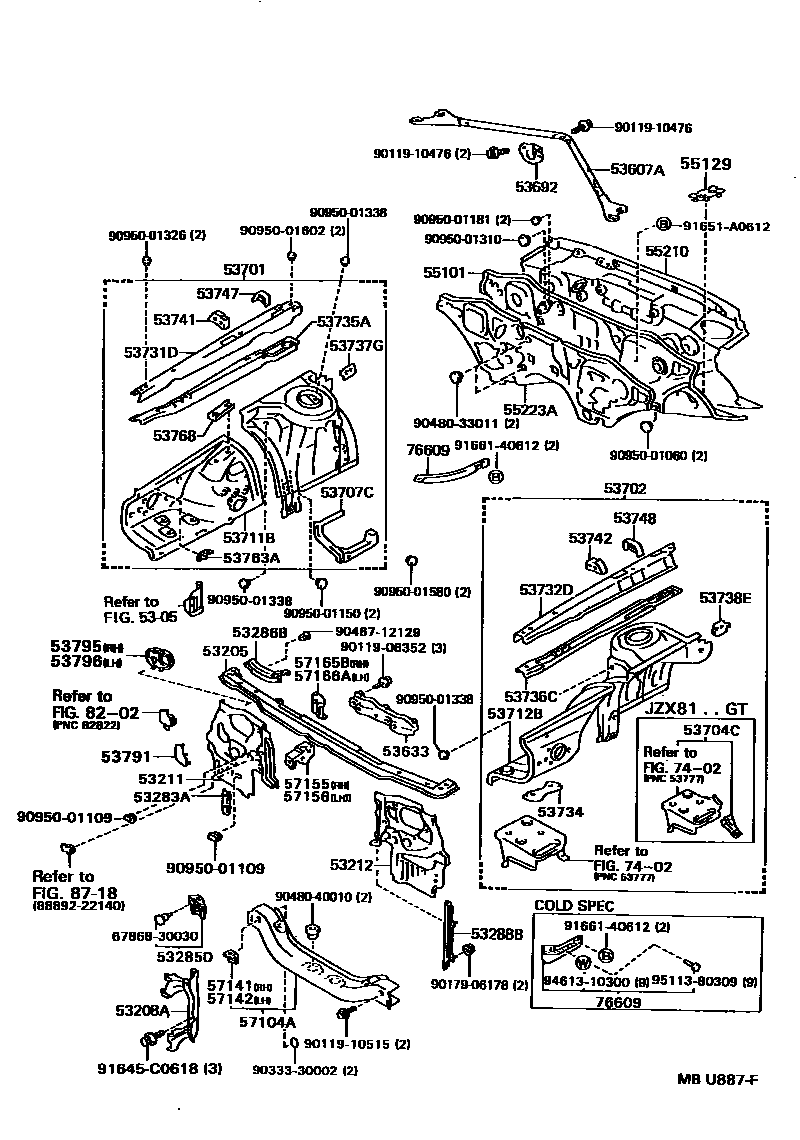

FRONT FENDER APRON & DASH PANEL

5305

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-22110iJZX81..TWC;GX81,LX80,MX83,SX80,YX80198808-199512

main53205-22130iJZX81..TWT199008-199210

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-22090iLX80,YX80;SX80..KYO199302-199308

main53208-22100iLX80;YX80..4FC..KYO199302-199512

main53208-22130iYX80;SX80..KYO199308-199512

main53208-22200iJZX81..TWT199008-199210

53211SUPPORT, RADIATOR, RH

main53211-22240iJZX81..TWT199008-199210

main53211-22320iJZX81..TWC;GX81,LX80,MX83,SX80,YX80198808-199512

53212SUPPORT, RADIATOR, LH

main53212-22210iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER

main53283-22010iJZX81..TWT199008-199210

53285DCOVER, FRONT BUMPER ARM HOLE

main53285-22030×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53395-22010iJZX81,MX83..HT199008-199210

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-22020iSX80;YX80..(3FC,5F)..KYO199302-199512

53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER

main53607-22010iGX81,JZX81..TWT198808-199210

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53692BRACKET, FRONT SUSPENSION UPPER BRACE

main53692-22010iGX81,JZX81..TWT198808-199210

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22550iGX81..SPC198908-199008

main53701-22560iJZX81..GD;GX81..GD,GDG,GT198908-199512

W(*66)

main53701-22650iLX80,YX80198808-199512

main53701-22660iJZX81..GDG,GT;GX81,MX83..GDG198908-199302

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22500iLX80..GL..DSL199008-199302

main53702-22540iJZX81..TWT199008-199210

main53702-22610iGX81,MX83,SX80,YX80;JZX81,LX80..(GD,GDG,GL)..(DSL,TWC)198808-199302

53704CSUPPORT SUB-ASSY, BATTERY, LH

main53704-22010iJZX81..TWT199008-199210

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-22010iSX80..KYO;GX81,JZX81,LX80,MX83,YX80..GD,GDG,GL,GR,GT,KYO198808-199512

53711BAPRON, FRONT FENDER, FRONT RH

main53711-22400iJZX81..GD;GX81,SX80..GD,GL,GR,GT,LG,STD198808-199512

sub53711-22420

main53711-22410iJZX81,SX80..GDG,GT,KYO;GX81,LX80,MX83,YX80..GDG,GL,GR,KYO198808-199512

W(*66)

53712BAPRON, FRONT FENDER, FRONT LH

main53712-22340iJZX81..TWC;GX81,LX80,MX83,SX80,YX80198808-199512

main53712-22350iJZX81..TWT199008-199210

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-22080iGX81,LX80,MX83,SX80,YX80198808-199008

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53734PATCH, FRONT FENDER APRON, NO.4

main53733-22070iLX80..GL..DSL;GX81,JZX81,MX83,SX80,YX80198808-199302

53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH

main53735-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH

main53736-22050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53737GPLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53738EPLATE, FRONT SPRING SUPPORT, LH

main53738-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53741PLATE, FRONT FENDER APRON WIND GUIDE, RH

main53741-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53742PLATE, FRONT FENDER APRON WIND GUIDE, LH

main53742-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53747PLATE, AIR SEALED, RH

main53747-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53748PLATE, AIR SEALED, LH

main53748-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53763ABRACKET, AIR CLEANER INLET MOUNTING

main53763-22010iGX81,JZX81,MX83,SX80198808-199512

sub53763-43030

53768PLATE, IGNITION COIL MOUNTING

main53768-22030iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

53791COVER, COOL AIR INTAKE HOLE

main53791-22030iLX80,YX80198808-199008

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53795-22040iGX81,LX80;SX80..GL,GR,STD198808-198809

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53796-22030iGX81,LX80;SX80..GL,GR,STD198808-198809

55101PANEL SUB-ASSY, DASH

main55101-22810iSX80..GL,GR198808-199512

sub55101-2A270

main55101-22820iLX80..GL,GR198808-199308

sub55101-2A290

main55101-22830iYX80..GL198808-199512

sub55101-2A300

main55101-22840iSX80..KYO198808-199512

sub55101-2A320

main55101-22850iLX80..KYO198808-199302

sub55101-2A330

main55101-22860iYX80..KYO198808-199512

sub55101-2A340

main55101-22890iYX80..GL198808-199302

sub55101-2A310

main55101-2A030iGX81,JZX81..TWT198808-199210

sub55101-2A240

main55101-2A050iGX81,JZX81,MX83..HTWC,SPC,TWC198808-199512

sub55101-2A250

main55101-2A180iSX80..STD198808-199302

sub55101-2A280

55129COVER, DASH PANEL HOLE

main55129-22010×2iGX81,JZX81,LX80,MX83,SX80,YX80199008-199512

55210INSULATOR ASSY, DASH PANEL

main55210-22260iGX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG,STD198808-199008

main55210-22280iSX80,YX80..KYO199304-199512

55223AINSULATOR, DASH PANEL, OUTER

main55223-22060iGX81,JZX81,MX83..GD,GDG,GT198808-199512

main55223-22070iLX80198808-199308

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-22160iYX80..(3FC,5F)..GL;GX81,LX80,MX83,SX80;JZX81,YX80..GD,GDG,KYO198808-199512

main57104-22190iJZX81..TWT199008-199210

main57104-22220iYX80..4FC..GL199302-199512

57141SUPPORT, FRONT BUMPER ARM, RH

main57141-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

57142SUPPORT, FRONT BUMPER ARM, RH

main57141-22020iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-22090iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-22070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199302

57165BREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH

main57165-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

57166AGUSSET, FLOOR MEMBER, LH

main57166-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

7402

76609MUDGUARD SUB-ASSY, FRONT SIDE MEMBER

main76609-22010iGX81,JZX81,LX80,MX83,SX80,YX80..ATM198808-199512

8202

8718

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030

9011906352

main90119-06352

9011910476

main90119-10476

9011910515

main90119-10515

9017906178

main90179-06178

9033330002

main90333-30002

9046712129

main90467-12129

9048033011

main90480-33011

9048040010

main90480-40010

9095001060

main90950-01060

9095001109

main90950-01109

9095001150

main90950-01150

9095001181

main90950-01181

9095001310

main90950-01310

9095001326

main90950-01326

9095001338

main90950-01338

9095001580

main90950-01580

9095001602

main90950-01602

91645C0618

main91645-C0618

91651A0612

main91651-A0612

9166140612

main91661-40612

9461310300

main94613-10300

9511380309

main95113-80309

72 parts on this diagram · 1 diagram in section
